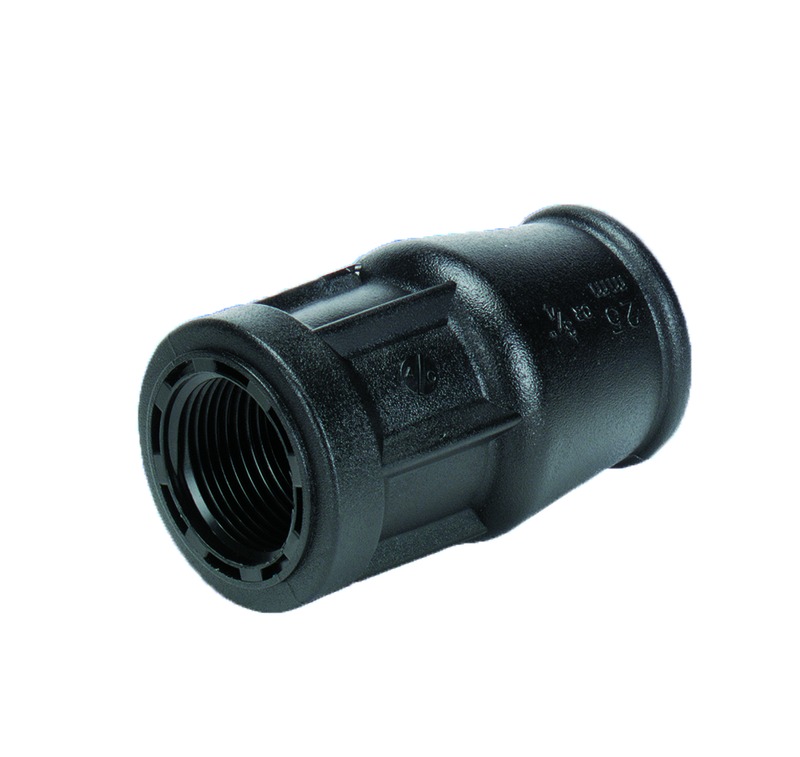

COUPLING TALBOT 63x2 INTERNAL THREAD PP
Product code
1943763
Talbot push-fit connectors are quick and easy to use. They have no tightening nuts, so tightening cannot be overlooked. The tube is pushed into the connector, causing the compression ring and O-ring seal to automatically tighten around the tube. As pressure increases, the O-ring seal is compressed against the compression ring due to the connector's shape, further improving the seal's integrity. Talbot push-fit connectors are manufactured from high-quality materials, making them extremely durable with excellent corrosion resistance. Connectors are available in sizes from 25 to 63 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Material connection 2Polypropylene (PP)
ShapeStraight
Outer pipe diameter connection 163 mm
Nominal diameter connection 22 inch (50)
Connection 2Internal thread metric
Material sealingEthylene-propylene diene monomer rubber (EPDM)
High tensile strengthyes
Max. operating pressure at 20 °C16 bar
With sealing rings/gasketsyes
Product codes
SAPABI981
HPAC1943763
PLC1943763
GTIN/EAN5715330362036
Manufacturer part number19070632002601
Vendor material number19070632002601
Basic information
Package measurements (L x W x H)135 x 90 x 90 mm
Package volume1.094 l
Package weight0.381 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC40141720
BrandTALBOT
VendorAVK FINLAND OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)1
RecyclableYes
