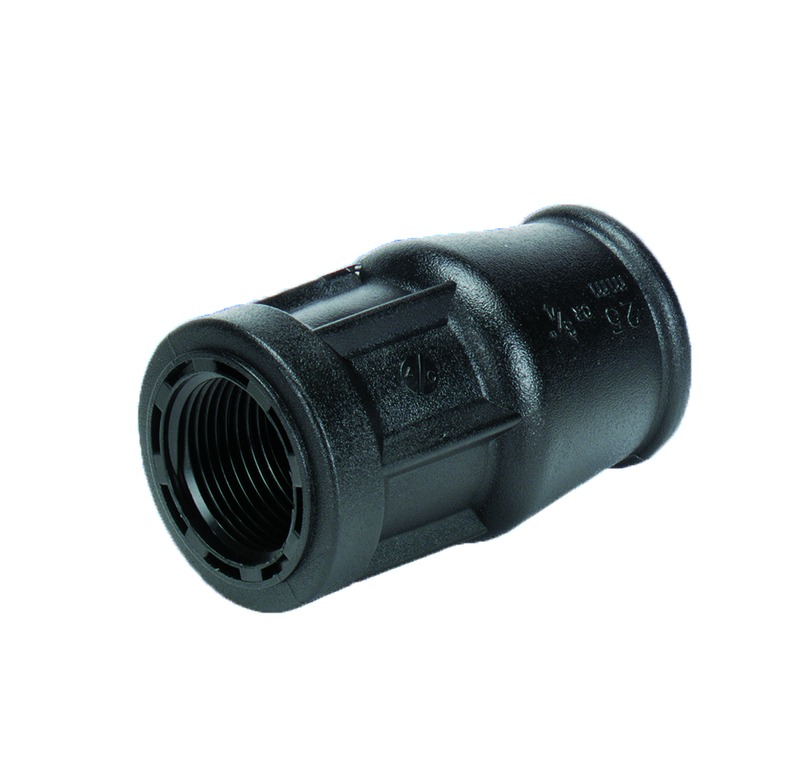

COUPLING TALBOT 40x1 1/4 INTERNAL THREAD PP
Product code
1943740

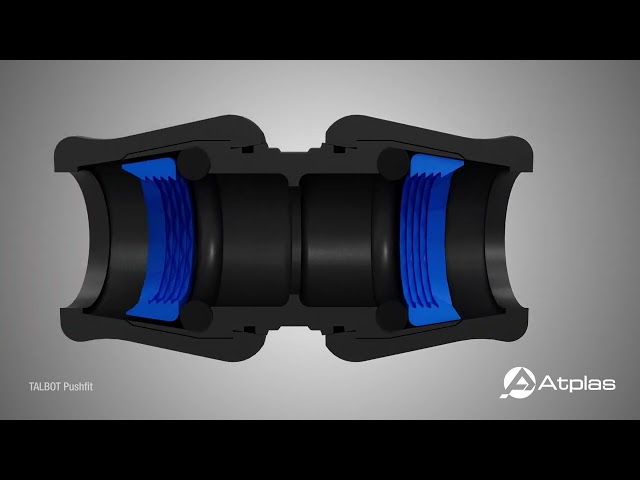

Talbot push-fit connectors are quick and easy to use. They have no tightening nuts, so tightening cannot be overlooked. The tube is pushed into the connector, causing the compression ring and O-ring seal to automatically tighten around the tube. As pressure increases, the O-ring seal is compressed against the compression ring due to the connector's shape, further improving the seal's integrity. Talbot push-fit connectors are manufactured from high-quality materials, making them extremely durable with excellent corrosion resistance. Connectors are available in sizes from 25 to 63 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Material connection 2Polypropylene (PP)
ShapeStraight
Outer pipe diameter connection 140 mm
Nominal diameter connection 21 1/4 inch (32)
Connection 2Internal thread metric
Material sealingEthylene-propylene diene monomer rubber (EPDM)
High tensile strengthyes
Max. operating pressure at 20 °C16 bar
With sealing rings/gasketsyes
Product codes
SAPABI979
HPAC1943740
PLC1943740
GTIN/EAN5715330361992
Manufacturer part number19070401142601
Vendor material number19070401142601
Basic information
Package measurements (L x W x H)100 x 60 x 60 mm
Package volume0.36 l
Package weight0.27 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC40141720
BrandTALBOT
VendorAVK FINLAND OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)1
RecyclableYes
