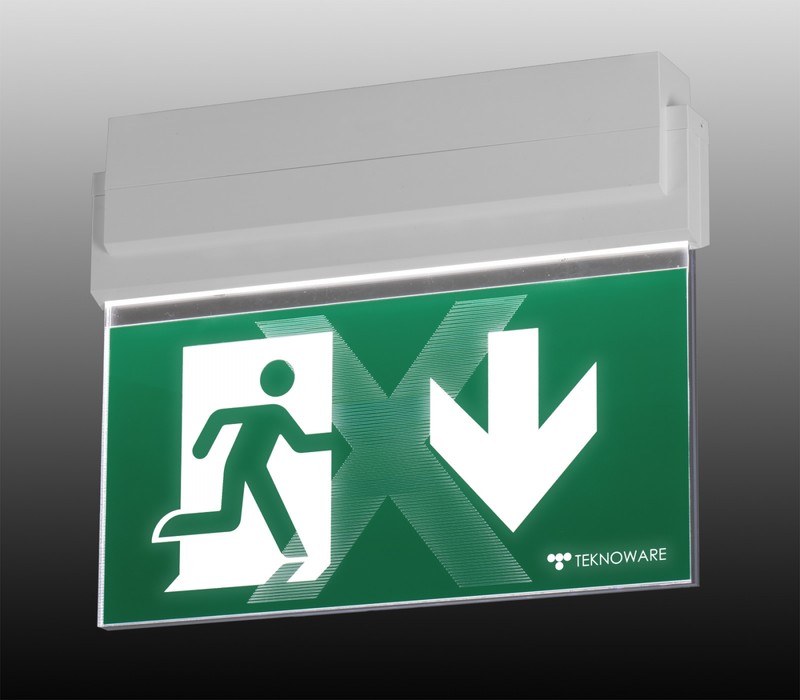

EXIT LIGHT OPAS 80 TWT8051WKX 220-240V,50/60HZ,DC
Product code
4148655

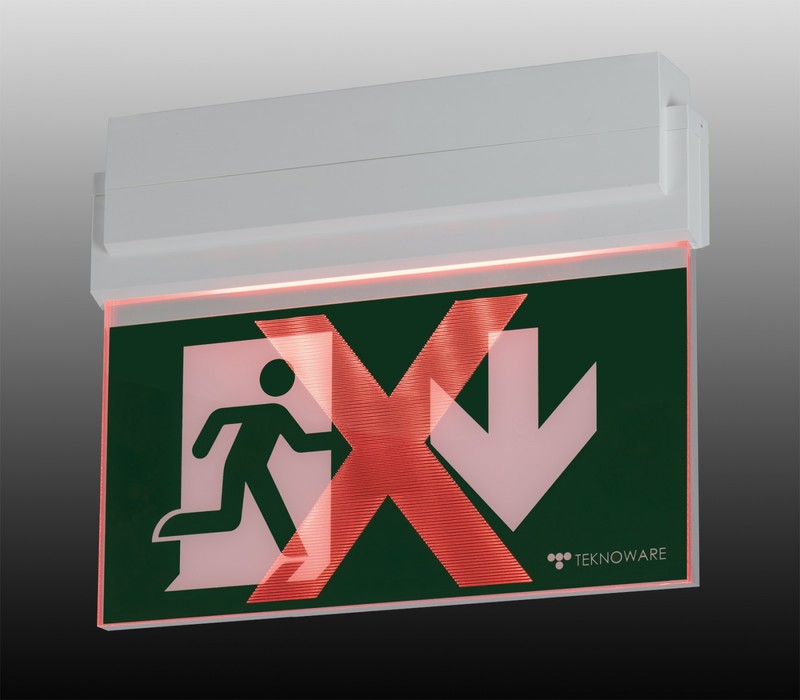

Adaptive guidance light Teknoware Opas 80X can be programmed to warn of a route that has become hazardous. Under normal conditions, Opas 80X functions like any standard guidance light.
Opas 80X is part of the versatile Opas 80 product family. Thanks to high-quality electronics and powerful LEDs, the light's guidance pattern appears bright and uniform in all conditions. The sleek, lens-covered light is particularly well suited for representative spaces and, due to its IP43 enclosure rating, also for humid environments. Opas 80X is available for central acoustic systems.
The single-sided Opas 80X light comes with ceiling and wall mounting as standard. Installation is quick and easy using a separate mounting component to which the power supply is connected. The light can also be recessed using a separate recessed frame. Other mounting options are available depending on the model with additional accessories. The guidance light has a five-year product warranty. The standard color of the light is white (RAL 9003); other RAL colors available on request. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Emergency luminaire (EC001957)
Mounting methodWall surface mounting/ceiling surface mounting
FunctionEscape route signage
With pictogramno
Lamp typeLED not exchangeable
Housing materialPlastic
Housing colourWhite
Voltage typeAC/DC
Nominal voltage220-240 V
Type of control gearLED operating device current-controlled
Exchangeable control gearno
Degree of protection (IP)IP44
Protection class according to IEC 61140II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24yes

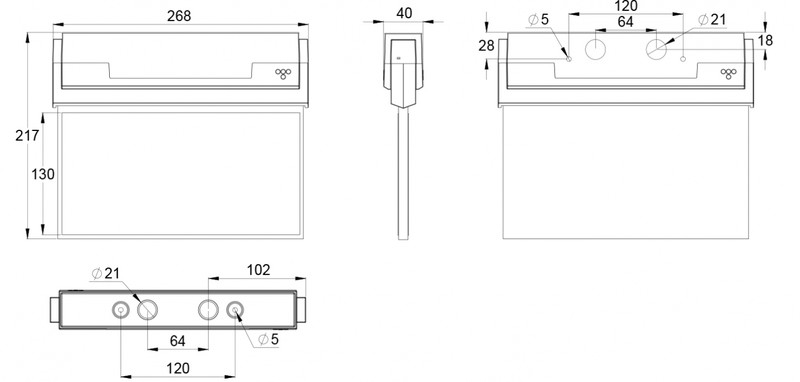

Width40 mm
Height/depth185 mm
Product codes
SAPDJJ532
STK4148655
PLC4148655
GTIN/EAN6438045027296
Manufacturer part numberTWT8051WKX
Vendor material numberTWT8051WKX
Basic information
Package measurements (L x W x H)268 x 40 x 185 mm
Package volume1.983 l
Package weight0.69 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111708
BrandTEKNOWARE
VendorTEKNOWARE EMERGENCY LIGHTING OY
The country of origin stated by the supplierFinland
