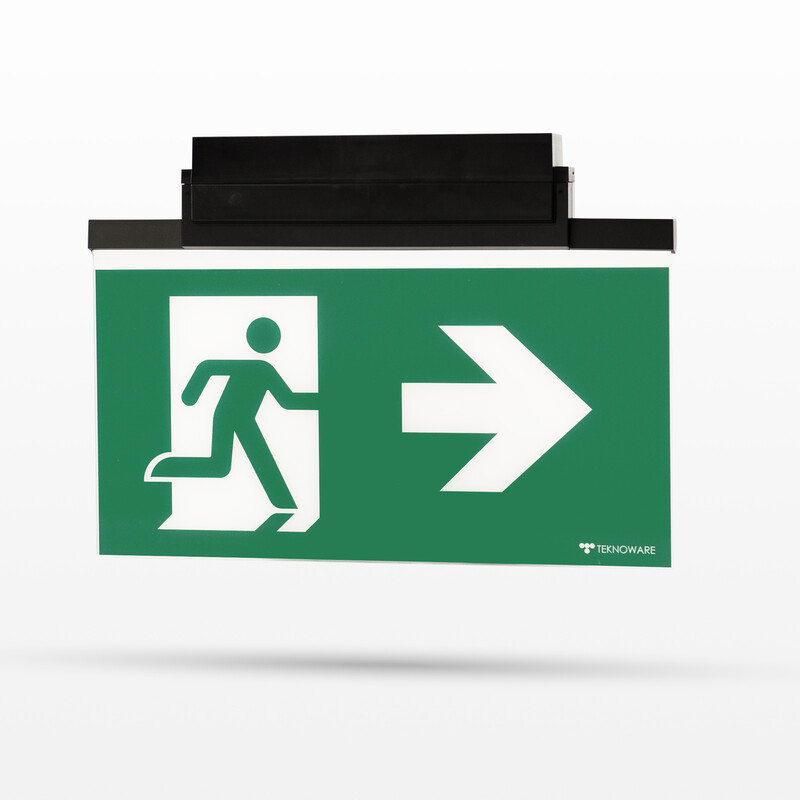

EXIT LIGHT OPAS 81 TWT8171WT 24-230 VAC/DC IP44 B
Product code
4148774
Guide 81 is an innovative sign light equipped with a light panel. It combines cutting-edge technology with modern lighting design. The Guide 81 TWT8171W model is available with two sign sizes for viewing distances of 40 and 60 meters. <br />
Exceptionally evenly illuminated light panels, low power consumption, and the light's sleek design are the result of Teknoware's expert electronics and product design. The light can be used as single- or double-sided, and in recessed or surface mounting. The Guide 81 light is easy and quick to install with a separate mounting unit that also connects the power supply. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Emergency luminaire (EC001957)
Mounting methodSurface mounting/recessed mounting
FunctionEscape route signage
Suitable for labelling typeAcrylic plate
Type of indicatorSingle/double-sided
With pictogramno
With remote switch connectionno
Lamp typeLED not exchangeable
With light sourceyes
Housing materialPlastic
Housing colourBlack
Voltage typeAC/DC
Nominal voltage220-240 V
Type of control gearLED operating device current-controlled
Exchangeable control gearno
Light distributorNone
Product codes
SAPCYZ420
STK4148774
PLC4148774
GTIN/EAN6438045028644
Manufacturer part numberTWT8171WT
Vendor material numberTWT8171WT
Basic information

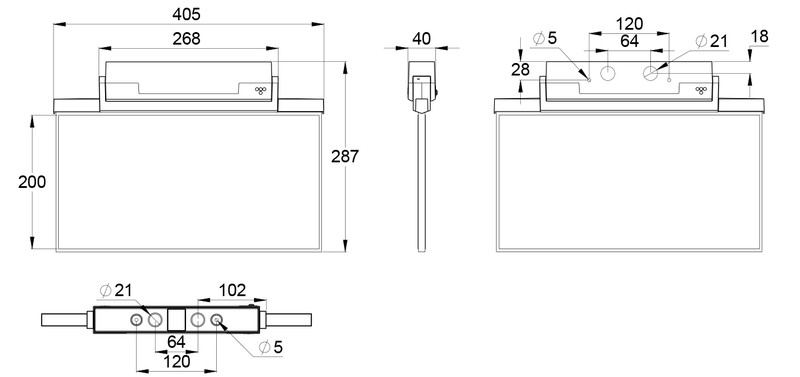

Package measurements (L x W x H)405 x 40 x 287 mm
Package volume4.649 l
Package weight1.4 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111708
BrandTEKNOWARE
VendorTEKNOWARE EMERGENCY LIGHTING OY
The country of origin stated by the supplierFinland
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)18.2
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
