EXIT LIGHT OPAS 90 TWT9051WKR 220-240V,50/60HZ,DC

Product code
4244166

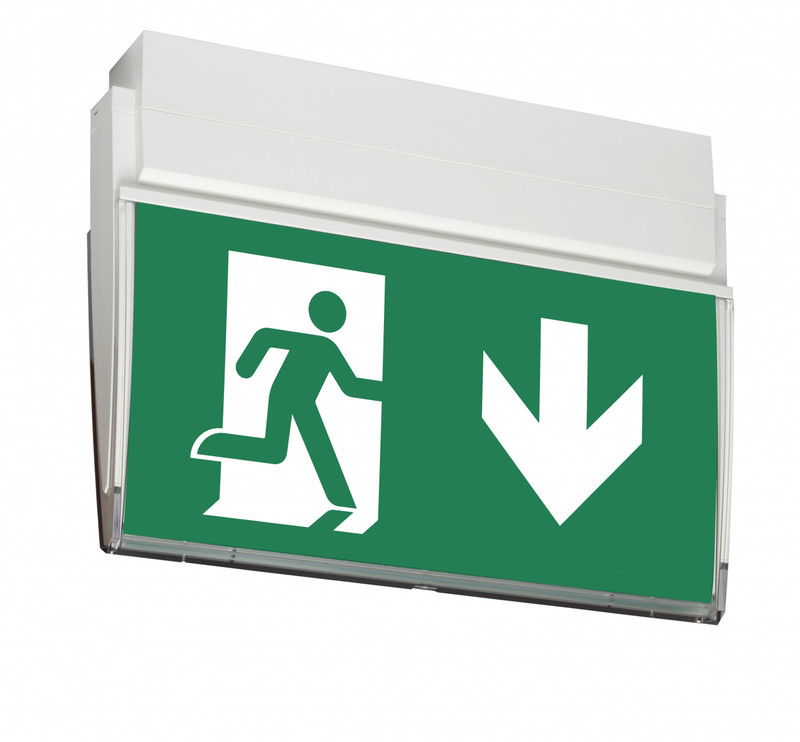

Opas 90 is a guidance light that combines cutting-edge technology with modern lighting design. The Opas 90 TWT9051WKR is dimmed during normal operation to avoid disturbing glare in dim environments such as movie theaters. Thanks to high-quality electronic, optical, and mechanical design, the light features evenly illuminated guidance symbols and low power consumption. Changing the guidance panels is easy—simply insert the panel into place. The Opas 90 guidance light can be easily mounted on the ceiling or wall and can be used as single- or double-sided, either recessed or surface-mounted. Opas 90 is especially easy and quick to install with a separate mounting component that also connects the power supply. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Emergency luminaire (EC001957)
Mounting methodWall surface mounting/ceiling surface mounting
FunctionEscape route signage
With pictogramno
Lamp typeLED not exchangeable
Housing materialPlastic
Housing colourWhite
Voltage typeAC/DC
Nominal voltage220-240 V
Type of control gearLED operating device current-controlled
Exchangeable control gearno
Degree of protection (IP)IP44
Protection class according to IEC 61140II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24yes
Width40 mm
Height/depth202 mm

Product codes

SAPDJJ485
STK4244166
PLC4244166
GTIN/EAN6438045024912
Manufacturer part numberTWT9051WKR
Vendor material numberTWT9051WKR

Basic information

Package measurements (L x W x H)268 x 40 x 202 mm
Package volume2.165 l
Package weight0.44 kg
Base uniteach
Package units1
Package contents
UNSPSC39111708
BrandTEKNOWARE
VendorTEKNOWARE EMERGENCY LIGHTING OY
The country of origin stated by the supplierFinland

Documents (5)

Environment and safety

Manufacturer

NameTeknoware Oy
Postal addressIlmarisentie 8, 15200 Lahti
