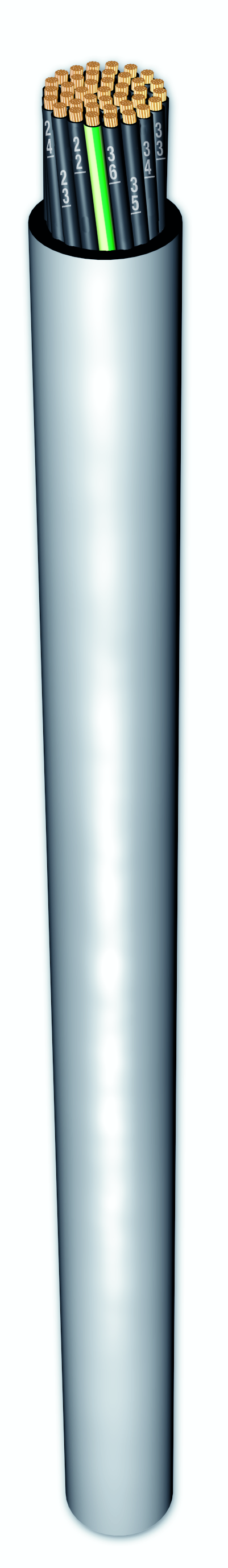

CONTROL CABLE MMO 7x1,5 K6/500
Product code
0481102
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Nominal cross section conductor1.5 mm²
Number of cores7
Core colourSeveral
Screenno
Armouring/reinforcementNone
Material outer sheathPolyvinyl chloride (PVC)
Colour outer sheathWhite
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approximate11.6 mm
Nominal voltage U0450 V
Nominal voltage U750 V
Product codes
SAPAMX765
STK0481102
PLC0481102
GTIN/EAN6410004811023
Manufacturer part numberI2P003070301W
Vendor material number0481102
Basic information
Package measurements (L x W x H)1000 x 6 x 6 mm
Package volume0.036 l
Package weight0.212 kg
Base unitMeter
Package units1 / 500
Package contents–
UNSPSC26121603
BrandTELE-FONIKA KABLE
VendorTELE-FONIKA KABLE S.A
Documents (1)
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.3568
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
