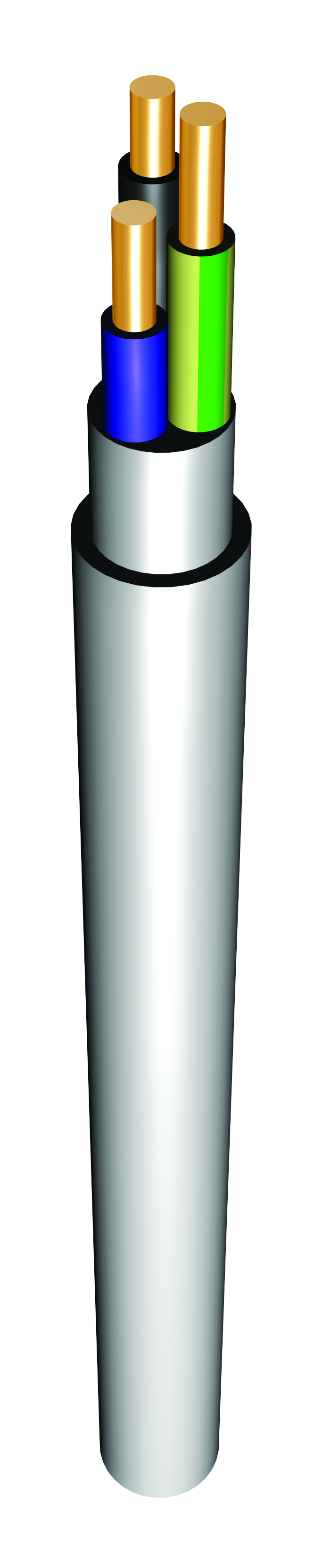

INSTALLATION CABLE MMJ 5G2,5 B150
Product code
0481014
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Nominal cross section conductor2.5 mm²
Number of cores5
Core colourSeveral
Screenno
Material outer sheathPolyvinyl chloride (PVC)
Colour outer sheathWhite
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approximate12.2 mm
Nominal voltage U0300 V
Nominal voltage U500 V
Product codes
SAPAEW953
STK0481014
PLC0481014
GTIN/EAN5900424007980
Manufacturer part numberI2P003050701W
Vendor material number0481014
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.301 l
Package weight0.253 kg
Base unitMeter
Package units150 / 2700
Package contents–
UNSPSC26121641
BrandTELE-FONIKA KABLE
VendorTELE-FONIKA KABLE S.A
Documents (1)
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.6192
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
