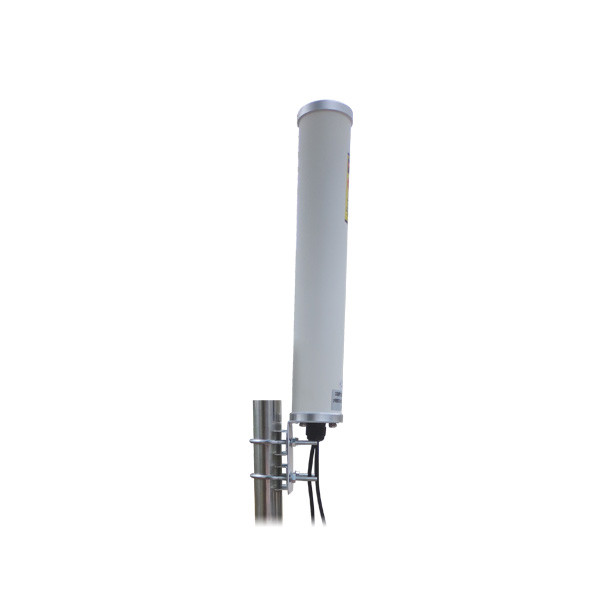

ANTENNA D14738
Product code
7402099
- Affordable and efficient omni-directional MiMo antenna
- 2x 5m cable with SMA male connectors
- Mast or wall mounting. Frequency 698-960/1710-3800 MHz
Gain 4/6 dBi
VSWR ≤ 1.8
Cable length 5m
Connector 2x SMA male
IP rating IP65
Dimensions 370 x 63 mm
Weight 1.1 kg This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Wireless antenna (EC001698)
Suitable for indoor useyes
Suitable for outdoor useyes
Aerial gain6 dBi
Omni directionalyes
PolarizationVertical
Beam angle horizontal360 °
Beam angle vertical18 °
ConnectionSMA
Connection typePlug
With connection cableyes
Connection cable length5 m
Mounting methodPole mounting
Height370 mm
Width63 mm
Depth63 mm
Product codes
SAPDQG060
STK7402099
PLC7402099
GTIN/EAN6416280459560
Manufacturer part numberD14738
Vendor material number7402099
Basic information
Package measurements (L x W x H)595 x 130 x 65 mm
Package volume5.028 l
Package weight0.65 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221703
BrandTELE-TUKKU
VendorTELE-TUKKU OY
