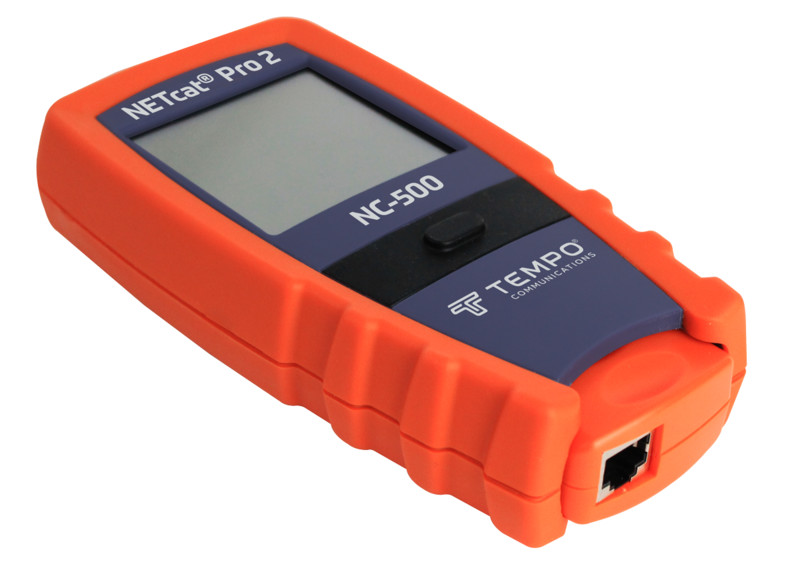

LAN-TESTER NC-500

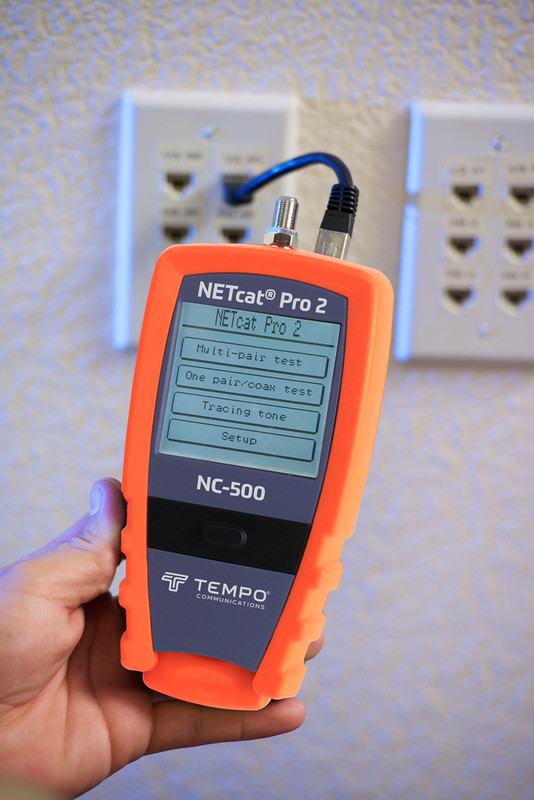

Tempo - NC-500 NETcat Pro2 NETcat® Pro2 is a digital service verification tool for quick and accurate testing of cables, wiring, and network services. When using the backlit touchscreen, NETcat not only tests wiring continuity and correct pair allocation but also measures the length of all copper wires using advanced fast Time Domain Reflectometry (TDR). Additionally, NETcat® Pro2 determines whether network service is available up to Gigabit speeds and displays whether Power over Ethernet (PoE) is in use. When used with the NC-510 accessory kit containing seven expandable remote test modules, NETcat can test coaxial or twisted-pair connectors from the central point, eight at a time. The screen can be operated with a fingertip or the built-in stylus to control and display various tests. Features: • CAT 5/6 (UTP/SFTP) and coaxial cable tester • Measures cable length up to 600 meters • Tracing Tone: Tracing tones can be generated and applied to various wire combinations to facilitate identification. • When connected to a LAN cable with an active device at the other end, available service speeds are identified and displayed as 10M, 100M, or 1G half/duplex. When testing the cable, NETcat also checks for the presence of PoE (Power over Ethernet). • Troubleshooting for telephone, data, and coaxial wiring. • Identifies pairs, shorts, opens, split pairs, breaks, and crossed wires (Wiremap) • Large icons ensure easy operation even with a finger. • Backlit touchscreen. • Sticky note / reminder feature. • Field-replaceable F-connector. • Cable identification using Remote ID units - up to 8 different identifiers, one included at the base of the device, seven additional units available separately in the NC-510 accessory kit. • Troubleshooting and verification in various network types. • Operates on a single 9V battery with low battery indicator. This product description is an automated translation of the original Finnish description.
