OPTICAL TIME DOMAIN REFLECTOM 930XC-20C-APC-SC

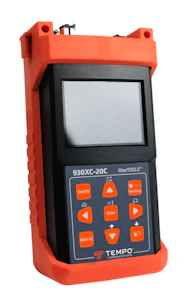

Tempo OTDR Fiber Optic Tester 930XC-20C With an optical power meter and visible light laser, the 930XC OTDR is an easy-to-use, fully featured handheld test instrument capable of accurately locating faults in single-mode or multimode fiber. The 930XC also measures both reflective and non-reflective events in the fiber. Test reports are easily generated using industry-standard SOR files, which can be saved as PDF documents for complete documentation. 930XC-20C APC / SC Features: • Locate faults in fiber links • Measure fiber lengths • Large dynamic range to characterize through high-power components • Easy-to-use "one-button" user interface in "Auto Test" mode • Bellcore GR196 compliant • Optical power meter, stable laser source, and visual fault locator included • Free Trace Viewer documentation software included • Macrobend analysis • Link Viewer - linear Pass/Fail analysis Technical Specifications: Wavelength: 1310/1550nm Dynamic Range: 35dB Dead Zone: 1m Pulse: 5...20us Measurement Range: 0.3km ... 240km Storage: Yes, 1000 measurements Visible Light Laser: -3dBm; 650nm OPM Wavelengths: 850/1300/1310/1490/1550/1625nm OPM Range: +6 ... -70dBm Battery: NiMH; up to 8 hours continuous operation. Weight: 0.87kg Dimensions: 196x100x64mm This product description is an automated translation of the original Finnish description.
