CONTACT FRAME ZCKM1 1S+1AV
Product code
2362745

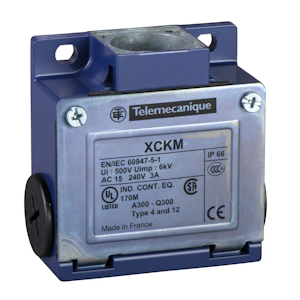

Limit switch body ZCKM, 1NC+1NO, snap action, Pg11
Limit switch body ZCKM, 1NC+1NO, snap action, Pg11. range of product: OsiSense XC - series name: standard format - product or component type: limit switch body - device short name: ZCKM - body type: fixed - product compatibility: XCKM - associated head: ZCKD02, ZCKD029, ZCKD05, ZCKD06, ZCKD08, ZCKD10, ZCKD109, ZCKD15, ZCKD16, ZCKD17, ZCKD21, ZCKD219, ZCKD23, ZCKD239, ZCKD41, ZCKD59, ZCKD81, ZCKD91 - contacts type and composition: 1 NC + 1 NO - contacts material: silver plated contacts. Benefits: .. Applications: ..
Product details
Technical specifications
Width sensor64 mm
Diameter sensor0 mm
Height of sensor64 mm
Length of sensor30 mm
Rated operation current Ie at AC-15, 24 V0 A
Rated operation current Ie at AC-15, 125 V0 A
Rated operation current Ie at AC-15, 230 V3 A
Rated operation current Ie at DC-13, 24 V0 A
Rated operation current Ie at DC-13, 125 V0 A
Rated operation current Ie at DC-13, 230 V0.27 A
Switching functionQuick-break switch
Switching function latchingfalse
Output electronicfalse
Forced openingtrue
Number of safety auxiliary contacts0
Product codes
SAPABU776
PLC2362745
STK2362745
GTIN/EAN3389110646627
Manufacturer part numberZCKM1
Vendor material numberZCKM1
Basic information
Package measurements (L x W x H)85 x 66 x 32 mm
Package volume0.18 l
Package weight0.233 kg
Base uniteach
Package units1 / 20 / 640
Package contents–
UNSPSC39121529
BrandTELEMECANIQUE
VendorTESE DENMARK APS
