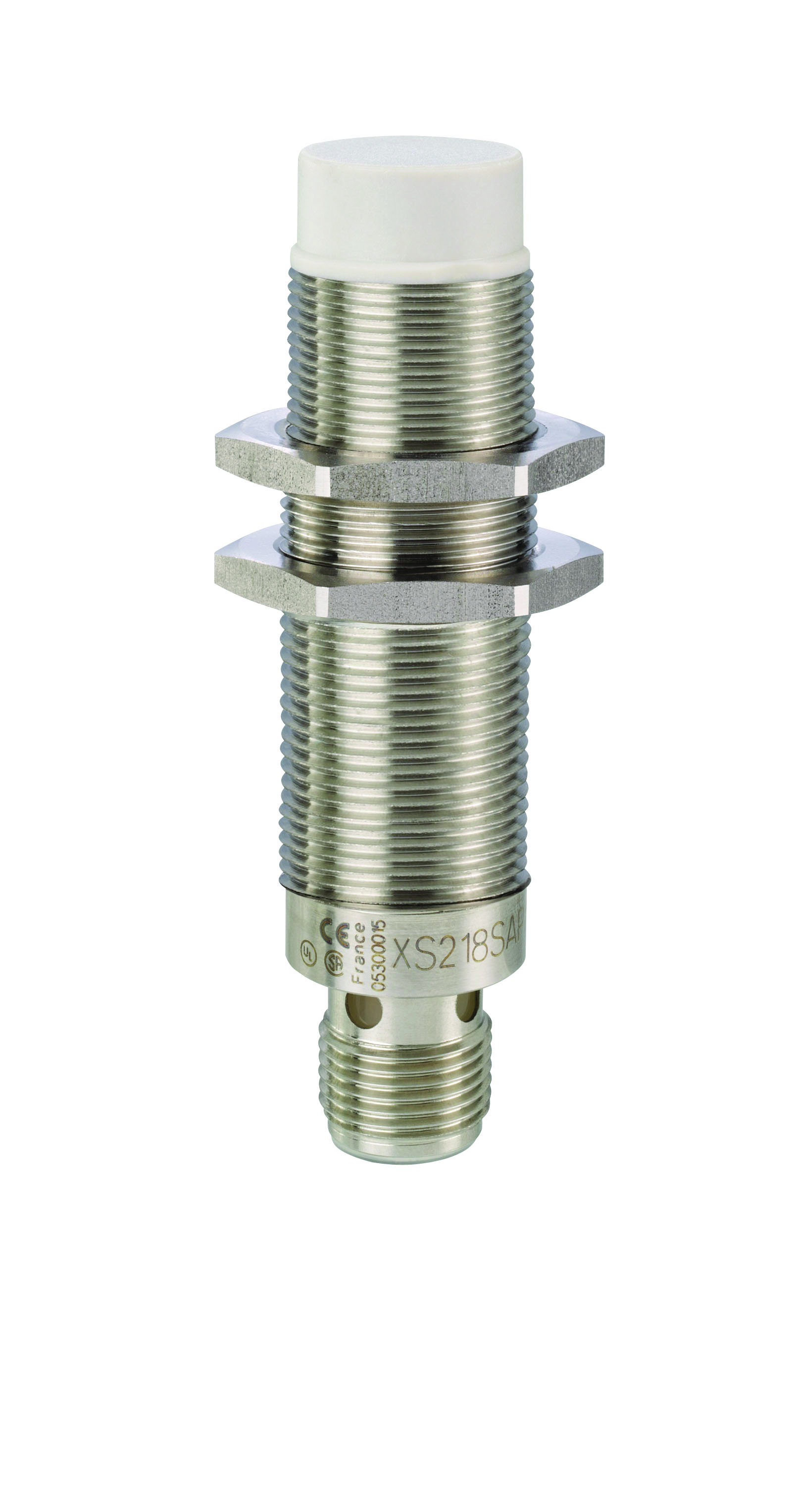

INDUCTIVE DETECTOR XS518B1CAL08M12
Product code
2722632
Inductive sensor XS5 M18, L62mm, brass, Sn5mm, 12..48VDC, M12 0,8m
OsiSense embedded inductive sensor
XS: inductive distance sensing technology for detecting metal objects up to 60 mm away.
XS: inductive distance sensing technology for detecting metal objects up to 60 mm away.
- Available in cubic, rectangular, or flat shapes
- Available in cylindrical M8, 12, 18, 30 sizes with long and short bodies
- International IP69K premium quality
- Available with standard and extended sensing ranges
- Comply with international standards CE, UL, CSA, CCC; CTick, TÜV
- AC/DC power supply
Product details
Technical specifications
Product class (ETIM)Inductive proximity switch (EC002714)
Length of sensor64.6 mm
Diameter sensor18 mm
Mechanical mounting condition for sensorConcise
Switching distance5 mm
Suitable for safety functionsno
Type of electric connectionConnector M12
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs1
Number of protected contact energized outputs0
Type of actuationMetallic Target
Type of interfaceNone
Type of interface for safety communicationNone
Construction type housingCylinder, screw-thread
Coating housingNickel-plated
Product codes
SAPACP518
STK2722632
PLC2722632
GTIN/EAN3389110405415
Manufacturer part numberXS518B1CAL08M12
Vendor material numberXS518B1CAL08M12
Basic information
Package measurements (L x W x H)41 x 64 x 95 mm
Package volume0.249 l
Package weight0.08 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandTELEMECANIQUE
VendorTMSS DENMARK APS
