LIMIT SWITCH LS PLA ROL LEVER NC+NO SNAP 1M

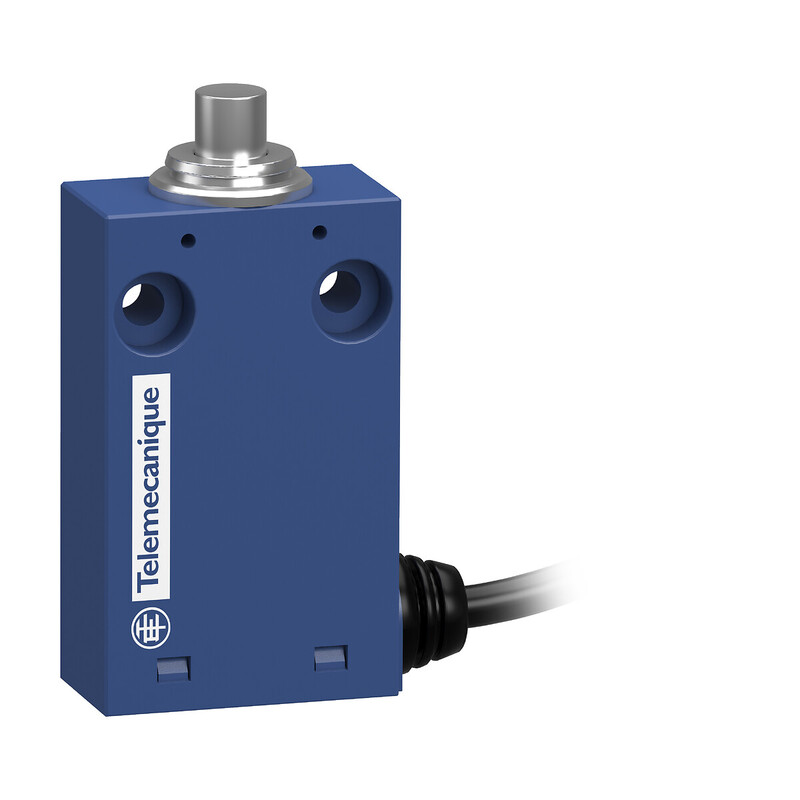

This product is part of the XC Standard series, which offers limit switches. A limit switch is a device that converts mechanical motion into an electrical control signal. This limit switch is equipped with a metal plunger actuator. Its actuator movement is linear. This cost-effective, durable, and compact limit switch is designed for medium-duty applications. This pre-wired limit switch features a PvR, 1 m long, side-entry cable (diameter 4.2 mm). It is rated for IP66 and IP67 water resistance and IK04 impact resistance. It has 1 normally closed + 1 normally open, snap-action contacts with positive opening operation, and provides switch operation at the head. The XCMH2110L1 switch has a plastic miniature housing measuring 30 mm (width) x 16 mm (depth) x 50 mm (height), a Zamac head, and a PVC cable. It weighs 0.064 kg. It is intended for moving equipment and all industrial machine applications such as lifting, material handling, conveying, packaging, etc. This product is certified by UL, cULus, and UKCA. It complies with CE, EN/IEC 60947-5-1, UL 508, and CSA C22-2 No. 14 standards. This miniature limit switch has 2 mounting holes, diameter 4.2 mm, and a flexible cable for easier installation. XCMH limit switches are designed to be durable in miniature size. Telemecanique sensor limit switches are ideal for industrial environments. They are precise, durable, reliable, easy to install, and offer high repeatability. This product description is an automated translation of the original Finnish description.
