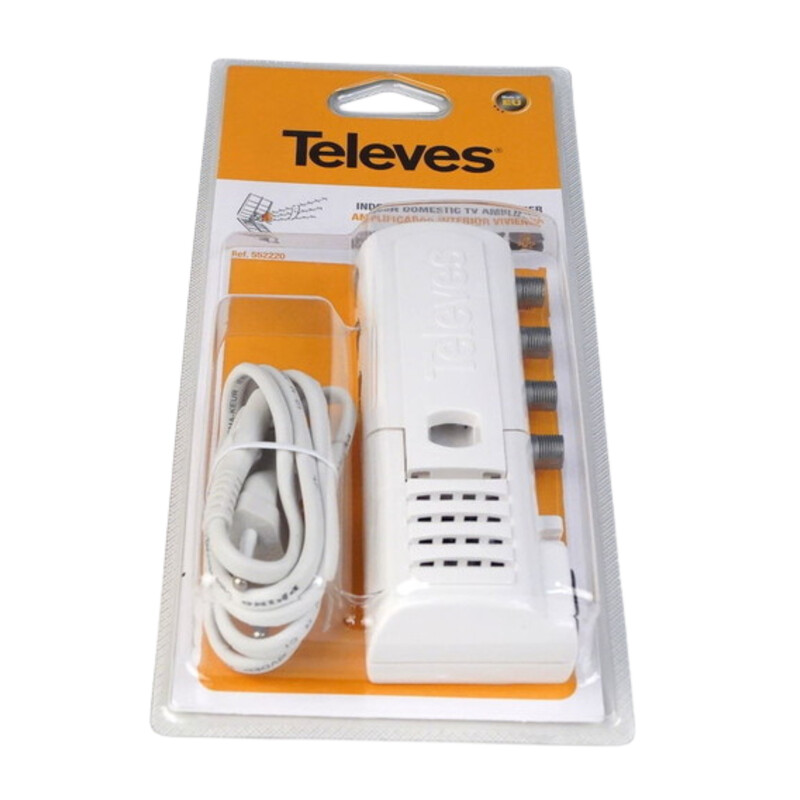

AMPLIFIER FOR APARTMENT LTE700 1IN, 3OUT 14/20DB

Televes high-quality T552220 antenna amplifier for detached houses, cottages, or apartments with 2+1 outputs.

2 outputs for two antenna socket lines and 1 output for one TV. With the Televes low-power amplifier, it is easy to fix interference caused by signal attenuation in the internal network.

If the signal quality from the antenna is already weak, a better antenna or mast amplifier is required.



FEATURES

• High-quality low-power amplifier
• F-female connectors
• Integrated LTE700 filter.
• 2 outputs for two antenna socket lines and 1 output for one TV.
• Gain TV 14 dB and branches 20 dB.
• Adjustable -12 dB. Gain can be adjusted between 8-20 dB.
• Low noise - ensures high-quality signal
• 50% lower power consumption than a standard amplifier

TECHNICAL SPECIFICATIONS
Frequency range 47-694 MHz
Gain 20 dB (14 @tv)
Attenuation 12 dB
Noise figure 4 dB
Output level >106 dBuV
Mains voltage 230 V ± 10%
Power consumption < 2 W
Enclosure class IP20 This product description is an automated translation of the original Finnish description.
