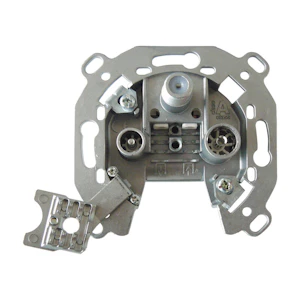

ANTENNA BOX END OUTLET TRIPLE FM/TV/SAT
Product code
7552157
Fully shielded, terminating antenna enclosure with high-quality F and IEC connectors. Two standard IEC connectors for TV and radio, and an F connector for satellite tuner. Quick and reliable spring connectors ensure secure contact. DOCSIS 3.0 compatible. Technical specifications: • Attenuation IEC male 47-862 MHz: 4.5 dB • Attenuation IEC male 950-2200 MHz: >9 dB • Attenuation IEC female 47-862 MHz: 4.5 dB • Attenuation IEC female 950-2200 MHz: >9 dB • Attenuation F male 47-862 MHz: >6 dB • Attenuation F male 950-2200 MHz: 4 - 1.5 dB This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Antenna socket box (EC000439)
ModelMultimedia end box
Mounting methodOther
Number of modules (module system)1
CoverNone
Number of outlets3
Suitable for cable modemyes
Through loss at 860 MHz1 dB
Through loss at 2150 MHz0 dB
Suitable for remote power supplyyes
Type of fasteningMounting with screw
ColourGrey
Surface protectionOther
Surface finishingMatt
MaterialMetal
Material qualityAluminium
Product codes
SAPCKX869
STK7552157
PLC7552157
GTIN/EAN8424450140710
Manufacturer part numberT5246
Vendor material numberT5246
Basic information
Package measurements (L x W x H)70 x 70 x 38 mm
Package volume0.147 l
Package weight0.95 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC43221727
BrandTELEVES
VendorFINNSAT OY
