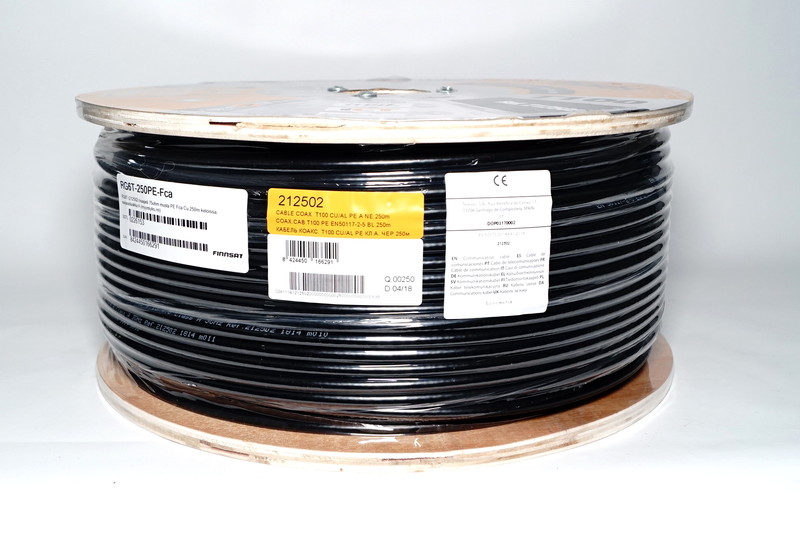

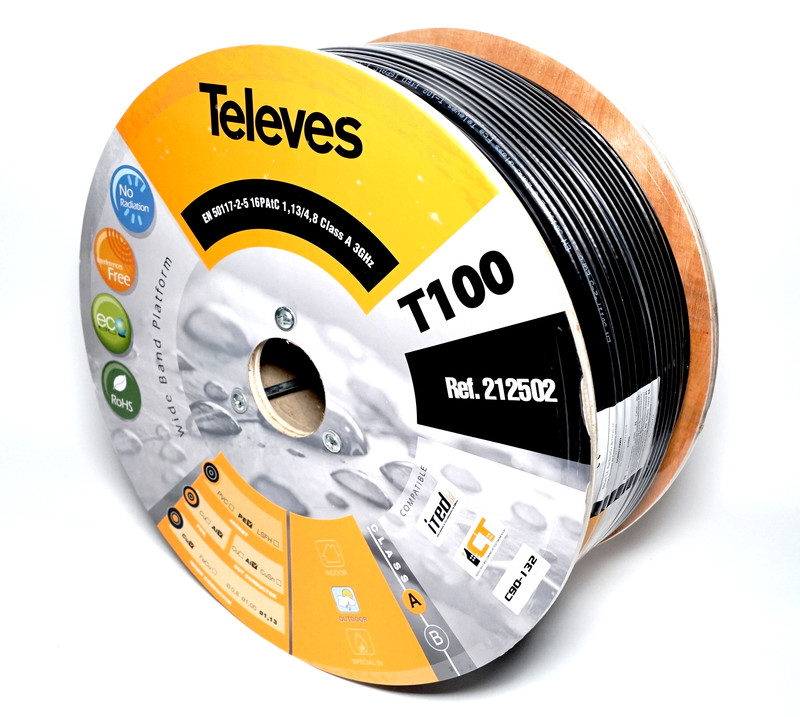

ANTENNA CABLE RG6T 13dB/500MHz 250m PE Fca
Product code
0226227
RG6T-250PE-Fca (212502) is a professional-grade coaxial cable designed for outdoor installation.
Distribution networks are increasingly burdened by interference signals originating from LTE, 3G, and 4G networks. This requires high shielding attenuation from coaxial cables. Shielding class A.
Technical specifications
Distribution networks are increasingly burdened by interference signals originating from LTE, 3G, and 4G networks. This requires high shielding attenuation from coaxial cables. Shielding class A.
Technical specifications
- Reel size 250m
- Color black
- CPR classification Fca
- Shielding class A

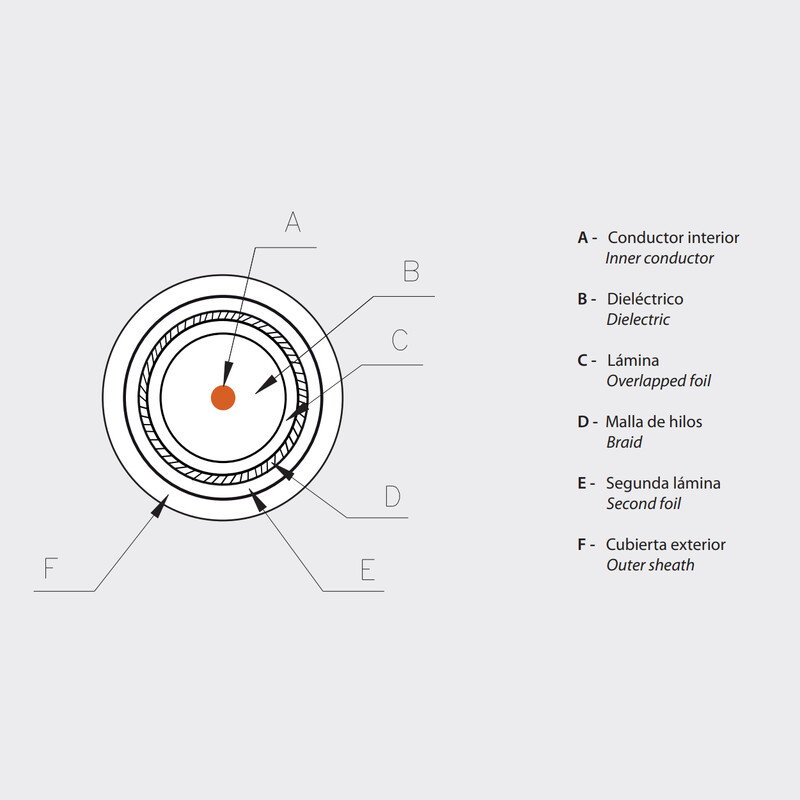

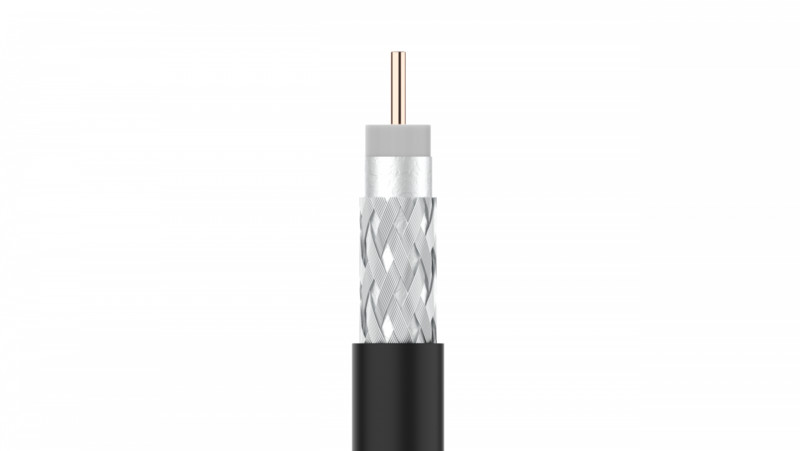

- Inner conductor 1.13 Ø mm, copper
- Insulation 4.70 Ø mm, PE + Al/polyester/Al
- Braid Aluminum
- Outer diameter 6.60 Ø mm
- Outer jacket PE
- Impedance 75 Ohm
- Capacitance 52 pF/m
- Velocity factor 83 (%)
- Minimum bending radius 33mm
Product details
Technical specifications
Product class (ETIM)Coaxial cable (EC000019)
Paired co-axial cableno
2 core co-axial cable (twinax)no
Diameter inner conductor1.13 mm
Inner conductor materialCopper
Inner conductor surfaceBare
Inner conductor categoryClass 1 = solid
Diameter outer conductor4.7 mm
Outer conductor materialAluminium
Outer conductor surfaceTinned
Type of outer conductorFoil + braiding
DielectricPolyethylene, foamed (foam PE)
Number of screen layers2
Armouring/reinforcementNone
With rodent protectionno
Material outer sheathOther
Product codes
SAPCGG855
STK0226227
PLC0226227
GTIN/EAN8424450166291
Manufacturer part number212502
Vendor material numberRG6T-250PE-FCA
Basic information
Package measurements (L x W x H)1000 x 0.001 x 0.001 mm
Package volume0.001 l
Package weight0.001 kg
Base unitMeter
Package units250
Package contents–
UNSPSC26121507
BrandTELEVES
VendorFINNSAT OY
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0064
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
