ANTENNA CABLE RG6T Dca LSNH 100m/reel
Product code
0226196
A+ class indoor antenna cable 75 ohm.
Televes RG6T antenna cable is suitable for apartment cabling from distribution points and internal building cabling.

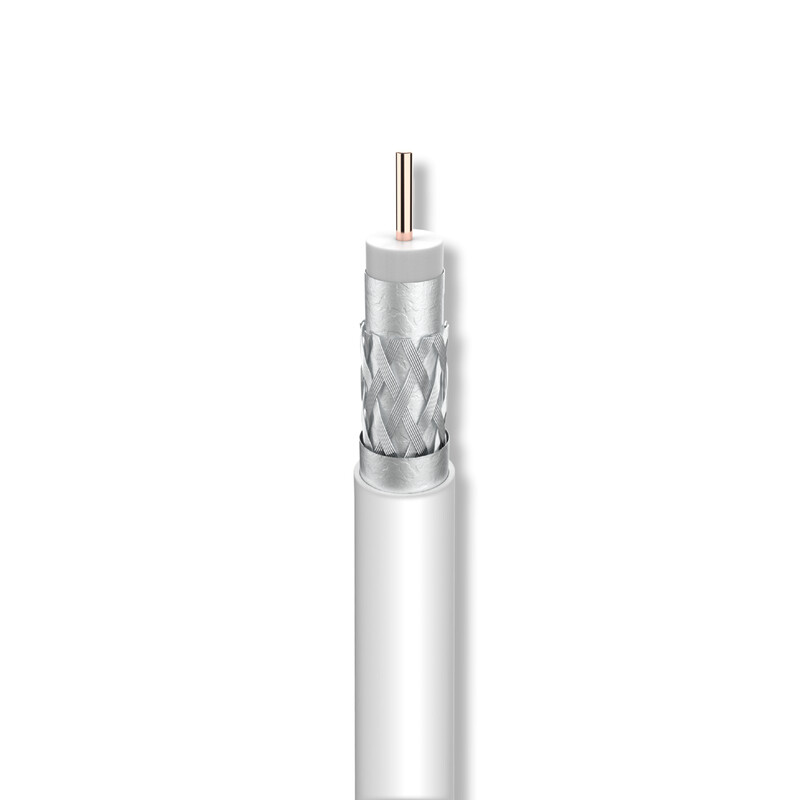

Televes RG6T LSNH Dca is a triple-shielded coaxial cable for professional use.
Distribution networks are increasingly burdened by interference signals originating from LTE, 3G, and 4G networks. This requires high shielding attenuation from coaxial cables. The cable features triple shielding, easily meeting these requirements.
The Finnish Communications Regulatory Authority's regulation 65/2013 M specifies, among other things, the shielding class of coaxial cables. The minimum requirement is class A, meaning 85 dB shielding attenuation in the frequency range 30-1000 MHz. Televes triple-shielded RG6T antenna cables are class A+.
The RG6T LSNH Dca cable meets the CPR fire safety class Dca-s1,d1,a1 requirements. This product description is an automated translation of the original Finnish description.
Televes RG6T antenna cable is suitable for apartment cabling from distribution points and internal building cabling.
- A+ class triple-shielded RG6 indoor cable
- CPR class Dca-s1,d1,a1
- LSFH sheath
- Color white

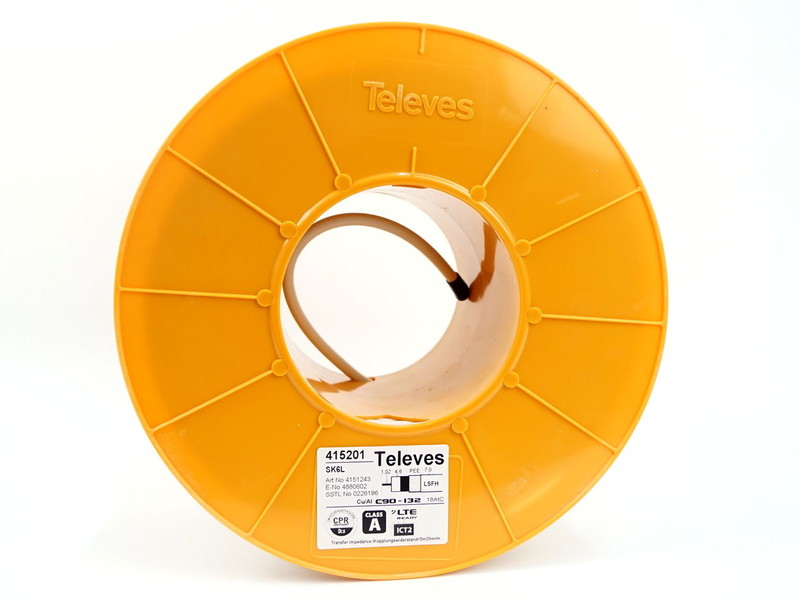

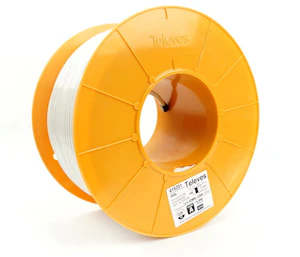

- 100m plastic reel
- 75 ohm
- Dimensions 1.02/4.6/7.06mm
- Attenuation 18.0dB/100m/800MHz
- Fully copper CU inner conductor
- Insulation polyethylene foam

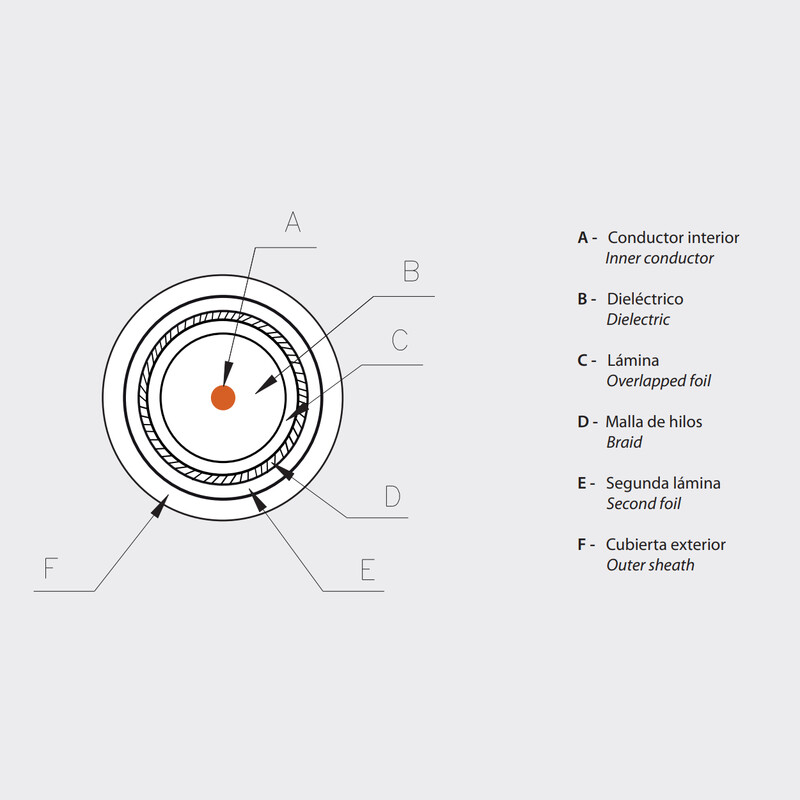

- Outer conductors: Al/Pet/Al - AL braid 58% - Al/Pet/Al
- Shielding attenuation SA: 30-1000MHz ? 95 dB
Televes RG6T LSNH Dca is a triple-shielded coaxial cable for professional use.
Distribution networks are increasingly burdened by interference signals originating from LTE, 3G, and 4G networks. This requires high shielding attenuation from coaxial cables. The cable features triple shielding, easily meeting these requirements.
The Finnish Communications Regulatory Authority's regulation 65/2013 M specifies, among other things, the shielding class of coaxial cables. The minimum requirement is class A, meaning 85 dB shielding attenuation in the frequency range 30-1000 MHz. Televes triple-shielded RG6T antenna cables are class A+.
The RG6T LSNH Dca cable meets the CPR fire safety class Dca-s1,d1,a1 requirements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Coaxial cable (EC000019)
Paired co-axial cableno
2 core co-axial cable (twinax)no
Diameter inner conductor1.02 mm
Inner conductor materialCopper
Inner conductor surfaceBare
Inner conductor categoryClass 1 = solid
Diameter outer conductor4.6 mm
Outer conductor materialAluminium
Outer conductor surfaceBare
Type of outer conductorFoil + braiding
DielectricPolyethylene, foamed (foam PE)
Number of screen layers3
Armouring/reinforcementNone
With rodent protectionno
Material outer sheathOther
Product codes
SAPCNT509
STK0226196
PLC0226196
GTIN/EAN8424450187692
Manufacturer part numberRG6T-100LSNH-Dca
Vendor material numberRG6T-100LSNH-DCA
Basic information
Package measurements (L x W x H)1000 x 7.1 x 7.1 mm
Package volume0.05 l
Package weight0.05 kg
Base unitMeter
Package units100 / 4800 / 9600
Package contents–
UNSPSC26121507
BrandTELEVES
VendorFINNSAT OY
Documents (8)
Certificates
Images
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.32
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
