ANTENNA CABLE T2127 12,8 dB /400 MHz 100m
Product code
0226108
Indoor suitable Class A 75 ohm antenna cable.
Televes T2127 (RG6) antenna cable is suitable for apartment cabling from distribution points and internal building cabling.
Televes T2127 (RG6) Eca is a Class A coaxial cable for professional use.
The Communications Authority regulation 65/2013 M specifies among other things the shielding class of coaxial cables. The minimum requirement is Class A, which means 85 dB shielding attenuation in the frequency range 30-1000 MHz. Televes T2127 antenna cables are Class A.
T2127 Eca antenna cable meets the CPR fire safety class Eca requirements. This product description is an automated translation of the original Finnish description.
Televes T2127 (RG6) antenna cable is suitable for apartment cabling from distribution points and internal building cabling.
- Class A RG6 indoor installation cable
- CPR class Eca
- PVC sheath
- Color white

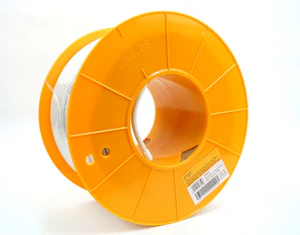

- 100m reel
- 75 ohm

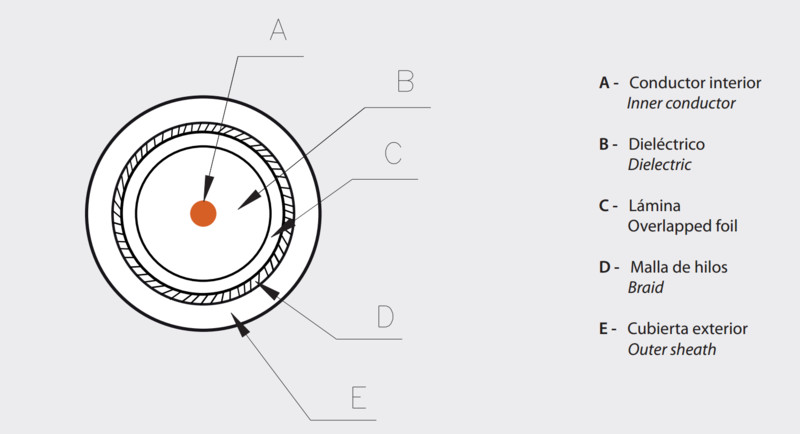

- Dimensions 1.0/4.7/6.7mm
- Attenuation 17.0dB/100m/800MHz
- Inner conductor: Copper-clad steel, CCS
- Insulation: Polyethylene foam
- Outer conductors: Al/Pet - AL braid 77%
- Shielding attenuation SA: 30-1000MHz ? 85 dB
- Reel center hole diameter 116mm
Televes T2127 (RG6) Eca is a Class A coaxial cable for professional use.
The Communications Authority regulation 65/2013 M specifies among other things the shielding class of coaxial cables. The minimum requirement is Class A, which means 85 dB shielding attenuation in the frequency range 30-1000 MHz. Televes T2127 antenna cables are Class A.
T2127 Eca antenna cable meets the CPR fire safety class Eca requirements. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Coaxial cable (EC000019)
Paired co-axial cableno
2 core co-axial cable (twinax)no
Diameter inner conductor1 mm
Inner conductor materialIron
Inner conductor surfaceCopper-plated
Inner conductor categoryClass 1 = solid
Diameter outer conductor4.7 mm
Outer conductor materialAluminium
Outer conductor surfaceBare
Type of outer conductorFoil + braiding
DielectricPolyethylene, foamed (foam PE)
Number of screen layers3
Armouring/reinforcementNone
With rodent protectionno
Material outer sheathPolyvinyl chloride (PVC)
Product codes
SAPCNT511
STK0226108
PLC0226108
GTIN/EAN8424450137598
Manufacturer part numberT2127-100PVC
Vendor material numberT2127-100PVC
Basic information
Package measurements (L x W x H)1000 x 7 x 7 mm
Package volume0.049 l
Package weight0.042 kg
Base unitMeter
Package units100
Package contents–
UNSPSC26121507
BrandTELEVES
VendorFINNSAT OY
Documents (9)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2688
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
