ANTENNA DINOVA BOSS UHF 7/34dBi
Product code
7552797

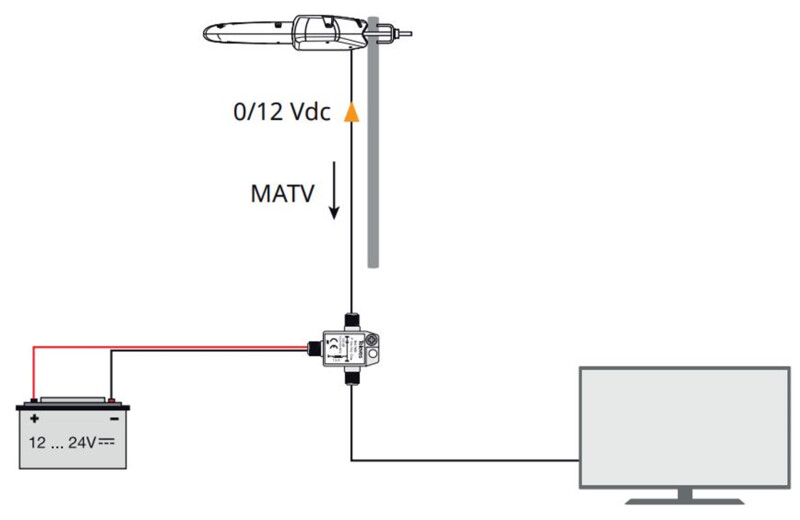

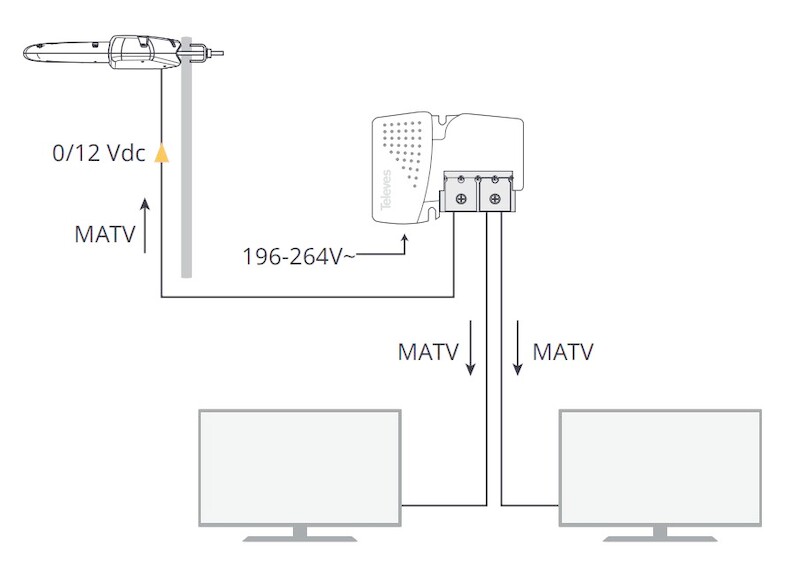

Televes aesthetic T144022-UHF antenna for facades and single-family homes. The package includes a power supply (230VAC) and a mast mount. <br /><br />The DINOVA BOSS T144022 antenna features Televes patented TForce technology for the UHF band. The BOSS antenna can be operated in either automatic or passive mode. In automatic mode, the built-in preamplifier (BOSS-Tech) activates as needed. Automatic mode requires a 12VDC power supply and turns on when the input level falls below 75 dBµV. <br /><br />The antenna includes a built-in LTE700 filter to prevent interference from LTE networks. <br /><br />Extremely high gain: up to 34 dBi in the UHF band. <br /><br /><bTechnical specifications</b <br />
<ul>
<li
Product details
Technical specifications
Product class (ETIM)Terrestrial antenna (EC000416)
ModelTelevision antenna
Channel range21-48
Max. gain34 dB
Length0.412 m
Number of frequency bands1
Frequency band 1470-694 MHz
Omni directionalno
Product codes
SAPDAC016
STK7552797
PLC7552797
GTIN/EAN8424450190739
Manufacturer part numberT144022
Vendor material numberT144022
Basic information
Package measurements (L x W x H)365 x 347 x 79 mm
Package volume10.006 l
Package weight1.54 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221706
BrandTELEVES
VendorFINNSAT OY
