ANTENNA DINOVA BOSS VHF/UHF 29/34DBI
Product code
7552794

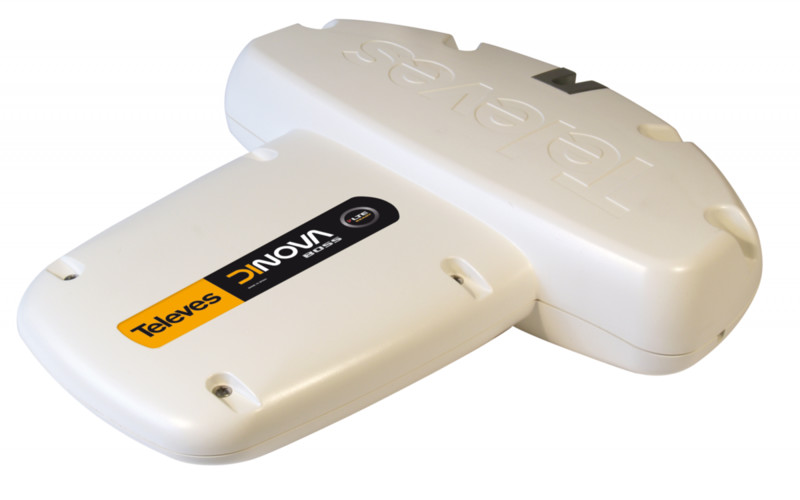

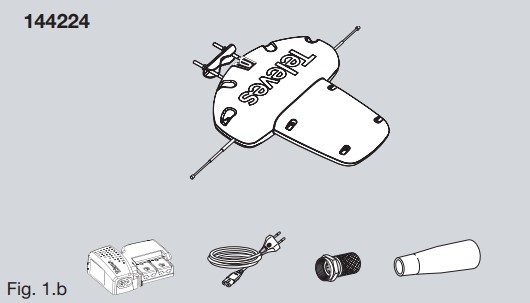

Televes' beautifully designed T144224 VHF+UHF combined antenna for recreational vehicles or cabins. The package includes a power supply (230VAC) and a mast mount.

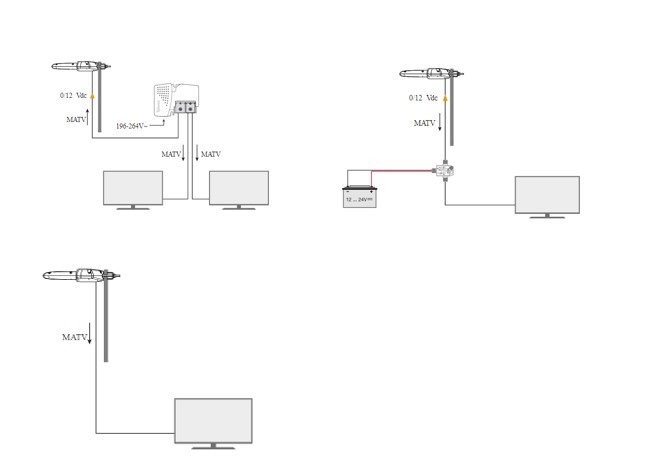

The DINOVA BOSS T144224 antenna features Televes' patented TForce technology for both VHF and UHF bands. The BOSS antenna can be operated in either automatic or passive mode. In automatic mode, the built-in preamplifier (BOSS-Tech) activates as needed. Automatic mode requires a 12VDC power supply and turns on when the input level falls below 75 dBµV.
The modern antenna includes a built-in LTE700 filter to prevent interference from LTE networks.

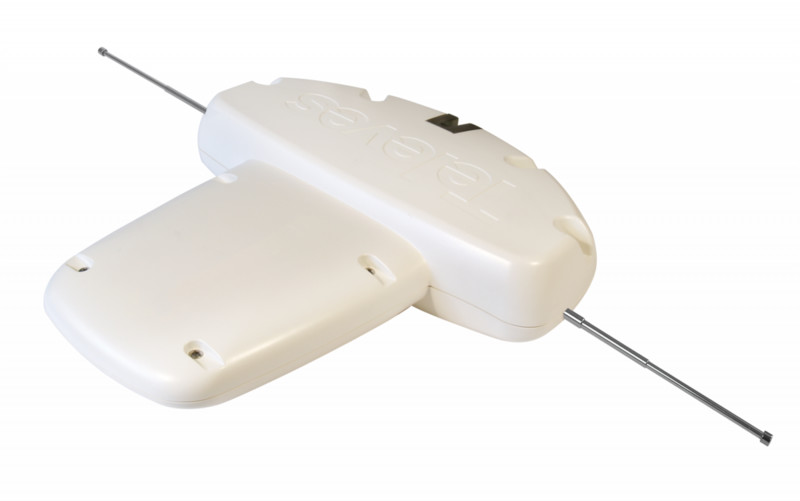

Exceptionally high gain: up to 29 dBi in the VHF band and 34 dBi in the UHF band. VHF reception is further enhanced by easily extendable telescopic reception elements.
This product description is an automated translation of the original Finnish description.
The DINOVA BOSS T144224 antenna features Televes' patented TForce technology for both VHF and UHF bands. The BOSS antenna can be operated in either automatic or passive mode. In automatic mode, the built-in preamplifier (BOSS-Tech) activates as needed. Automatic mode requires a 12VDC power supply and turns on when the input level falls below 75 dBµV.
The modern antenna includes a built-in LTE700 filter to prevent interference from LTE networks.
Exceptionally high gain: up to 29 dBi in the VHF band and 34 dBi in the UHF band. VHF reception is further enhanced by easily extendable telescopic reception elements.
This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Terrestrial antenna (EC000416)
ModelTelevision antenna
Channel range5-48
Max. gain34 dB
Length0.412 m
Number of frequency bands2
Frequency band 1174-230 MHz
Frequency band 2470-694 MHz
Omni directionalno
Product codes
SAPCNV614
STK7552794
PLC7552794
GTIN/EAN8424450215050
Manufacturer part numberT144224
Vendor material numberT144224
Basic information
Package measurements (L x W x H)412 x 795 x 73 mm
Package volume23.91 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221703
BrandTELEVES
VendorFINNSAT OY
