BROADBAND AMPLIFIER 13DB 107DBUV 26MA 470-694MHZ
Product code
7550285

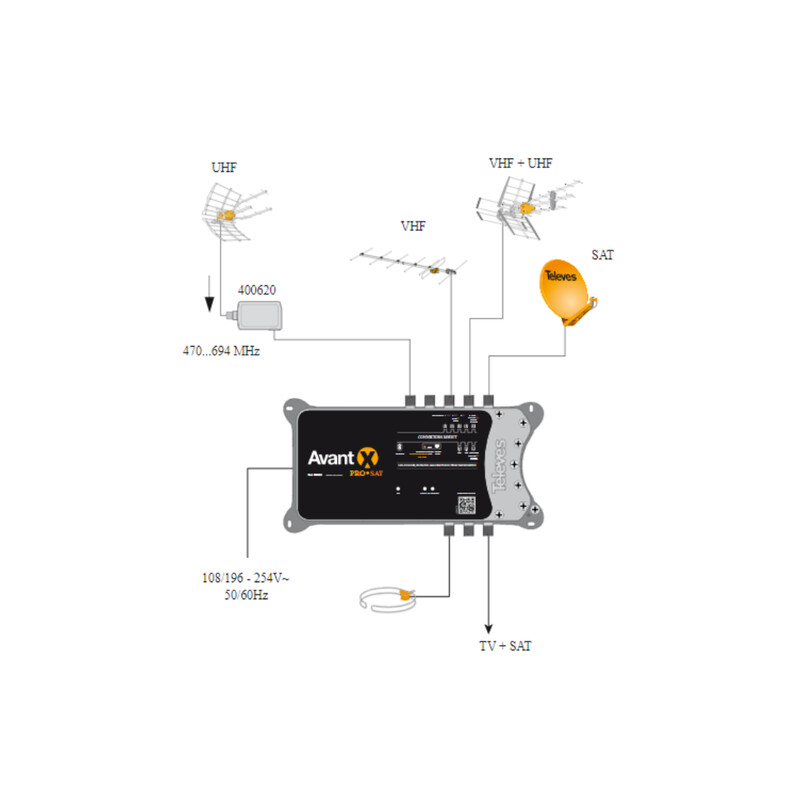

Low-power (13 dB) UHF line amplifier designed to connect to main amplifier units for input level adjustment.
Technical specifications
Technical specifications
- Frequency range 470-694 MHz (LTE700/5G filtering)
- UHF gain 13 dB
- Noise figure 4 dB
- Output level 107 dBuV
- Operating voltage Vdc 12-24, 26 mA?
Product details
Technical specifications
Product class (ETIM)Terrestrial amplifier (EC000526)
Number of outputs1
Number of inputs1
ModelFeed-in amplifier
Power adaptorNone
Remote feedableyes
Gain B I0 dB
Gain B III0 dB
Gain B IV/V13 dB
Gain FM0 dB
Equalizerno
Level adjusterno
Product codes
SAPCZY510
STK7550285
PLC7550285
GTIN/EAN8424450206355
Manufacturer part numberT400620
Vendor material numberT400620
Basic information
Package measurements (L x W x H)80 x 40 x 25 mm
Package volume0.08 l
Package weight0.09 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC43221702
BrandTELEVES
VendorFINNSAT OY
