FIBER EXTENSION MACHINE FUSION SPLICER WITH CLEAVER

Kuidunytimen mukaan kohdistava kuituhitsauslaite ja leikkuri

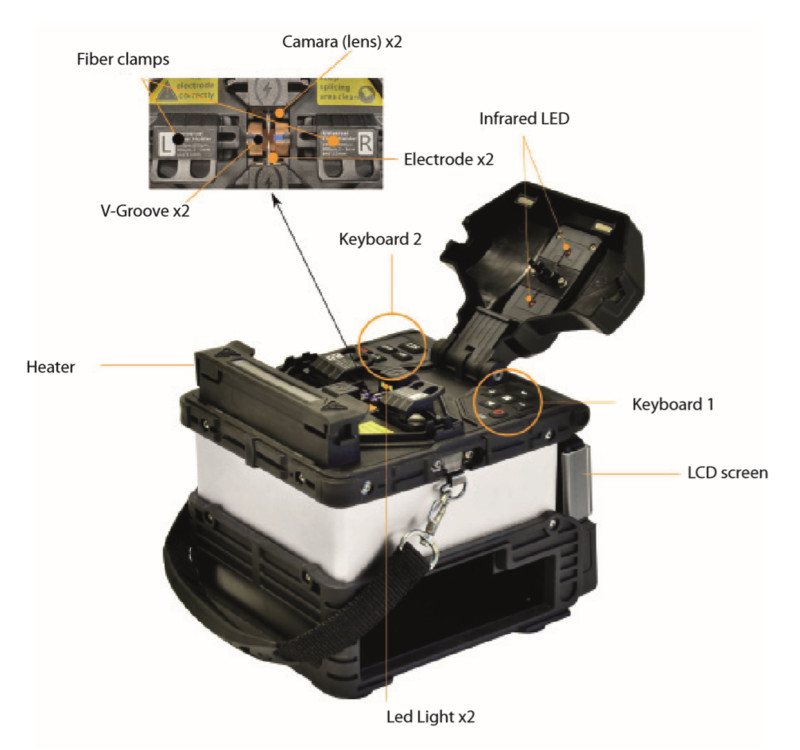

Televes T232105 fiber splicer or fusion splicer makes a perfect splice in 9 seconds. The fiber splice uses an automatic core alignment method where six alignment motors precisely align the fibers in x-, y-, and z-planes.

The T232105 is small, lightweight, and highly resistant to various environmental conditions. The extremely durable ABS plastic carrying case can serve as a convenient work surface at the installation site when needed.

Televes fiber splicer joins two optical fiber cables together using heat. First, the cable ends are stripped and cut evenly with a precision cutter. Then the fibers are placed into the machine and the automation handles the rest. A splice protector is placed over the splice point and heated in the machine’s oven. The protector shrinks and seals the joint.

Key features of the fiber splicer:

• Core alignment.
• 360° protection. Dust, water, and impact protection.
• Automatic splicing after lid closure. Splicing time: 9 seconds.
• Strength test after splicing.
• Automatic arc calibration due to variations in installation height and atmospheric pressure.
• Fully customizable based on the characteristics of the fiber being spliced.
• The heating oven automatically activates when the lid closes.
• Splice results and magnified images are stored in the device.
• A full battery provides approximately 300 splices and heater cycles. You can continue using the device while charging.
• Each alignment motor is a permanent magnet stepper motor, enabling high-quality and maximum precision.

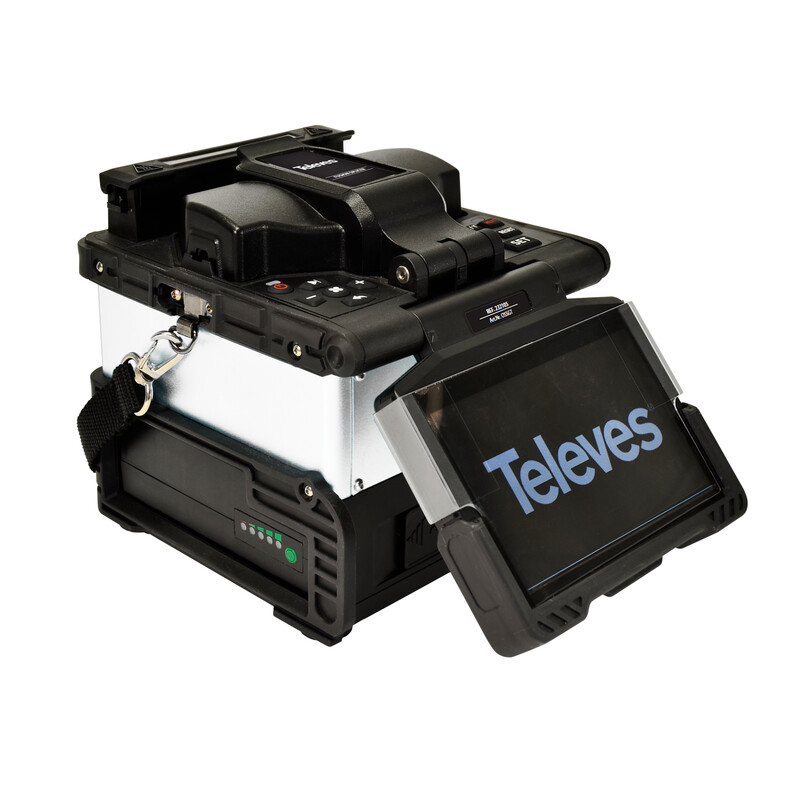

• 4.3” LCD display.
• Long-life battery (7800 mAh) with discharge indicators. (Approx. 1000 charge cycles).
• The fan activates as needed according to the temperature sensor.
• Device self-diagnostic from the user menu.
• Durable dual-button controls.
• Power-saving settings (sleep mode and auto-shutdown).
• Automatic dual-direction rotating display.
• User-friendly and intuitive.

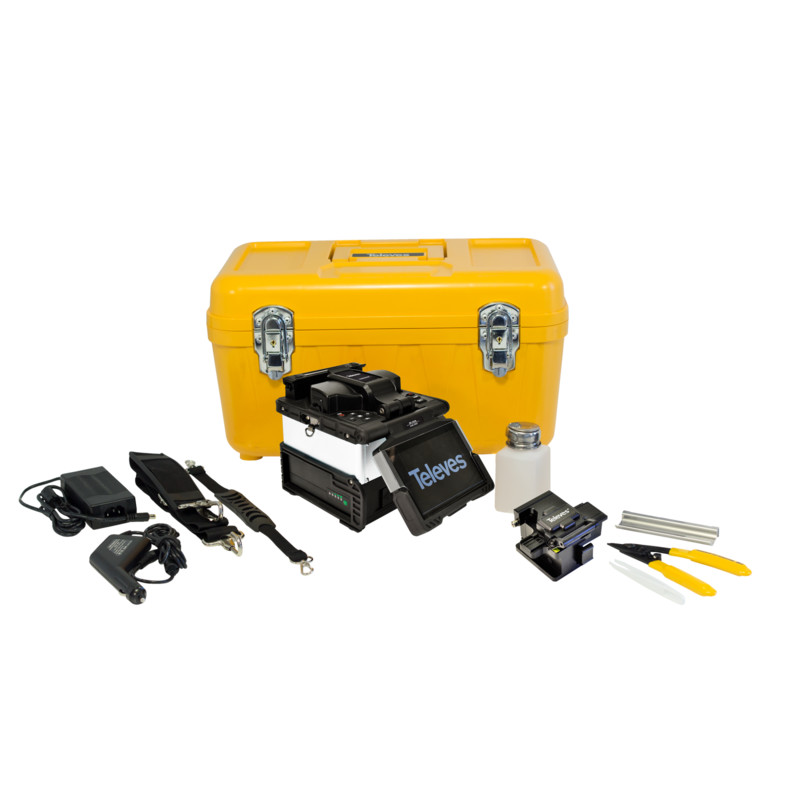

Accessories and supplies included with the fiber splicer:

• Fiber cutter with detachable collection container. (16,000 cuts)
• Fiber stripping tools. (125, 250, and 900 µm)
• 12 Volt car charger. (5V, 2A)
• Carrying case that can also function as a work surface. (+Carrying strap)
• Carrying handle for the splicer.
• Detachable Li-ION battery.
• Isopropyl alcohol dispenser.
• Plastic tweezers.
• Cooling tray for splice protectors.
• Replacement electrodes. (2 pcs)

Technical specifications

• Typical attenuation: 0.02 dB @ single-mode fiber (SM) / 0.01 dB @ multi-mode fiber (MM) / 0.04 dB @ DS & NZDS fiber / 0.02 dB @ BIF & UBIF fiber
• Splice time: 9 s / 7 s (fast mode)
• Typical heating time: 19 s
• Splice settings: 10 preset, 90 customizable.
• Oven heating settings: 4 preset, 96 customizable.
• Fiber alignment: 3 AXIS Core X-Y-Z
• Display: 4.3” LCD
• Fiber magnification on display: Axis X + Axis Y = 180. Axis X or Axis Y = 360.
• Electrode lifespan: approx. 4000 uses
• Connections: Mini USB (for updates and log file transfer)
• Power: Vac 100-240
• Battery: Li-ION (11.1V & 7800mAh)
• Battery life: approx. 300 (splices and heating)
• Operating conditions: -20...+55°C
• Humidity: < 95%</ This product description is an automated translation of the original Finnish description.
