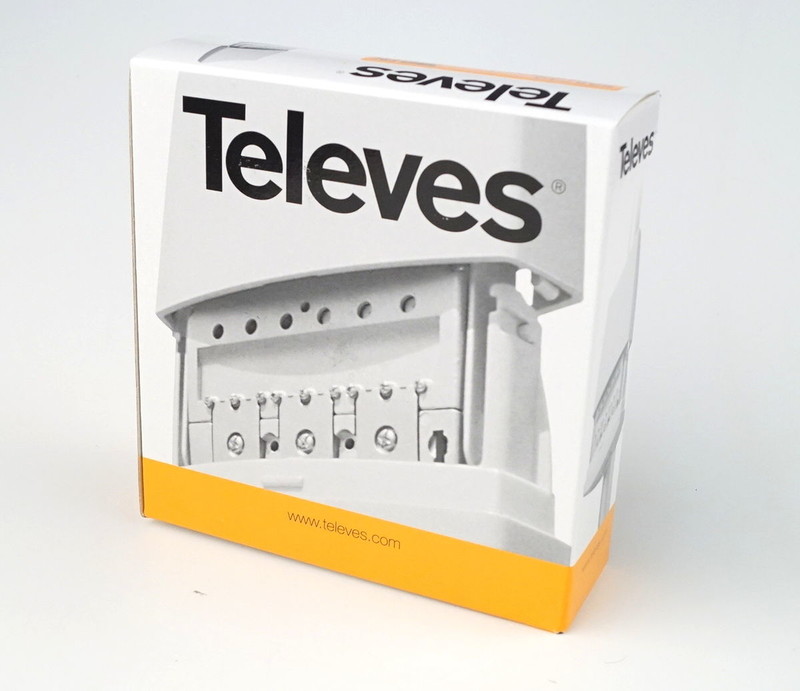

MAST AMPLIFIER FM / VHFIII+DAB / UHF

High-quality Televes mast amplifier for VHF, UHF, and FM frequencies. This mast amplifier is designed to amplify, combine, and adjust signals from multiple antennas. Particularly used in situations requiring raw amplification at UHF frequencies.

The amplifier's built-in LTE700 filter passes the frequency range 470-694 MHz, i.e., channels E21-E48, but cuts off frequencies from 694 MHz upwards.

FEATURES

• Mast amplifier
• Built-in LTE700 filtering
• 3 inputs (UHF, VHF+DAB, and FM)
• Combines signals from different antennas into a single cable
• DC pass-through activatable via ON/OFF switch
• Easy F connectors
• Weatherproof ABS plastic housing
• Operating voltage 24 VDC is supplied to the amplifier via coaxial cable. Does not include a power supply unit. Must be ordered separately, e.g., T5795 or T5504.

TECHNICAL SPECIFICATIONS

• FM amplification -5…15dB
• VHF/DAB amplification 12…32dB
• UHF amplification 16…36dB, DC 45mA
• Voltage 24V, 80mA
• Dimensions 120 x 130 x 40mm

This product description is an automated translation of the original Finnish description.
