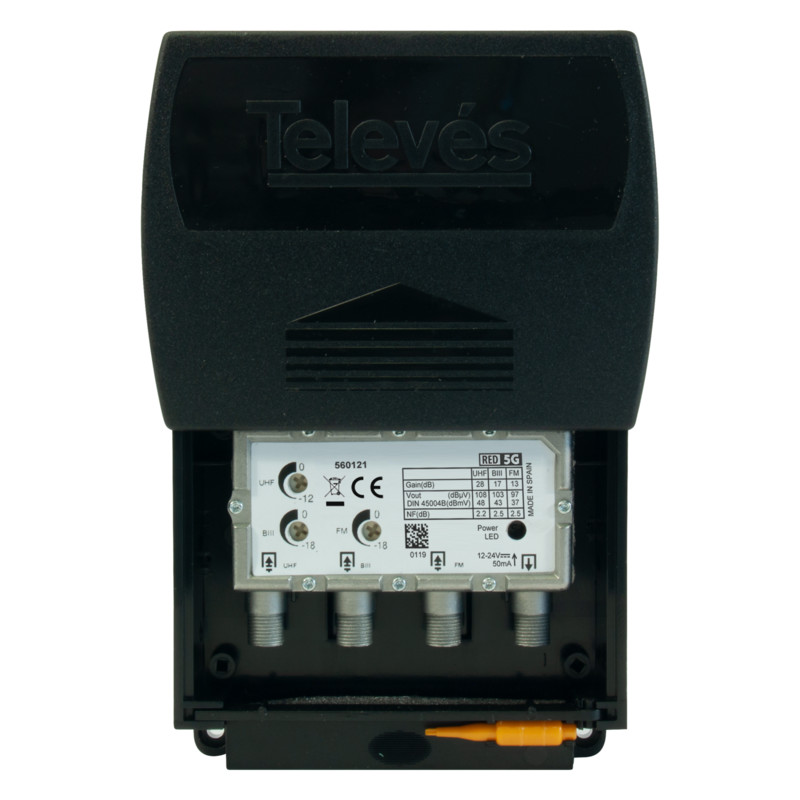

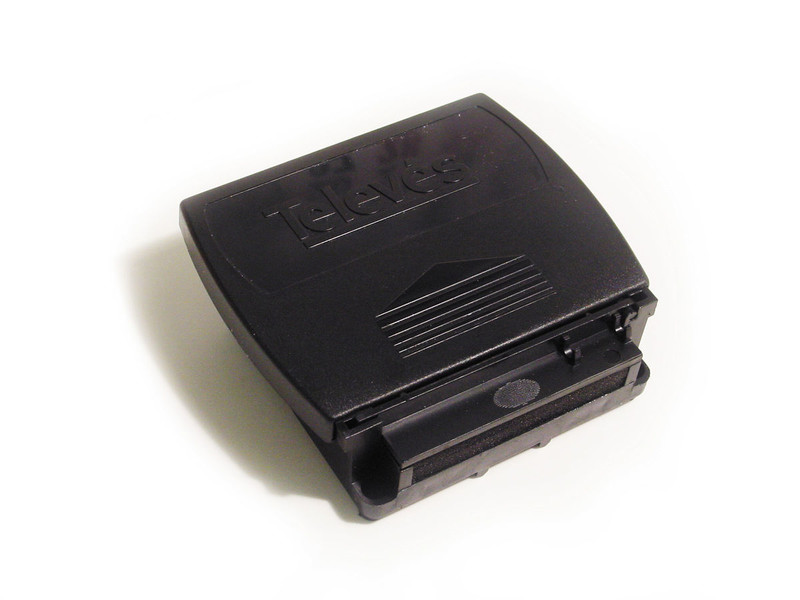

MAST AMPLIFIER FM / VHFIII / UHF (LTE700) AGC
Product code
7552103

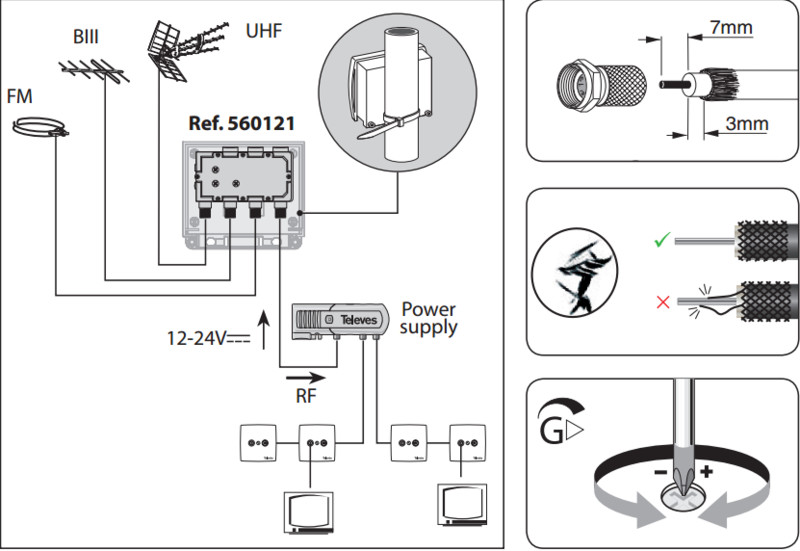

High-quality low-noise Televes mast amplifier specifically designed to enhance sharp channel reception in building antenna networks.
Thanks to its excellent gain values, it is suitable as the sole amplifier for television and radio channel reception in most single-family homes.

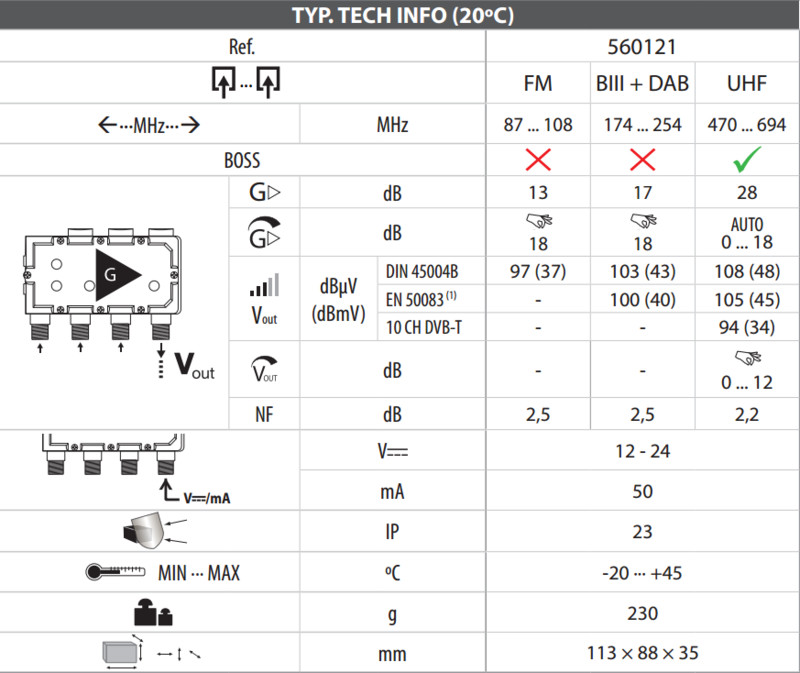

TECHNICAL SPECIFICATIONS
Thanks to its excellent gain values, it is suitable as the sole amplifier for television and radio channel reception in most single-family homes.
TECHNICAL SPECIFICATIONS
- VHF gain 0-17 dB, 174…254 MHz, noise figure 2.5 dB
- UHF gain 10-28 dB, 470…694 MHz, noise figure 2.2 dB
- FM gain 0-13 dB, 87…108 MHz, noise figure 2.5 dB
- 12…24 V, 50 mA
Product details
Technical specifications
Product class (ETIM)Terrestrial amplifier (EC000526)
Number of outputs1
Number of inputs3
ModelMulti-band amplifier
Power adaptorNone
Gain B III17 dB
Gain B IV/V28 dB
Gain FM13 dB
Level adjusteryes
Product codes
SAPCKX622
STK7552103
PLC7552103
GTIN/EAN8424450204665
Manufacturer part numberT560121
Vendor material numberT560121
Basic information
Package measurements (L x W x H)93 x 42 x 117 mm
Package volume0.457 l
Package weight0.2 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC43221702
BrandTELEVES
VendorFINNSAT OY
