MAST AMPLIFIER VHFIII/UHF/UHF LTE700

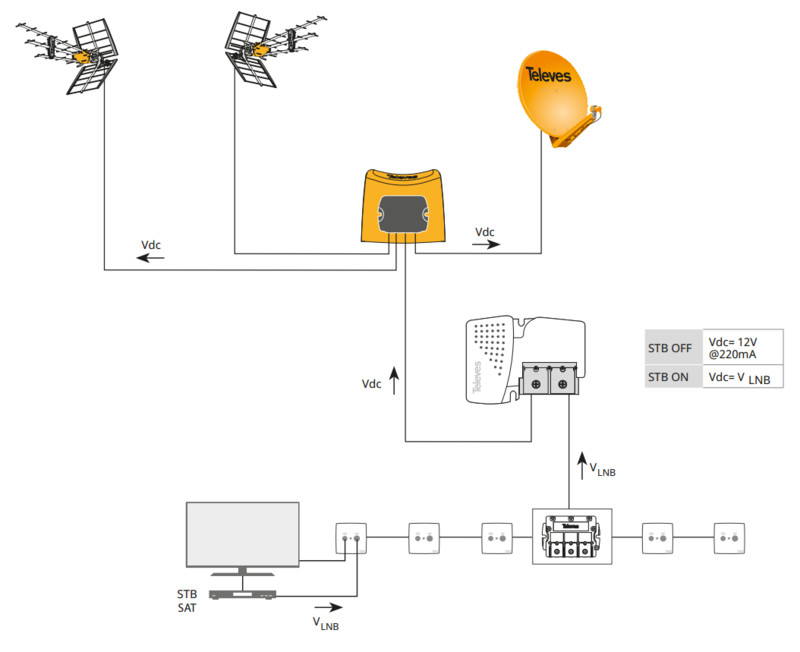

High-quality Televes mast amplifier for UHF and VHF frequencies. This mast amplifier is designed to amplify, combine, and adjust signals from multiple antennas. It is particularly used in situations where raw amplification is required for UHF frequencies, while no amplification is needed for the VHF band. The signal from both UHF inputs is amplified, while the normally strong VHF signal is passively mixed. The amplifier's built-in LTE 700 filter allows frequencies from 470-694 MHz (channels E21-E48) to pass through, but cuts off frequencies from 694 MHz upwards. Features: - Mast amplifier, LTE700-Ready model - Built-in LTE700 filtering - 3 inputs (2xUHF and VHF) - Combines signals from different antennas into a single cable - EasyF connectors - Weather-resistant ABS plastic housing - Operating voltage 12-24 VDC is supplied to the amplifier via the coaxial cable. Does not include a power supply unit. Must be ordered separately, e.g., T5795 or T5504. Technical specifications: - VHF amplification -1.5dB - UHF amplification 28dB, DC 40mA - Voltage 12-24V, 50mA This product description is an automated translation of the original Finnish description.
