OPTICAL SPLITTER PLC 1/2 SC/APC, 3,7DB MAX, ABS
Product code
7526291

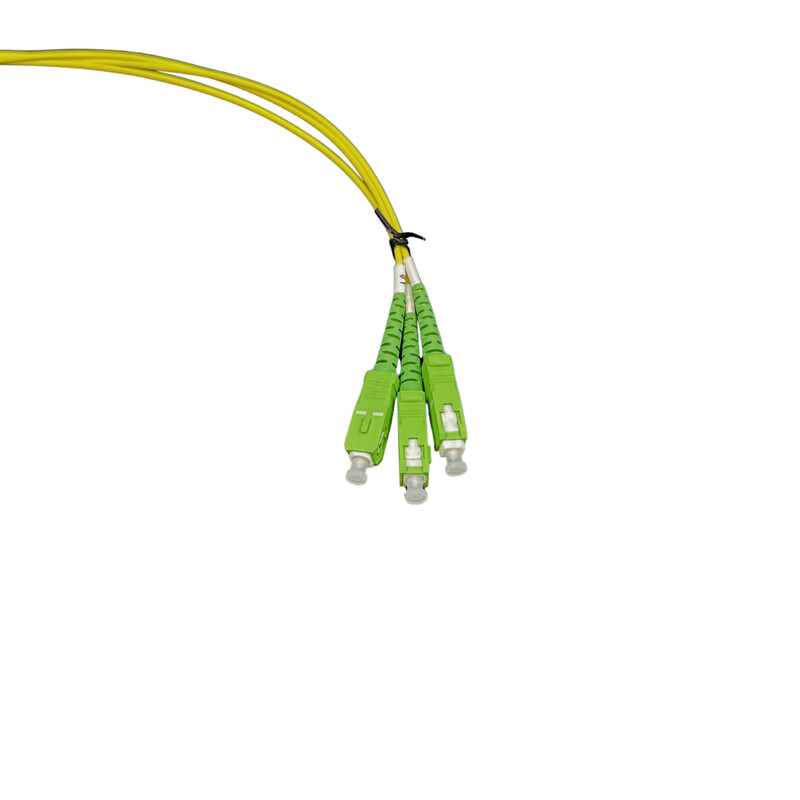

Optical PLC (Planar Lightwave Circuit) splitter with connectors in an ABS enclosure. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Planar Lightwave Circuit (PLC) splitter (EC003870)
Type1x2
Operating wavelength1260-1650 nm
Mounting methodOther
Connector type inputSC/APC
Connector type outputSC/APC
Max. insertion loss3.7 dB
Min. return loss50 dB
Max. uniformity loss0.4 dB
Max. polarisation dependent loss (PDL)0.2 dB
Min. directivity55 dB
Operating temperature-40-85 °C
Fibre length input1500 mm
Fibre length output1500 mm
Height80 mm
Width100 mm
Product codes
SAPDAB931
STK7526291
PLC7526291
GTIN/EAN7321411027367
Manufacturer part numberFKJ-2-SCAPC
Vendor material numberFKJ-2-SCAPC
Basic information
Package measurements (L x W x H)235 x 160 x 20 mm
Package volume0.752 l
Package weight0.074 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221702
BrandTELEVES
VendorFINNSAT OY
