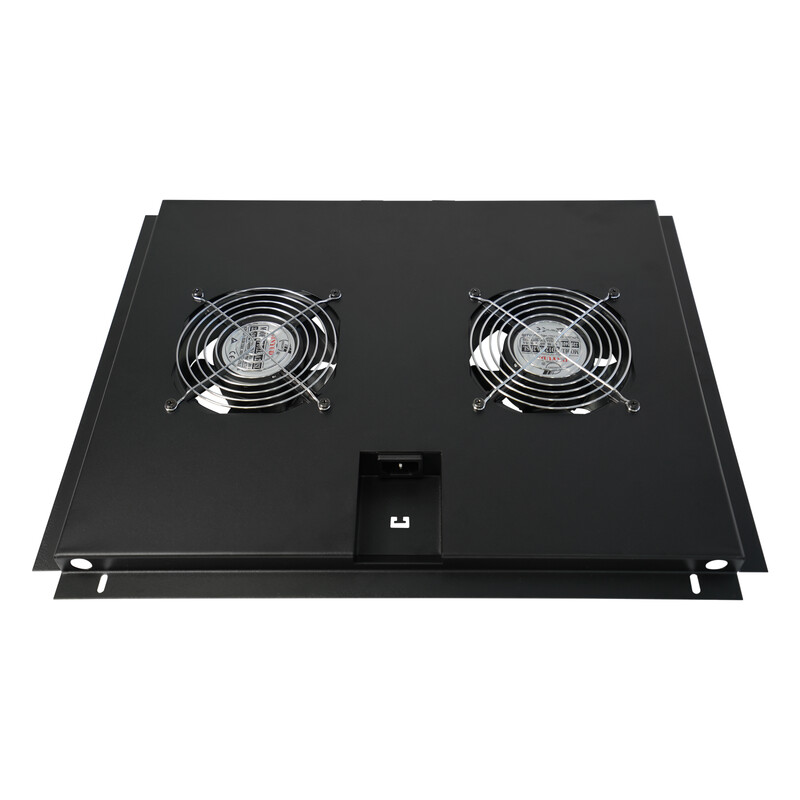

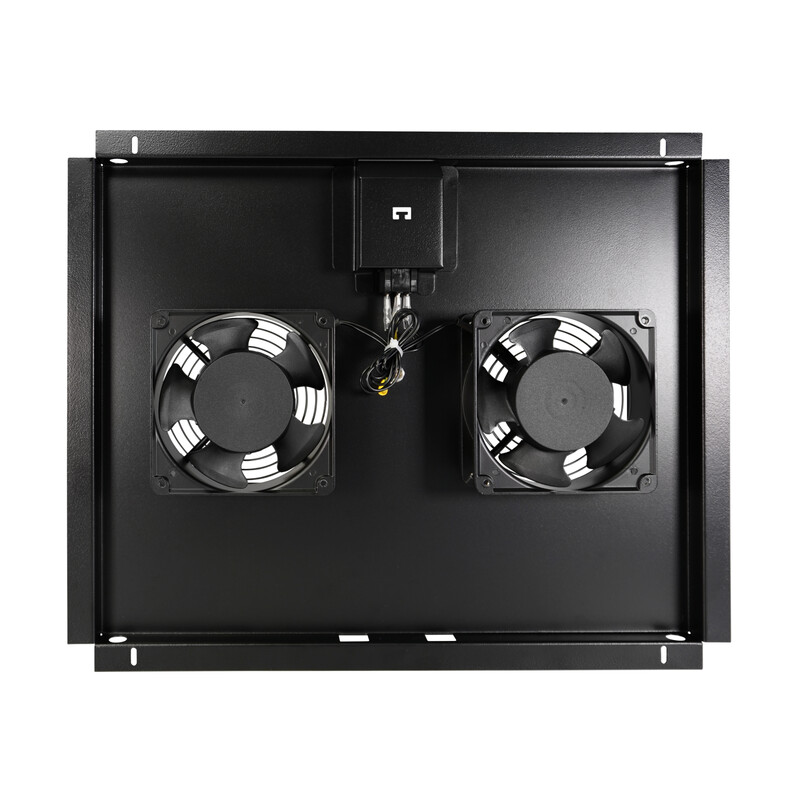

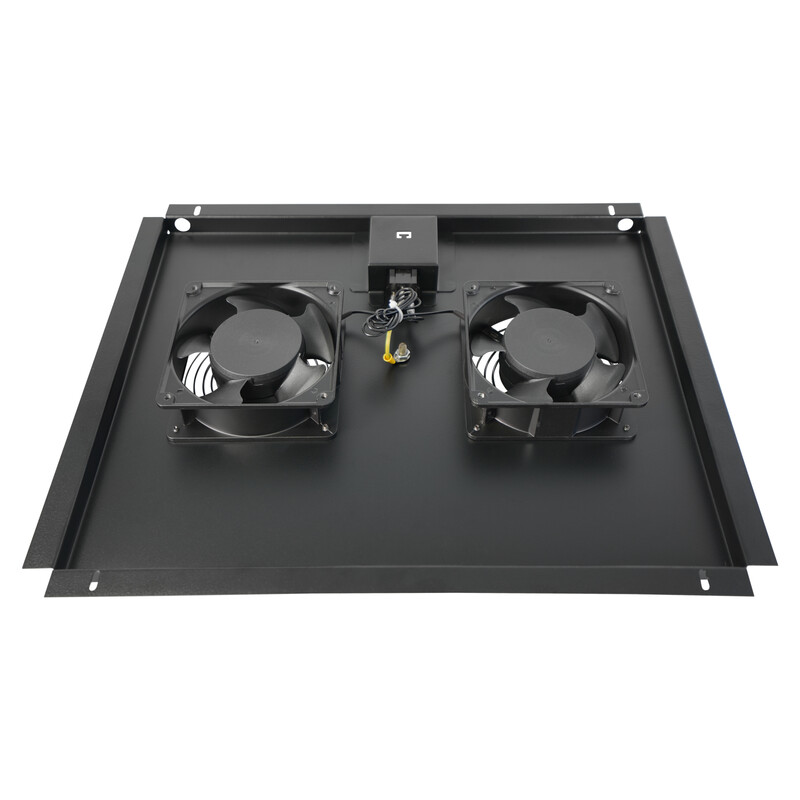

RACK ACCESSORY 2xFAN TRAY 19IN 390M3/H
Product code
7267427
A pair of fans mounted at the top of a rack cabinet to cool the equipment inside. The fan creates an airflow into the cabinet, aiding in heat dissipation from the electrical devices installed in the cabinet and maintaining a suitable temperature within. The square-shaped fan is suitable for 600x600mm 19" rack cabinets and includes screws for mounting.
- Two fans with high airflow: 390 m3/hour
- Simple installation: screws for fan mounting are included
- Durable. Made from 1mm thick steel
- Noise level: <56dB
- Color: black RAL9005
- Connector: IEC C14
- Dimensions: 451mm x 365mm x 50mm
Product details
Technical specifications
Product class (ETIM)Ventilator (enclosure/cabinet) (EC000320)
Number of fans2
Operating voltage AC 50 Hz220-230 V
Operating voltage AC 60 Hz220-230 V
Built as slide-in ventilatorno
Air circulatoryes
Roof ventilatoryes
With filterno
With protective coveryes
Volume flow, freeblowing390 m³/h
Rated power36 W
Noise emission56 dB(A)
Mounting methodScrew mounting
Suitable for 19 inch rack mountingyes
ColourBlack
RAL-number9005
Product codes
SAPCZZ577
STK7267427
PLC7267427
GTIN/EAN8424450237649
Manufacturer part numberT533175
Vendor material numberT533175
Basic information
Package measurements (L x W x H)400 x 500 x 100 mm
Package volume20 l
Package weight2.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandTELEVES
VendorFINNSAT OY
