RACK ACCESSORY 4xFAN TRAY 19IN 780M3/H
Product code
7267428

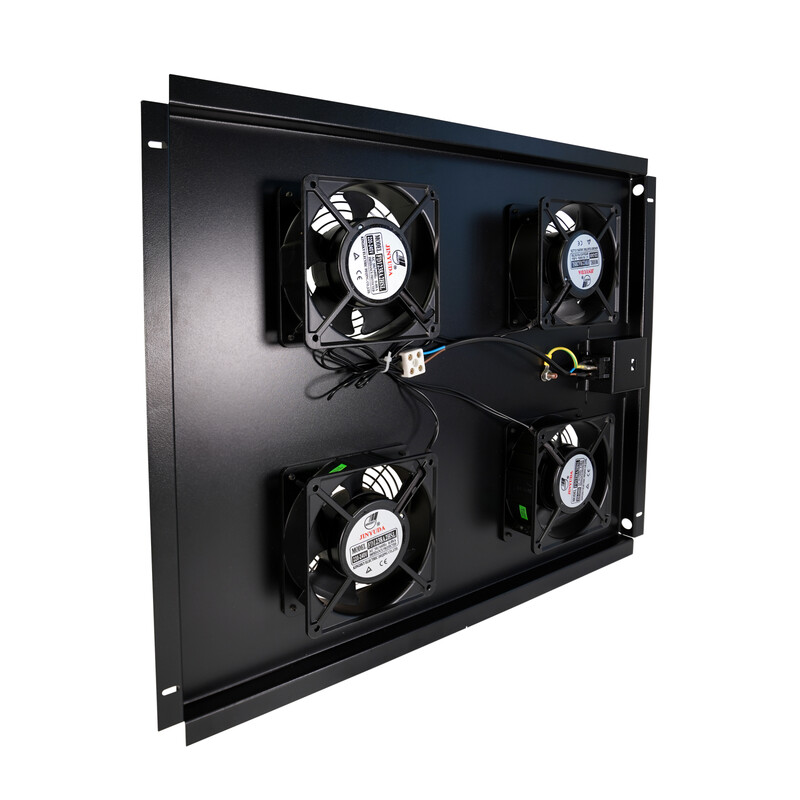

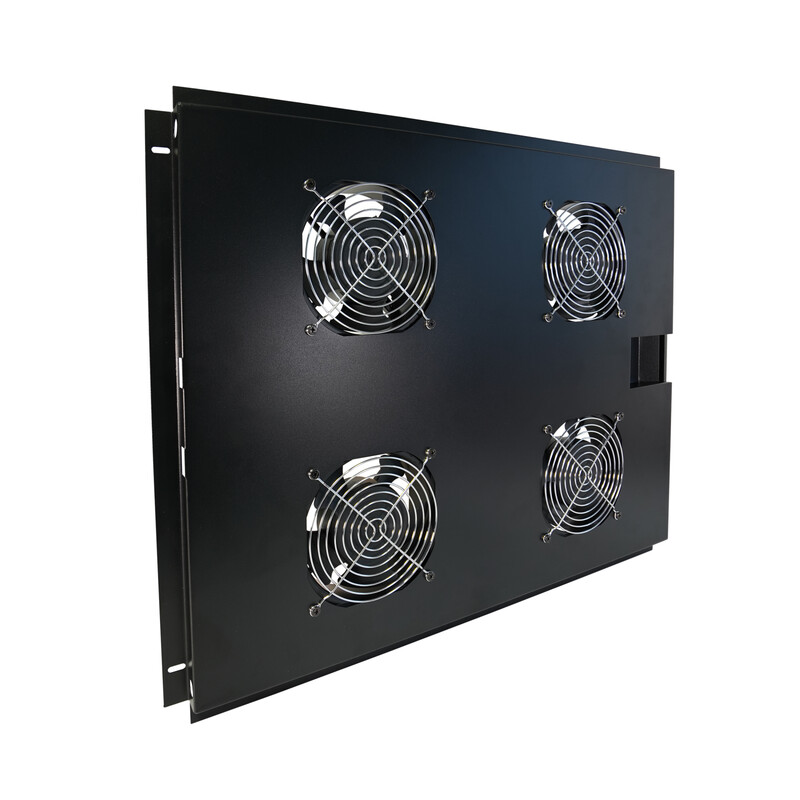

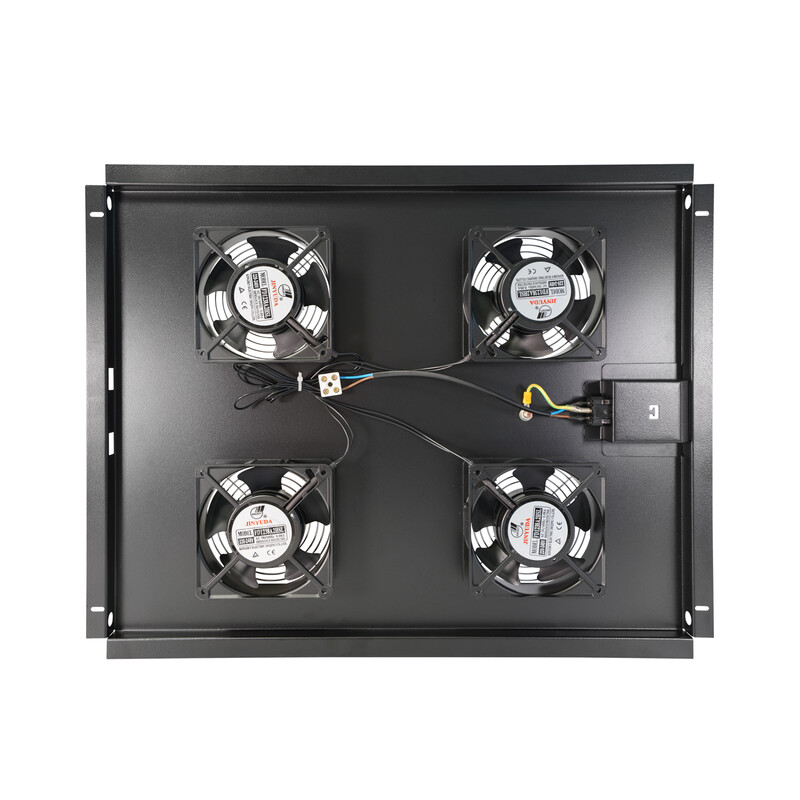

A set of four fans mounted on the top of a rack cabinet to cool the equipment inside. The fan creates an airflow into the cabinet, aiding in the removal of heat from the electrical devices installed in the cabinet and maintaining a suitable temperature within. The square-shaped fan is suitable for 600x800mm and 800x800mm 19" rack cabinets and includes screws for mounting.
- Four fans with high airflow: 780 m3/hour
- Simple installation: screws for fan mounting are included
- Durable. Made from 1mm thick steel
- Noise level: <61dB
- Color: black RAL9005
- Connector: IEC C14
- Dimensions: 451mm x 563mm x 50mm
Product details
Technical specifications
Product class (ETIM)Ventilator (enclosure/cabinet) (EC000320)
Number of fans4
Operating voltage AC 50 Hz220-230 V
Operating voltage AC 60 Hz220-230 V
Built as slide-in ventilatorno
Air circulatoryes
Roof ventilatoryes
With filterno
With protective coveryes
Volume flow, freeblowing780 m³/h
Rated power74 W
Noise emission61 dB(A)
Mounting methodScrew mounting
Suitable for 19 inch rack mountingyes
ColourBlack
RAL-number9005
Product codes
SAPCZZ578
STK7267428
PLC7267428
GTIN/EAN8424450237656
Manufacturer part numberT533176
Vendor material numberT533176
Basic information
Package measurements (L x W x H)600 x 500 x 100 mm
Package volume30 l
Package weight4 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandTELEVES
VendorFINNSAT OY
