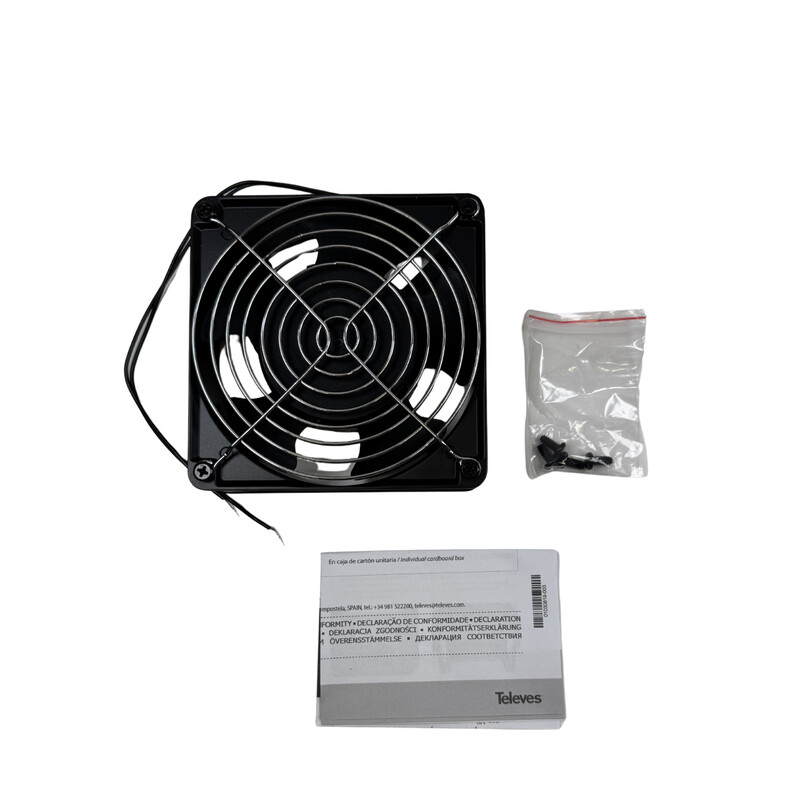

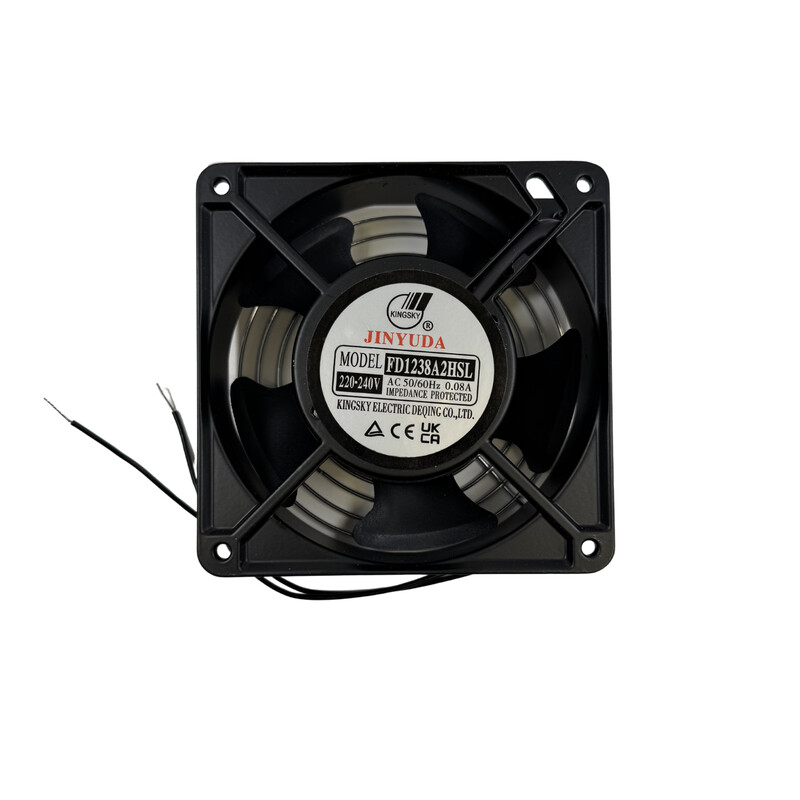

RACK ACCESSORY FAN FOR 19IN RACK 195M3/H
Product code
7267426
Ventilation unit mounted at the top of a rack cabinet to cool the equipment inside. The fan creates an airflow into the cabinet, aiding in heat removal from electrical devices installed in the cabinet and maintaining a suitable temperature within. The square-shaped fan is suitable for 19" rack cabinets and includes screws for mounting.
- Single fan with moderate energy consumption and efficient airflow: 195 m3/hour
- Simple installation: includes mounting frame and screws for fan installation
- Low noise level: <48dB
- Can be installed individually or in series with multiple fans
- Color: black RAL9005
- Material: zinc alloy
- Dimensions: 120mm x 120mm x 38mm
Product details
Technical specifications
Product class (ETIM)Ventilator (enclosure/cabinet) (EC000320)
Number of fans1
Operating voltage AC 50 Hz220 - 230 V
Operating voltage AC 60 Hz220 - 230 V
Built as slide-in ventilatorno
Air circulatoryes
Roof ventilatoryes
With filterno
With protective coveryes
Volume flow, freeblowing195 m³/h
Rated power18 W
Noise emission48 dB(A)
Degree of protection (IP)Other
Mounting methodScrew mounting
Suitable for 19 inch rack mountingyes
ColourBlack
Product codes
SAPCZZ576
STK7267426
PLC7267426
GTIN/EAN8424450240274
Manufacturer part numberT533174
Vendor material numberT533174
Basic information
Package measurements (L x W x H)130 x 130 x 50 mm
Package volume0.845 l
Package weight0.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandTELEVES
VendorFINNSAT OY
