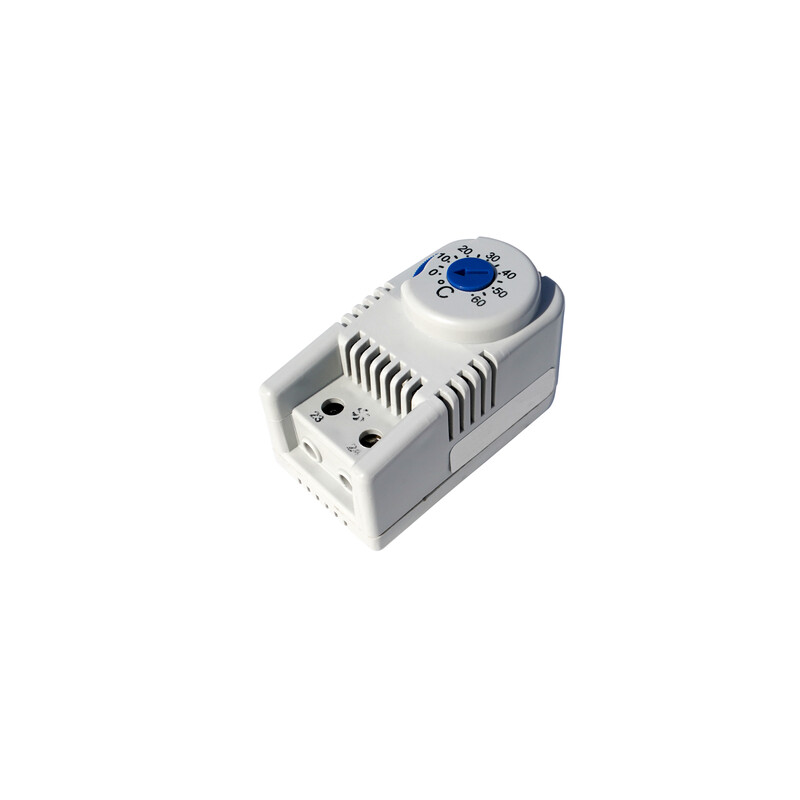

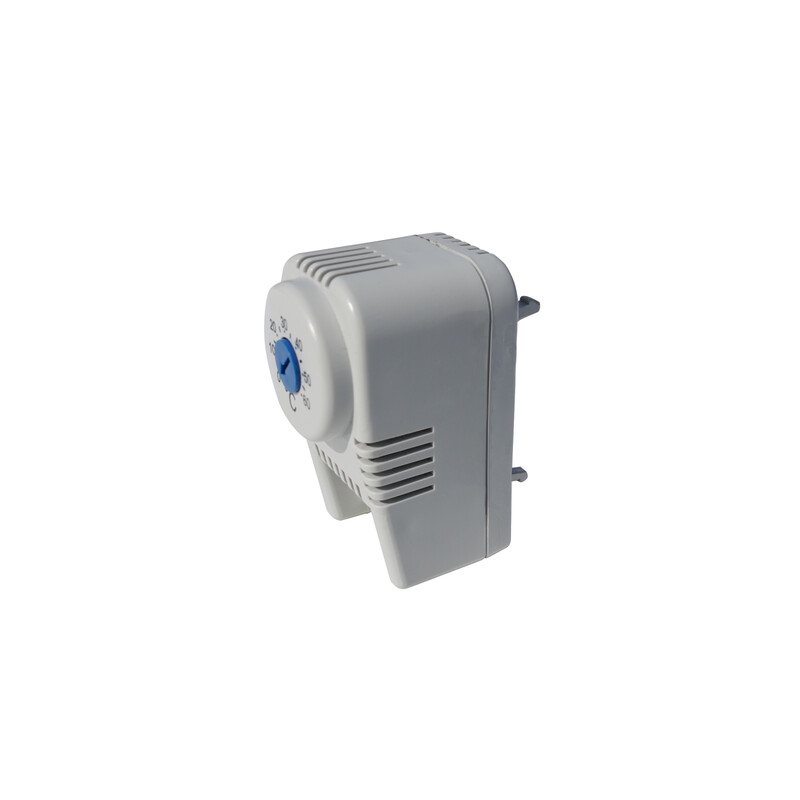

RACK ACCESSORY THERMOSTAT WITH NO 0-60ºC 19IN
Product code
7267429
Thermostat with normally open (NO) switch for temperature control in a 19" rack. When the temperature exceeds a set value, the thermostat switch closes, activating the connected fan units or other device.
Installing the thermostat improves energy efficiency because the fans activate only when needed, preventing unnecessary energy consumption and increasing the durability of the ventilation system.
Installing the thermostat improves energy efficiency because the fans activate only when needed, preventing unnecessary energy consumption and increasing the durability of the ventilation system.
- Normally open switch: NO, normally open. The switch closes when the set temperature is reached, allowing current to flow and activating the connected fan units.
- Simple installation: Easy to attach and detach. Fits a 35 mm DIN rail (EN 60715).
- Wide temperature range: 0 - 60°C.
- Made from flame- and impact-resistant plastic.
- Protection class IP20.
- Durable: operational life exceeding 100,000 cycles.
- Color: gray.
Product details
Technical specifications
Product class (ETIM)Thermostat/hygrostat (enclosure/cabinet) (EC004587)
ModelThermostat
Temperature setting range0-60 °C
Mounting methodOther
Type of switch functionNormally open contact (NO)
With digital indicationno
Product codes
SAPCZZ579
STK7267429
PLC7267429
GTIN/EAN8424450240281
Manufacturer part numberT533005
Vendor material numberT533005
Basic information
Package measurements (L x W x H)200 x 200 x 100 mm
Package volume4 l
Package weight0.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandTELEVES
VendorFINNSAT OY
