TAP 5-1218MHz 4 x TAP 11dB I/O 4dB
Product code
7552778

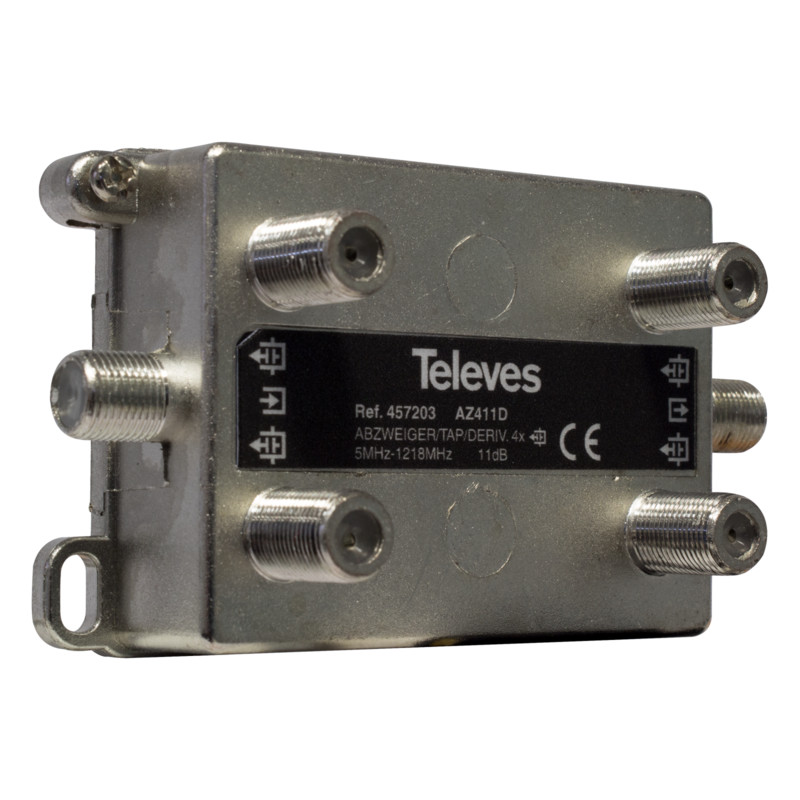

Televes splitter with four outputs, 11 dB branch loss and 4 dB insertion loss. Frequency range 5-1218 MHz, suitable for antenna and cable networks. DOCSIS 3.1 compatible. Remember to terminate unused outputs with termination resistors! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Tap-off and distributor (EC000421)
Connection typeF-Connector
ModelSplitter
Frequency5-1218 MHz
Max. tap/splitter loss11 dB
Max. transmission loss4 dB
Number of branches4
Number of outputs1
Suitable for remote power supplyno
Product codes
SAPDAC001
STK7552778
PLC7552778
GTIN/EAN8424450193051
Manufacturer part numberT457203
Vendor material numberT457203
Basic information
Package measurements (L x W x H)97 x 135 x 40 mm
Package volume0.524 l
Package weight0.105 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC43221702
BrandTELEVES
VendorFINNSAT OY
