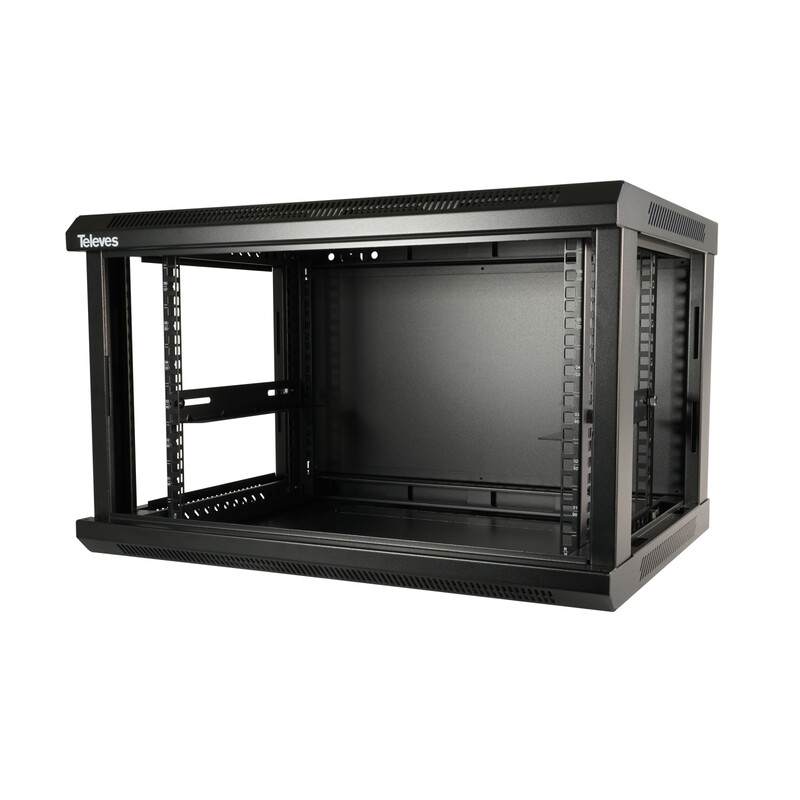

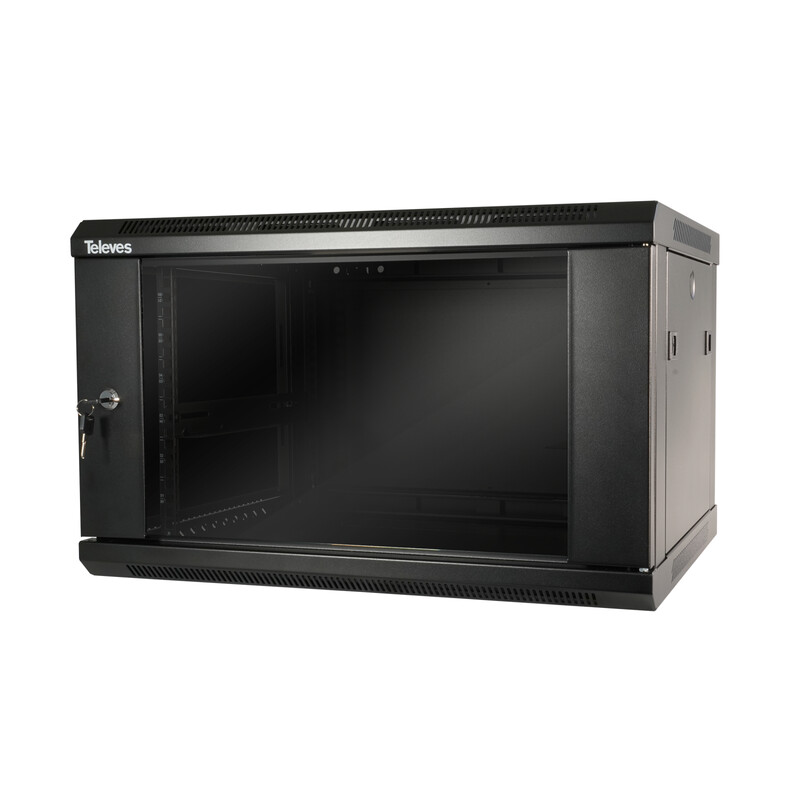

WALL CABINET 19IN 6+2RU ASSEMBLED
Product code
7267431
T533106 6+2RU rack cabinet is used for housing active or passive devices. Devices are visible through the glass, but the steel, lockable structure protects them. The cabinet is suitable for fiber optic, data cable, or coaxial cable installations and enables grouping of different technologies into a single cabinet.
Total capacity is 8RU: 6RU plus an additional 2RU utilizing the top and bottom ends.
Designed for either wall or floor mounting.
Dimensions (W x H x D): 600mm x 370mm x 450mm
Supplied pre-assembled.
Total capacity is 8RU: 6RU plus an additional 2RU utilizing the top and bottom ends.
Designed for either wall or floor mounting.
Dimensions (W x H x D): 600mm x 370mm x 450mm
Supplied pre-assembled.
- Strong and durable: constructed from steel, coating based on polyester resins and lead-free pigment
- Maximum load capacity of 60kg
- Extremely easy to install and use: reversible and removable front door and hinged side doors
- Installation of various panels or devices: side profiles are depth-adjustable
- Secure: tempered glass, lockable hinged front door
- Natural ventilation, option for forced ventilation

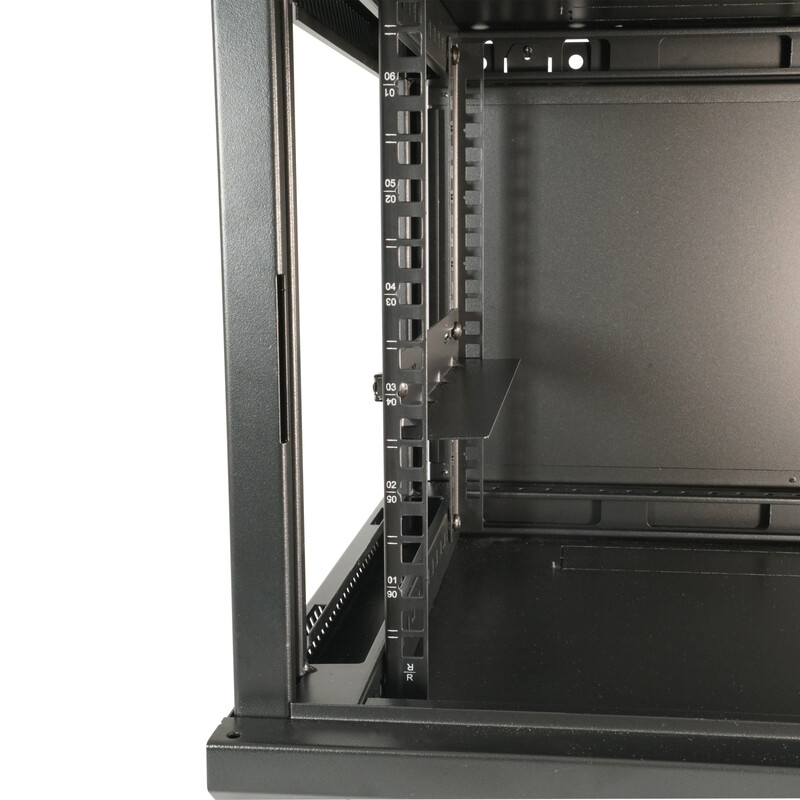

- Laser marking: numerical labeling for each RU
- Color: Black (RAL 9004)
- Adjustable top and bottom trays for cable management
- Indoor installation (IP20)
- 120x120mm ventilation unit can be connected to active device installations
Product details
Technical specifications
Product class (ETIM)Telecommunications cabinet (EC002501)
Type of profile railL-shape
Number of doors1
Type of ventilationPassive
Width600 mm
Height370 mm
Depth450 mm
With roof plateyes
With front dooryes
With rear doorno
With sidewallyes
Demountableyes
Scope of applicationInside
MaterialSteel
Surface finishingPowder coating
ColourBlack
Product codes
SAPCZZ581
STK7267431
PLC7267431
GTIN/EAN8424450181997
Manufacturer part numberT533106
Vendor material numberT533106
Basic information
Package measurements (L x W x H)500 x 600 x 400 mm
Package volume120 l
Package weight22.5 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandTELEVES
VendorFINNSAT OY
