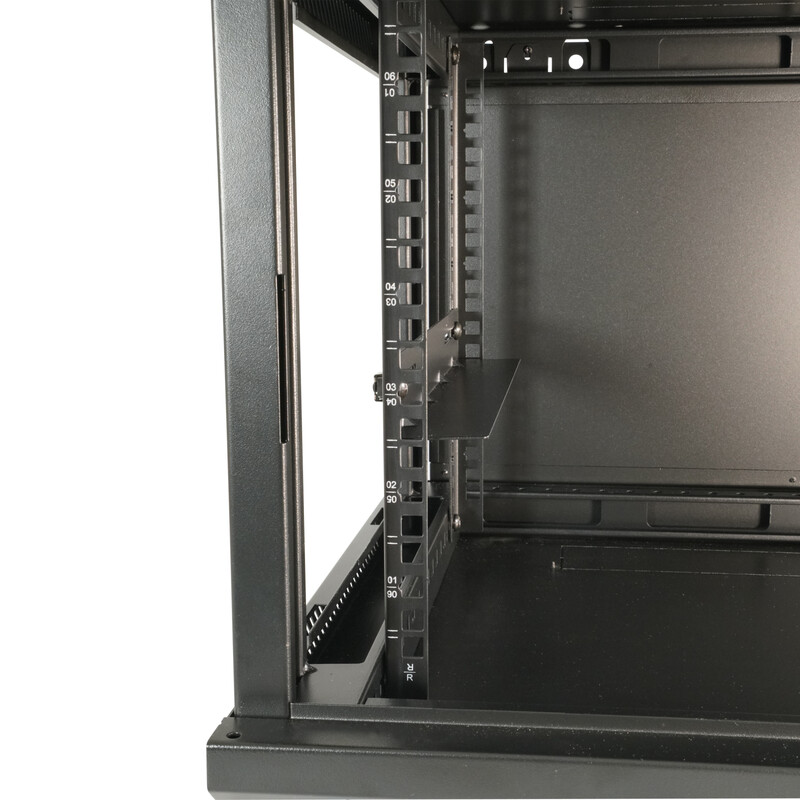

WALL CABINET 19IN 8+2RU ASSEMBLED

T533108 8+2RU rack cabinet is used for housing active or passive devices. The devices are visible from behind the glass, but the steel, lockable structure protects them. The cabinet is suitable for fiber optic, data cable, or coaxial cable installations and enables grouping of different technologies into a single cabinet.

Total capacity is 10RU. 8RU plus an additional 2RU utilizing the top and bottom ends.

Designed for either wall or floor mounting.

Dimensions (W x H x D): 600mm x 460mm x 450mm

Supplied pre-assembled.

• Strong and durable: constructed from steel, coating based on polyester resins and lead-free pigment
• Maximum load 60kg
• Easy to install. Includes L-bracket for wall mounting.
• The bracket is separate, allowing easy marking of drilling points on the wall. The bracket is screwed to the wall and the cabinet is hung on the bracket.
• Practical swivel and removable front door and hinged side doors
• Installation of various panels or devices: side profiles are depth-adjustable
• Secure: tempered glass, lockable hinged front door
• Natural ventilation, option for forced ventilation
• Laser marking: numerical labeling for each RU

Features:

• Color: Black (RAL 9004)
• Horizontal 1RU cable management panels at the top and bottom of the cabinet allow easy cable routing from side to side
• Indoor installation (IP20)
• 120x120mm ventilation unit can be connected to active device installations

This product description is an automated translation of the original Finnish description.
