ANTENNA CABINET 300x420x90
Product code
7550200

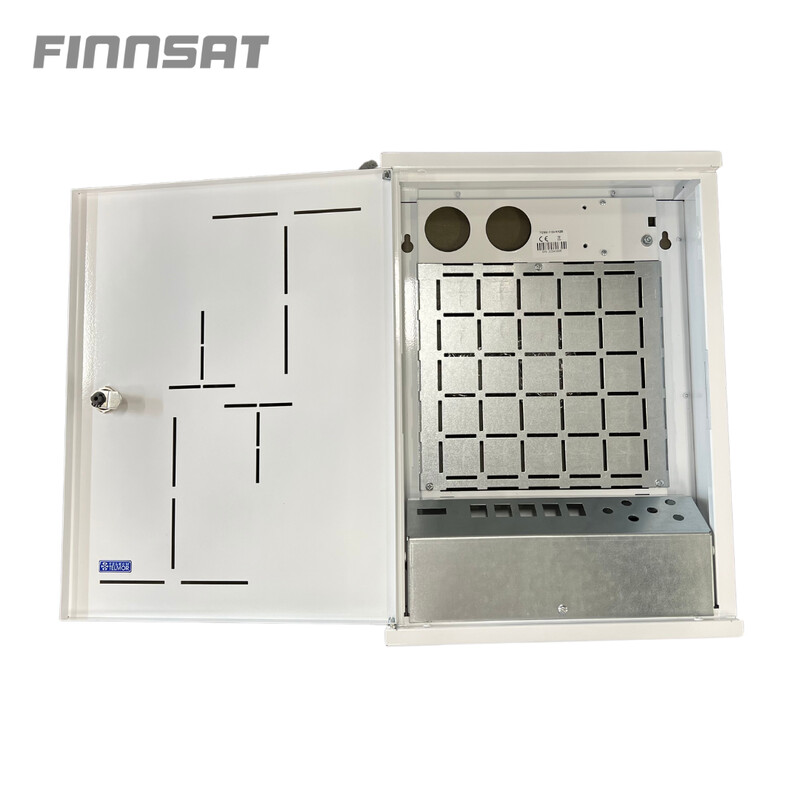

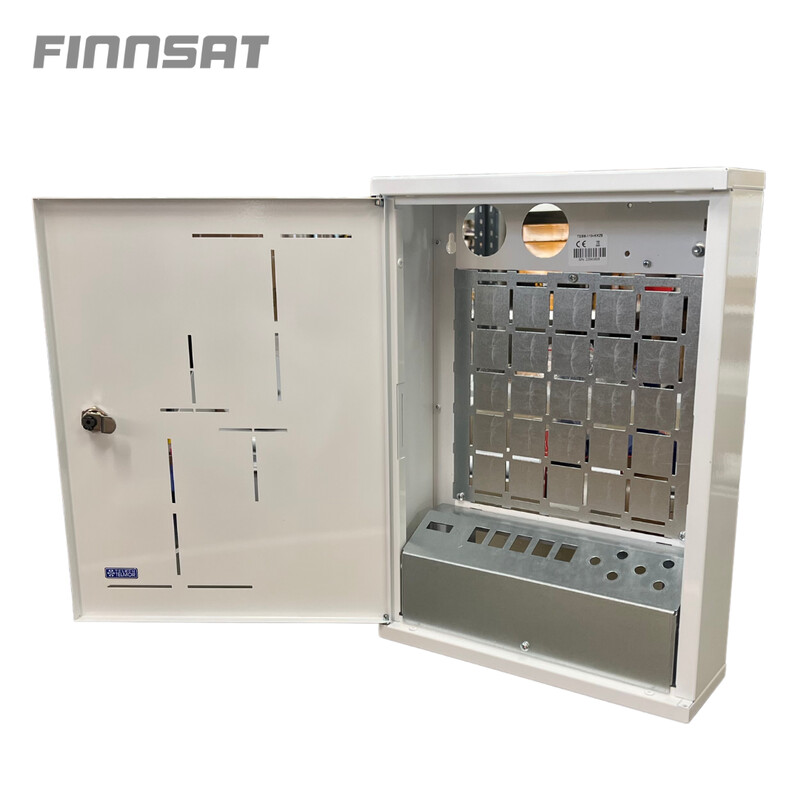

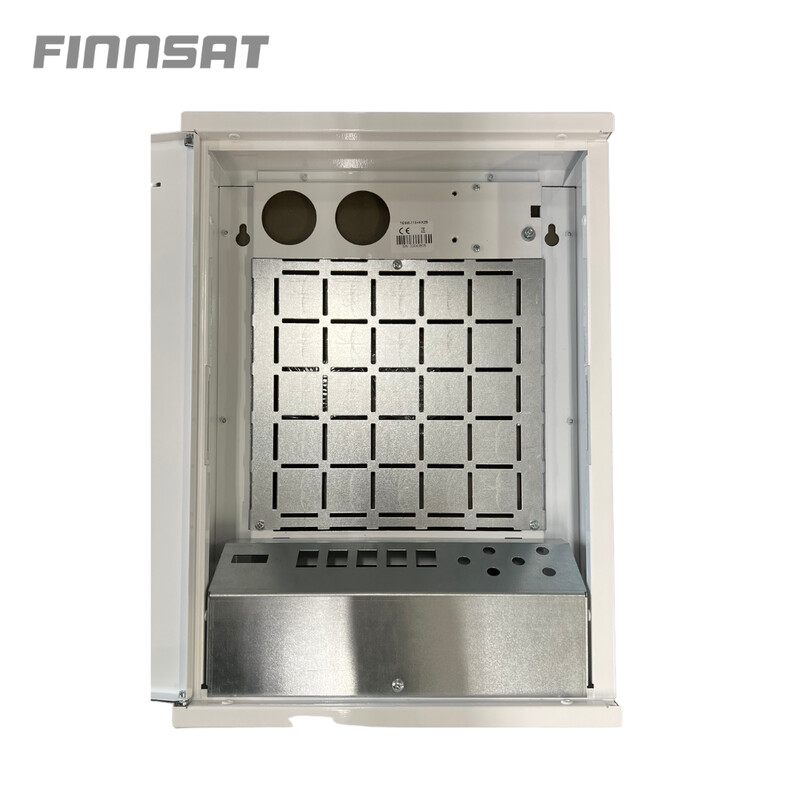

Wall-mounted telecom cabinet with a height of 420 mm, width of 300 mm, and depth of only 90 mm. The cabinet door features ventilation holes that allow WiFi signals to pass through. Installation is done using screws and expansion anchors.
The cabinet enclosure is made of metal and its design has been carefully engineered to optimize internal volume.

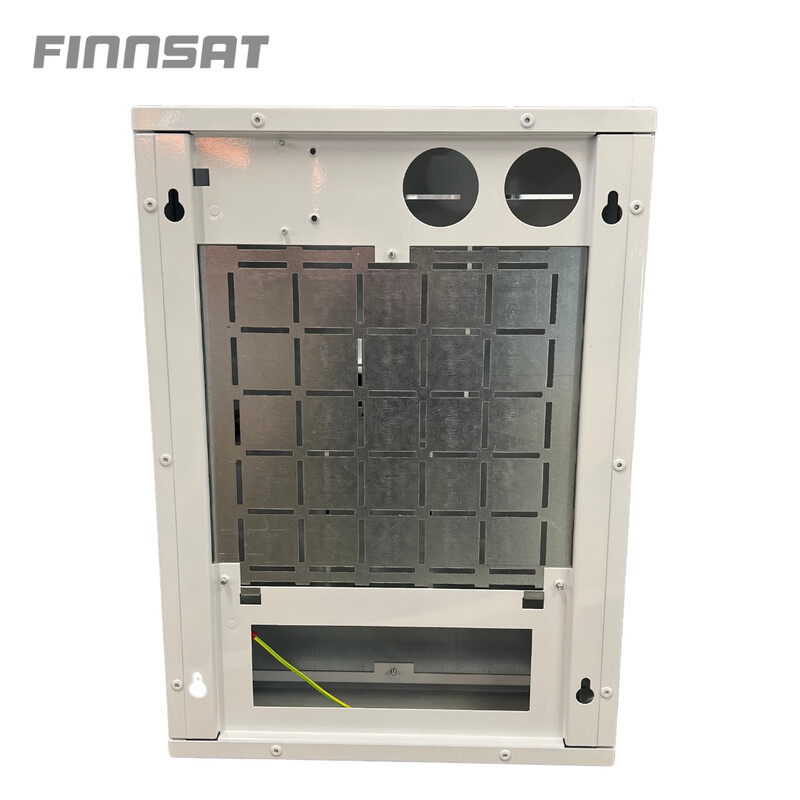

The back panel of the cabinet has holes for routing cable ties or straps, making device mounting easy. Additionally, the cabinet includes a separate compartment for cables. The universal lock protects against unauthorized access, for example by children.
Pre-drilled openings at the bottom:
- 1 unit for LC quattro or SC Duplex adapter
- 5 units for keystone
- 6 units for F-connector adapter This product description is an automated translation of the original Finnish description.
The cabinet enclosure is made of metal and its design has been carefully engineered to optimize internal volume.
The back panel of the cabinet has holes for routing cable ties or straps, making device mounting easy. Additionally, the cabinet includes a separate compartment for cables. The universal lock protects against unauthorized access, for example by children.
Pre-drilled openings at the bottom:
- 1 unit for LC quattro or SC Duplex adapter
- 5 units for keystone
- 6 units for F-connector adapter This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Telecommunications cabinet (EC002501)
Mounting levelFront side
Type of profile railNone
Number of doors1
Type of ventilationPassive
Width300 mm
Height420 mm
Depth90 mm
With roof plateyes
With front dooryes
With rear doorno
With sidewallyes
Demountableno
Scope of applicationInside
Compliant with ETSIno
MaterialSteel
Product codes
SAPDAB952
STK7550200
PLC7550200
GTIN/EAN5903953009425
Manufacturer part numberTeSM-110
Vendor material numberTESM-110
Basic information
Package measurements (L x W x H)95 x 350 x 430 mm
Package volume14.298 l
Package weight6 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121303
BrandTELMOR
VendorFINNSAT OY
