BROADBAND AMPLIFIER 5-65/85-1218MHz, 30dB, 107dBuV
Product code
7553254
Telmor's new DOCSIS 3.1 CATV amplifier is designed to meet today's CATV operator needs. Premium quality at an affordable price. The device's versatile adjustment options make it extremely easy to use in antennas of various sizes. The best possible signal quality and usability.

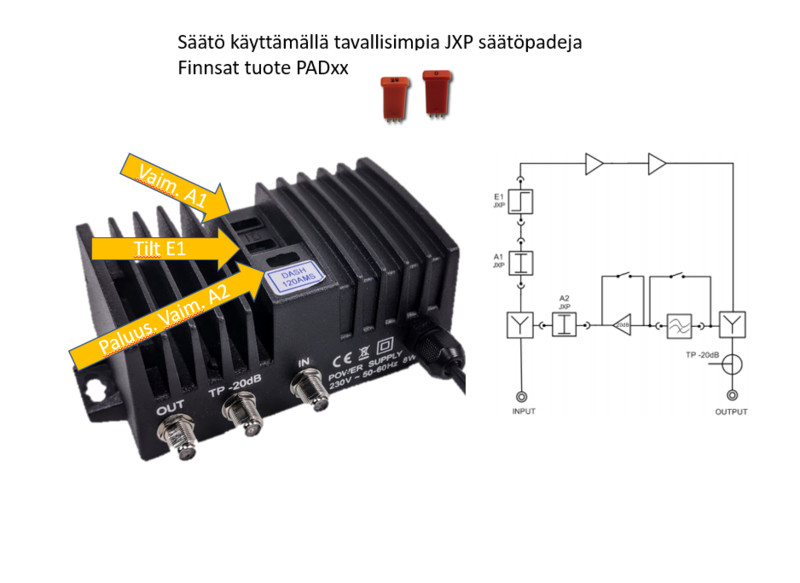

The amplifier's reliable power supply and premium-class surge protection ensure uninterrupted operation. The amplifier is adjusted using the most common JXP adjustment pads (Finnsat product PAD...)
The package does not include adjustment pads.
Local supply model. Designed for indoor installation. This product description is an automated translation of the original Finnish description.
The amplifier's reliable power supply and premium-class surge protection ensure uninterrupted operation. The amplifier is adjusted using the most common JXP adjustment pads (Finnsat product PAD...)
The package does not include adjustment pads.
Local supply model. Designed for indoor installation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CATV-amplifier (EC000423)
Connection typeF-Connector
Number of outputs1
Number of inputs1
ModelDistribution amplifier
Power adaptorBuilt-in (integrated)
Remote feedableno
Equalizeryes
Level adjusteryes
Return path channelActive
Frequency backward channel5 - 65 MHz
Return path channel boost20 dB
Gain VHF34 dB
Gain UHF34 dB
Product codes
SAPDAC017
STK7553254
PLC7553254
GTIN/EAN6410075532544
Manufacturer part numberDASH120AMS
Vendor material numberDASH120AMS
Basic information
Package measurements (L x W x H)105 x 162 x 80 mm
Package volume1.361 l
Package weight0.547 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221702
BrandTELMOR
VendorFINNSAT OY
