BROADBAND AMPLIFIER 5-65/85-1218MHZ, 30DB, REMOTE
Product code
7550356
Telmorin's DOCSIS 3.1 CATV amplifier is designed to meet today's CATV operator needs. Best quality at an affordable price. The device's versatile adjustment options make it extremely easy to use in antennas of various sizes. Optimal signal quality and usability.

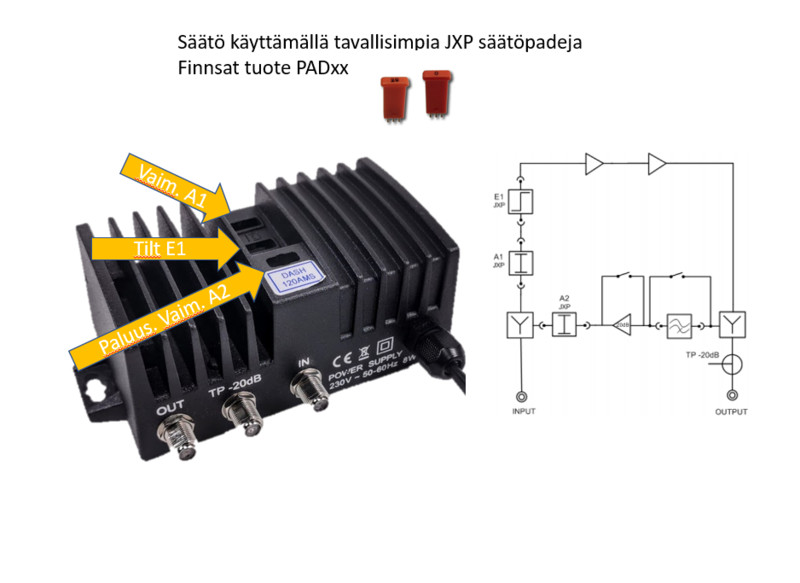

The device's reliable power supply and premium-class surge protection ensure uninterrupted operation. The amplifier is adjusted using the most common JXP adjustment pads (Finnsat product PAD...).
The package does not include adjustment pads.
Remote-fed model. Designed for indoor installation. This product description is an automated translation of the original Finnish description.
The device's reliable power supply and premium-class surge protection ensure uninterrupted operation. The amplifier is adjusted using the most common JXP adjustment pads (Finnsat product PAD...).
The package does not include adjustment pads.
Remote-fed model. Designed for indoor installation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)CATV-amplifier (EC000423)
Connection typeF-Connector
Number of outputs1
Number of inputs1
ModelDistribution amplifier
Power adaptorNone
Remote feedableyes
Equalizeryes
Level adjusteryes
Return path channelActive
Frequency backward channel5 - 65 MHz
Return path channel boost20 dB
Product codes
SAPDJB989
STK7550356
PLC7550356
Manufacturer part numberDASH120AMZ
Vendor material numberDASH120AMZ
Basic information
Package measurements (L x W x H)105 x 162 x 80 mm
Package volume1.361 l
Package weight0.547 kg
Base uniteach
Package units1
Package contents–
UNSPSC43221702
BrandTELMOR
VendorFINNSAT OY
