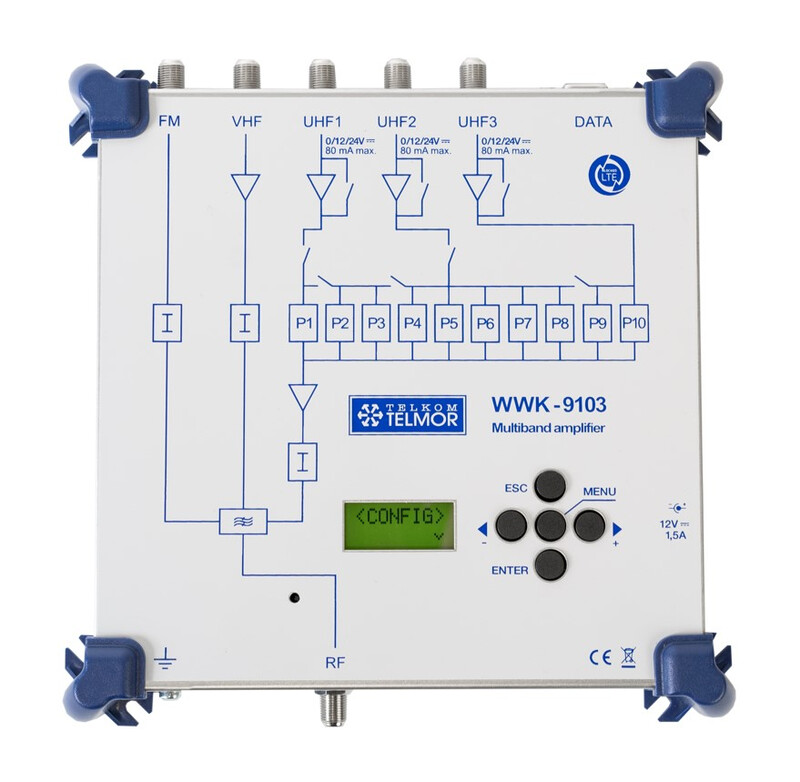

MAIN AMPLIFIER FM/VHF/3XUHF LTE700-READY

The Telmorin WWK9103 programmable main amplifier is designed for use in communal antenna systems where DVB-T/T2 signals from an antenna network are received. Suitable for use in semi-detached houses, row houses, apartment buildings, hotels, holiday centers, schools, and hospitals. It performs excellently even in locations with difficult reception conditions, such as when received signal levels vary or arrive from different directions.

The amplifier is designed to receive signals, select desired channels, and level and amplify their strengths. If the input level is too high, the user can bypass the input amplifier.

Compatible with DAB, FM, DVB-T/T2 (VHF and UHF). The device has 5 inputs: FM, VHF, UHF1, UHF2, UHF3 (UHF = 55 dB, VHF = 48 dB, FM = 32 dB).

Features:

• Designed for MATV and SMATV systems
• 3 UHF inputs
• Selective amplification of up to 10 UHF signals. Each of these filters can handle 1 to 6 channels (8 to 48 MHz)
• Built-in overvoltage and short-circuit protection
• LTE800 filters on UHF inputs
• LTE700 filtering optional

This product description is an automated translation of the original Finnish description.
