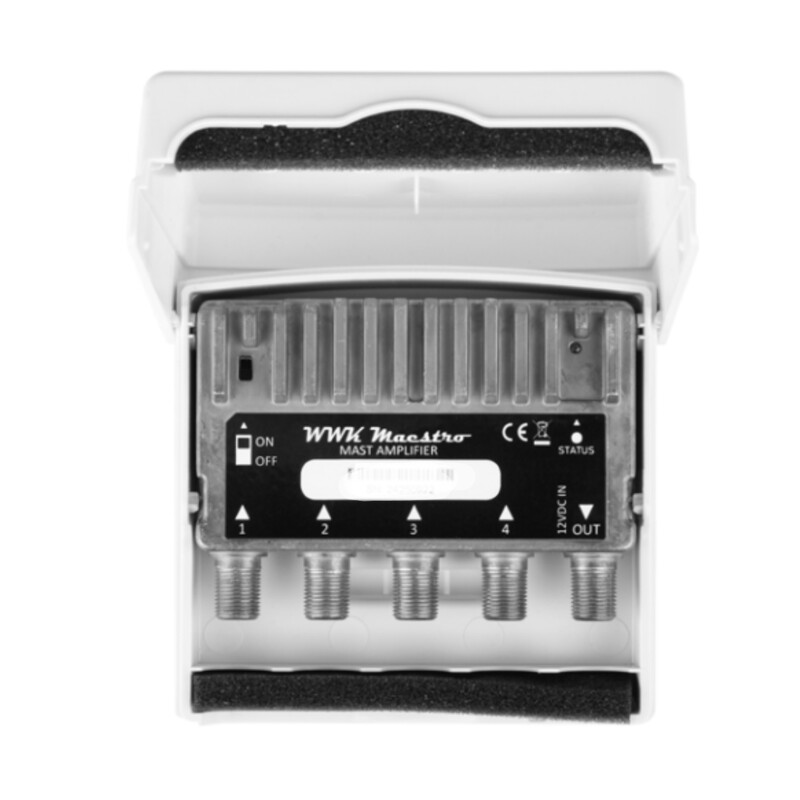

MAST AMPLIFIER SELF TUNED 4XUHF+VHF IN

WWK Maestro is a new-generation channel amplifier with 4 inputs for UHF, VHF, or combined antennas. UHF and VHF band signals are automatically and selectively tuned, then amplified using 32 digital filters. The filter selectivity is over 35 dB +/-1 MHz, which practically means perfect rejection of unwanted signals.

Thanks to the LTE700 filter, proper filtering of 5G/LTE/GSM signals is guaranteed even under difficult conditions (LTE mobile base station is located nearby and/or in the signal reception path).

The device features a built-in solution that improves the quality of low-power signals and enables reception even at voltages as low as 45 dBµV.

The premium programming system ensures a uniform output level for all programmed channels. Frequency power pre-correction neutralizes the effect of coaxial cables over longer distances.

The WWK-Maestro amplifier automatically programs itself by connecting the device to a 12V power source. Search and programming take approximately 40 seconds.

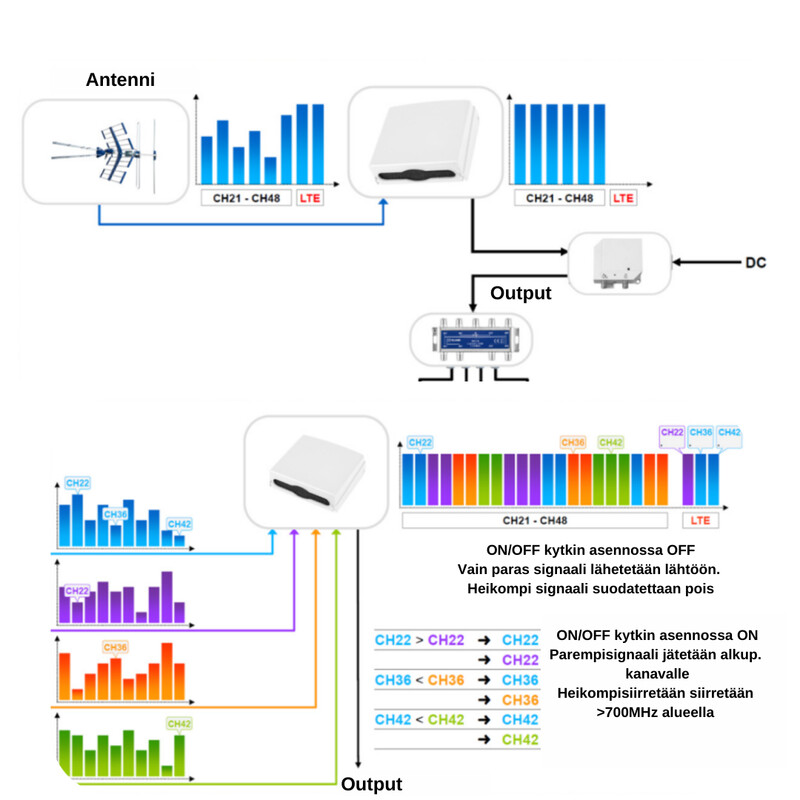

Maestro automatically programs the best signal to the output (OUT). If the same channel frequency comes from multiple inputs (IN 1-4), only one input signal is added to the output.

If desired, a weaker channel from a second input can be moved to the 694-862 MHz range by switching the ON/OFF switch to ON.

NOTE. The amplifier requires a 12V/250mA power source to operate.

Features:

• 4 UHF+VHF inputs
• Amplification 12-70 dB AGC, automatic gain control
• Maximum output level 93 dBµV
• F-connectors
• 32 digital channel filters with high selectivity and wide AGC range
• Automatic TV signal detection
• LTE700 filter
• Compact size and mast mounting enclosure
• Operating voltage 12V/350mA (Power supply not included in package)
