ETHERNET SWITCH 8PORT 10/100 INDUSTRIAL POE+

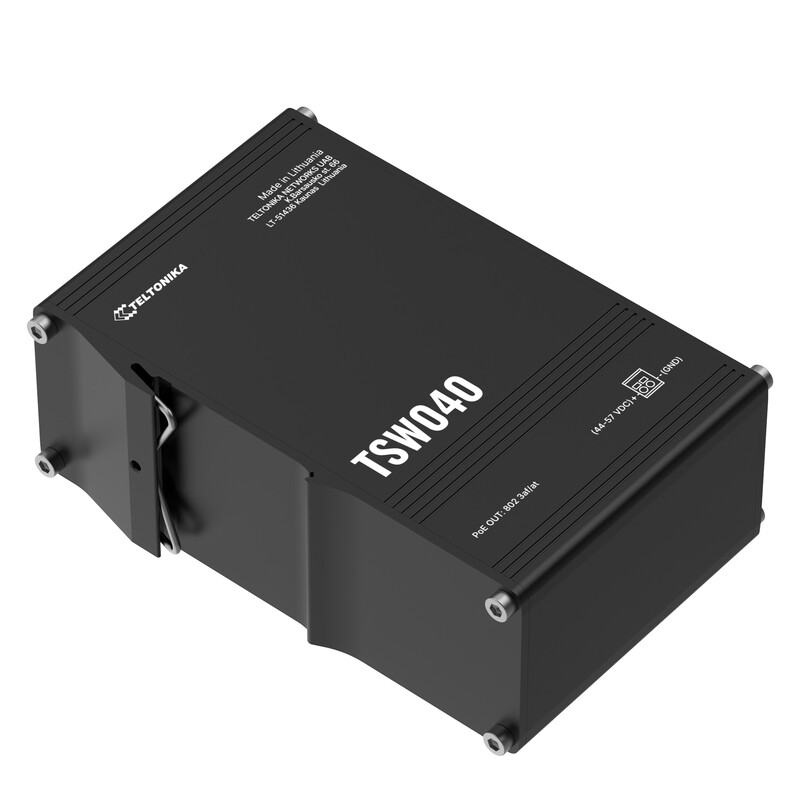

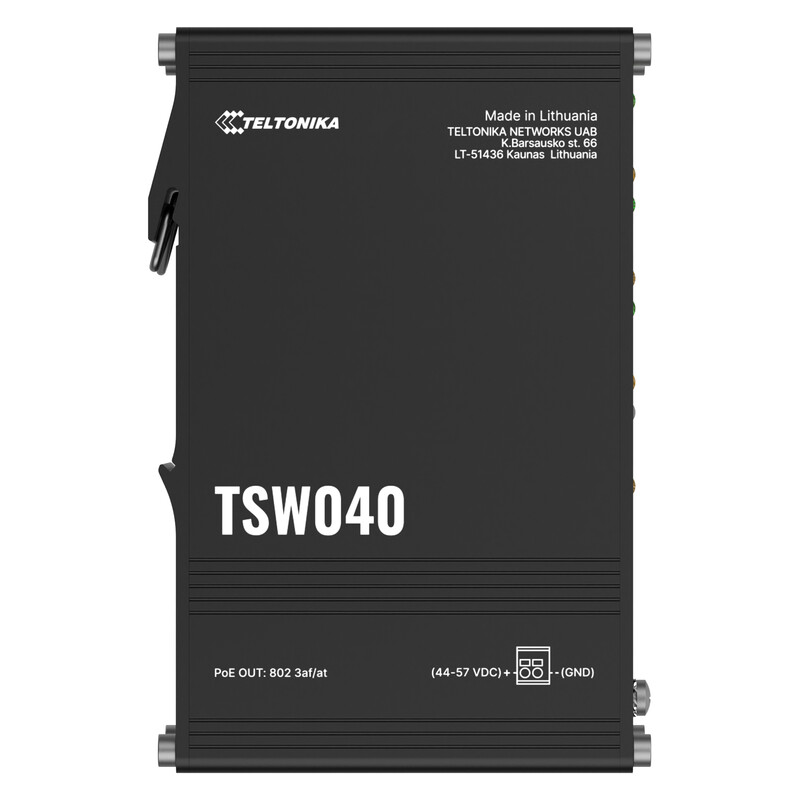

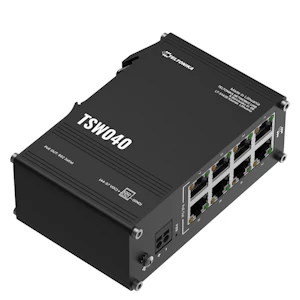

TSW040 is an industrial-grade switch with eight 10/100 Mbps RJ-45 ports. Each port supports PoE+ power delivery up to 30 W, with a total power budget of 240 W.

It connects devices to the network while simultaneously supplying power to devices such as surveillance cameras, access points, or other PoE devices—all over a single cable.

The durable aluminum housing, DIN-rail mounting, and wide operating temperature range make the TSW040 a reliable choice for demanding installations.

Applications

• Surveillance cameras and security systems, data and power over a single cable
• Building automation and lighting, easier cabling with PoE support
• Industrial networks, withstands cold, hot, and harsh environments
• Systems requiring space and cabling savings—one device handles both switching and power delivery

Features

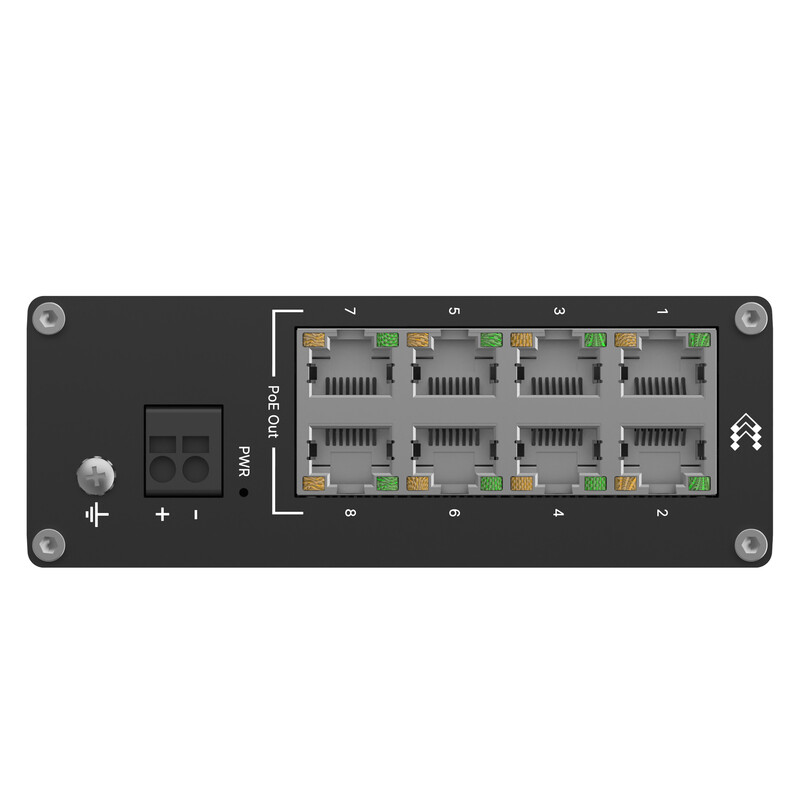

• 8 PoE+ ports (30 W per port, 240 W total)
• Delivers power directly to connected devices—no separate power supplies needed.
• Wide input voltage range (7–57 V DC), suitable for various power delivery solutions and ensuring flexible installation.
• 10/100 Mbps Ethernet with auto-MDI/MDIX, simple and compatible with various network devices.
• Jumbo frame support (up to 9216 bytes), improved performance for video and large data transfers.

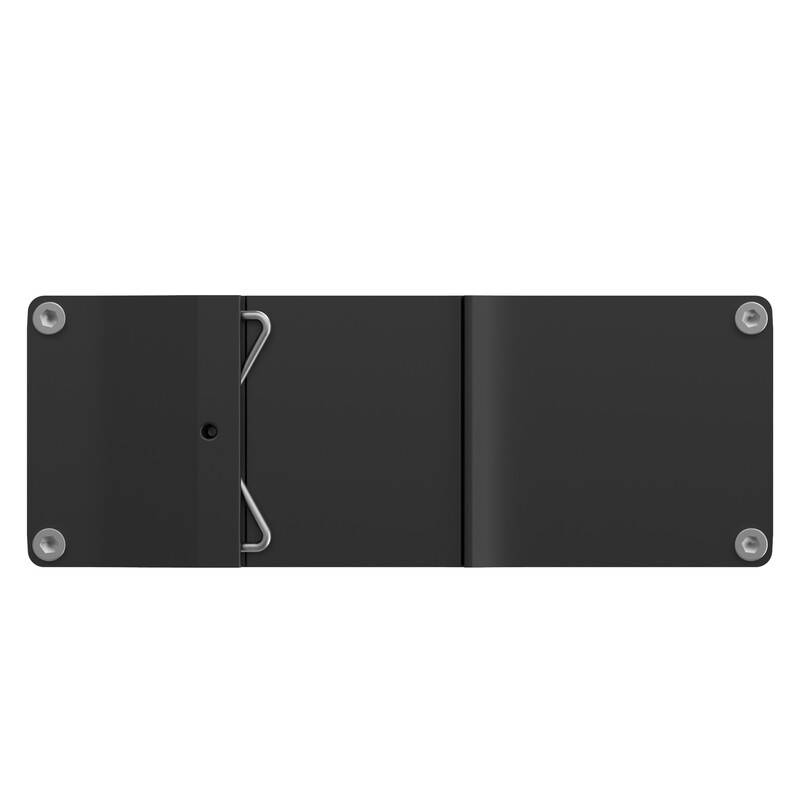

• Durable construction and mounting options: aluminum housing, DIN-rail mount, and IP30 protection.
• Wide operating temperature range (-40…+75 °C)
• Profinet-compatible version available upon special order

This product description is an automated translation of the original Finnish description.
