ROUTER 4G LTE CAT4 DUALSIM WIFI GPS

Teltonika RUT956 is a versatile industrial-grade 4G/LTE router with positioning, offering 4G LTE (Cat 4) connectivity, Wi-Fi support, and four Ethernet ports, along with Dual SIM redundancy.

Additionally, it features GNSS positioning, serial interfaces (RS232 and RS485), a USB port, and extensive I/O interfaces, making it an ideal solution for complex remote and automation applications.

Two SIM card slots ensure continuous connectivity—the device automatically switches to a backup connection if the primary network fails. The eSIM feature enables management of multiple operator profiles without physical SIM cards.

GNSS receives location data and synchronizes time, which is critical for mobile applications and systems requiring precise positioning.

The RUT956 is excellently suited for industrial and automation systems, transportation and logistics needs, the energy sector, oil and gas industries, and any location requiring both network connectivity and positioning.

Features

• 4G LTE (Cat 4), backward compatible with 3G/2G
• Download speed up to 150 Mbps
• Upload speed up to 50 Mbps
• Wi-Fi 2.4 GHz 802.11 b/g/n, operates in access point (AP) and station (STA) modes, up to 100 users
• 2 × SIM card slots (Mini-SIM, 2FF), automatic failover
• eSIM Router supports up to seven eSIM profiles, enabling storage and easy switching of multiple operator subscriptions
• GNSS positioning: GPS, GLONASS, Galileo, BeiDou (positioning and time synchronization)

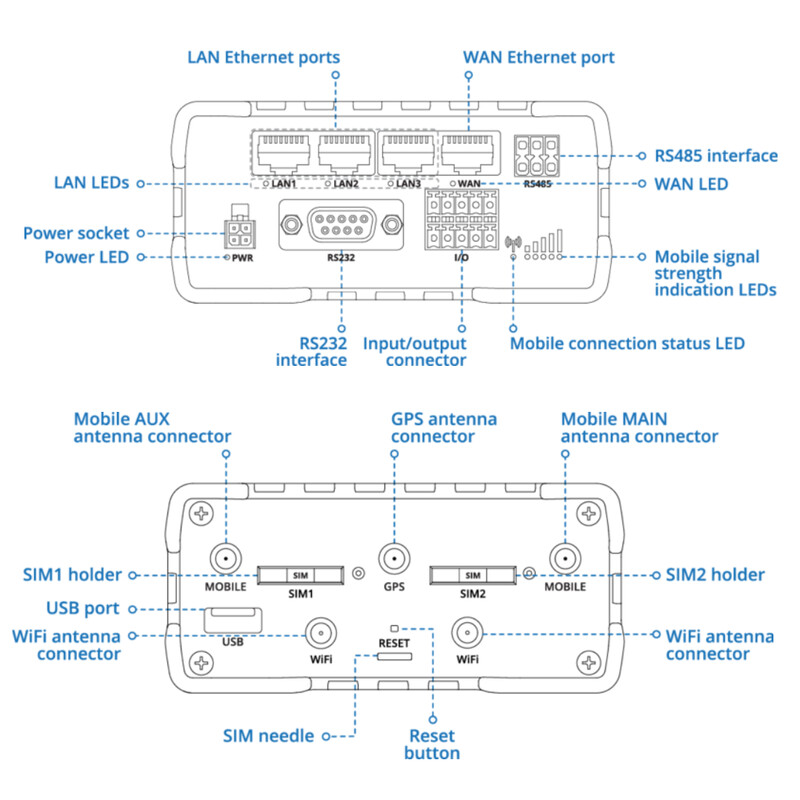

• Four Ethernet ports: 1 × WAN, 3 × LAN, 10/100 Mbps, Auto MDI/MDIX
• Serial interfaces: RS232 and RS485, USB 2.0 A port for external devices
• Extensive I/O interfaces: digital, analog, and relay outputs, isolated ports, event-based alerts via email, RMS, or SMS
• Passive PoE-in: the router can receive power via Ethernet cable
• Input voltage: 9–30 VDC
• 2 × SMA connectors for LTE antennas
• 1 × SMA connector for GNSS antenna
• 2 × RP-SMA connectors for Wi-Fi antennas
• Compatible with Teltonika’s RMS remote management system
• RutOS operating system provides comprehensive management, IoT, and security features (VPN, Modbus, MQTT, NTRIP, SNMP, etc.)
