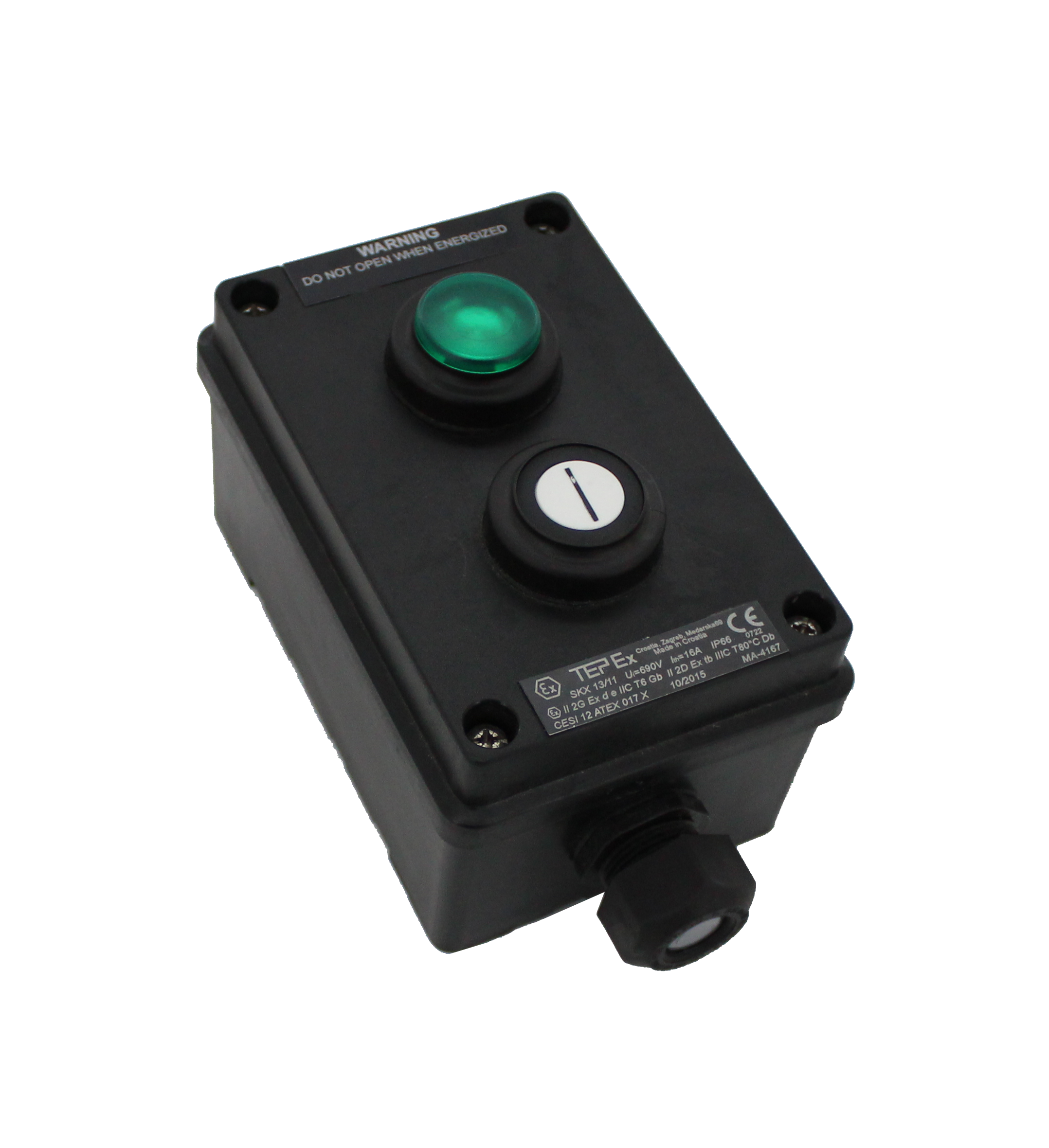

CONTROL UNIT EX SKX 13/11 IP66 I
Product code
2305115
ATEX pushbutton enclosure for explosive atmospheres
Features- Zone classification 1, 2, 21 and 22
- IP rating IP66
- Entry 1 x M25 gland seal (cable area 6-15 mm)
- Equipment category 2GD
- Marking: Ex II 2G Ex d e IIC T6 Gb / / Ex II 2D Ex tb IIIC T80°C Db
Product details
Technical specifications
Product class (ETIM)Explosion proof enclosure/housing (EC002503)
Width50 mm
Height150 mm
Depth117 mm
MaterialPlastic
Surface finishingOther
Degree of protection (IP)IP66
For Ex-zone gas1, 2
For Ex-zone dust21, 22
Product codes
SAPCCD466
STK2305115
PLC2305115
GTIN/EAN6438056339432
Manufacturer part numberSKX 13/11
Vendor material numberSKX 13/11
Basic information
Package measurements (L x W x H)180 x 120 x 130 mm
Package volume2.808 l
Package weight0.9 kg
Base uniteach
Package units1
Package contents–
UNSPSC39122216
BrandTEPEX
VendorTEP EX D.O.O.ZAGREB
