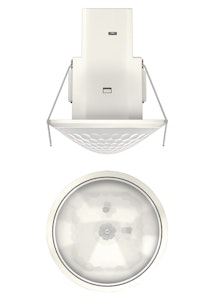

PRESENCE INDICATOR THERONDA S360-101 DE WH
Product code
2607657
Passive infrared presence detector for ceiling mounting
Circular detection area 360°, Ø 9 m (64 m²) This product description is an automated translation of the original Finnish description.
Circular detection area 360°, Ø 9 m (64 m²) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelPresence detector
Constant light controlno
HVAC-controlyes
Forced switch onno
Forced switch offno
Animal zoneno
Creep-under protectionno
Background monitoringno
Networkableyes
Scan angle360 °
Optimum mounting height2.5 m
Staircase light controlleryes
Bridging switchno
Max. reach sideways4 m
Max. presence range13 m²
Product codes
SAPCCX705
STK2607657
PLC2607657
GTIN/EAN7612748006058
Manufacturer part number2080565
Vendor material number2080565
Basic information
Package measurements (L x W x H)150 x 100 x 80 mm
Package volume1.2 l
Package weight0.225 kg
Base uniteach
Package units1
Package contents–
UNSPSC46171608
BrandTHEBEN
VendorTHEBEN OY
Documents (3)
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
Motion sensorYes
