MOTION DETECTOR PIRA T8 DE
Product code
2607750

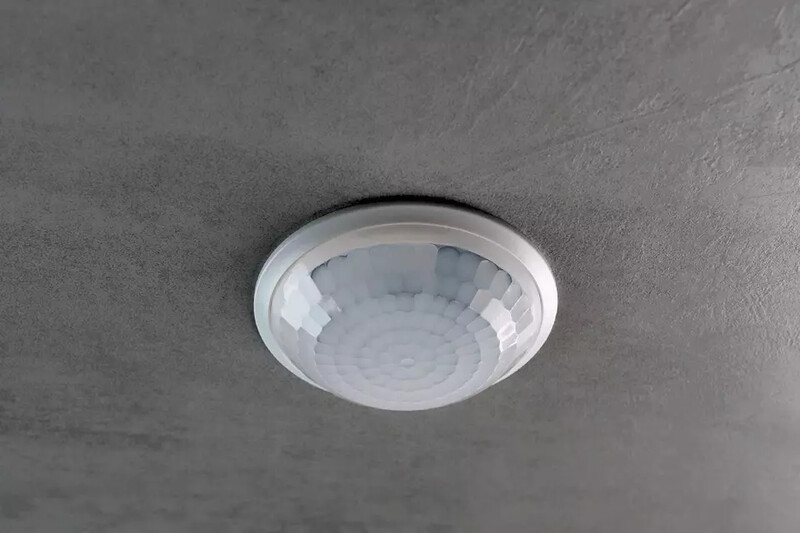

Passive infrared motion detector for ceiling mounting.
Features:
- round detection area 360°, max. Ø 8 m (50 m²)
- automatic lighting control based on motion and ambient light
- dual light sensing
- lighting channel A: relay, 230 V
- fully automatic operation
- adjustable light level switching threshold
- adjustable after-time
- ready for immediate use thanks to factory settings (light level switching threshold 100 lux, after-time 2 minutes).
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Constant light controlno
HVAC-controlno
Forced switch onno
Forced switch offno
Animal zoneno
Creep-under protectionno
Background monitoringno
Networkableno
Scan angle360 °
Optimum mounting height2.5 m
Staircase light controllerno
Bridging switchno
Max. reach sideways4 m
Max. presence range3 m²
Product codes
SAPDJE113
STK2607750
PLC2607750
GTIN/EAN4003468102138
Manufacturer part number1030200
Vendor material number1030200
Basic information
Package measurements (L x W x H)80 x 80 x 73 mm
Package volume0.467 l
Package weight0.09 kg
Base uniteach
Package units1 / 64
Package contents–
UNSPSC46171608
BrandTHEBEN
VendorTHEBEN OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.4828
GWP, uniteach
Source for GWP dataEandoX
