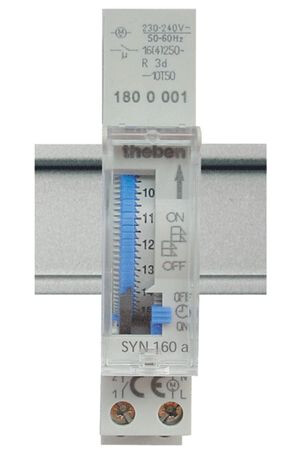

TIME SWITCH MECHANICAL SYN 160A DIN
Product code
2607722
Theben SYN 160 A is an analog timer.
Features
- 1 channel
- Daily schedule
- No backup operation
- 96 switching blocks
- Network synchronized
- Shortest switching time: 15 minutes
- Screw terminals
- Manual switch with 3 positions: always on/auto/always off This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Analogous time switch for distribution board (EC002304)
Mounting methodDIN rail
Number of channels1
Supply voltage230-230 V
Voltage type (supply voltage)AC
Frequency supply voltage50-50 Hz
60 min programno
24 h programyes
Weekly programno
Annual programno
Mains synchronousyes
Quartz controlledyes
Contact typeNormally open contact (NO)
Shortest switching time channel 115 min
Program shift divide 115 min
Automatic switching summer/winter timeno
Product codes
SAPAAR139
STK2607722
PLC2607722
GTIN/EAN4003468161609
Manufacturer part number1600001
Vendor material number1600001
Basic information
Package measurements (L x W x H)99 x 69 x 20 mm
Package volume0.137 l
Package weight0.082 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39122209
BrandTHEBEN
VendorTHEBEN OY
