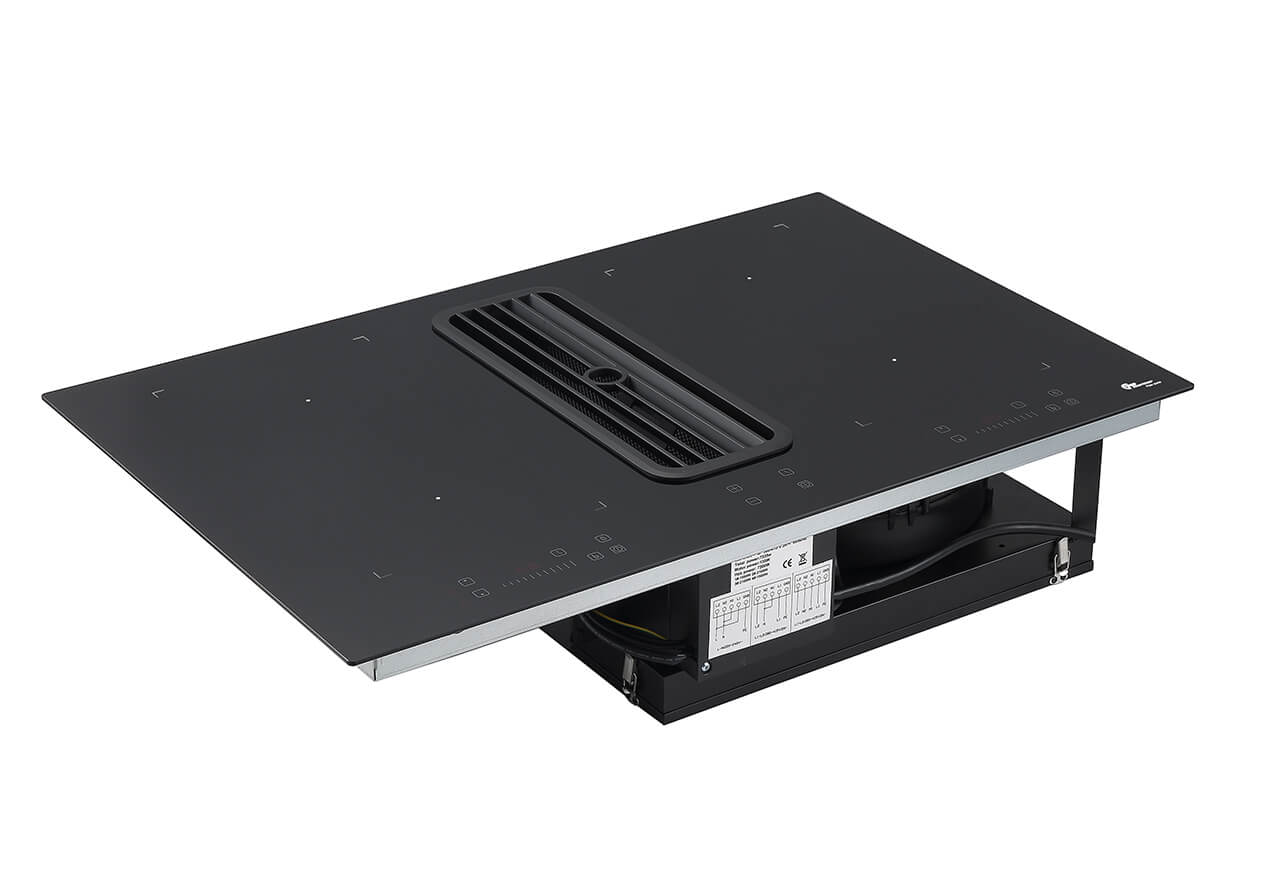

DOWNDRAFT HOOD THERMEX TYPHOON FLEX 80CM BLACK
Product code
7913694
Thermex Typhoon II Flex Zone is a combination of powerful induction cooktop and range hood that enables compact installation as its name suggests. The product is extremely easy to install by cutting a hole of the required size into the installation surface and lowering the unit into the opening from above onto the surface. The installation height of the product is only 205 mm, and thanks to its clever design, it takes up minimal space from the base cabinet. The unit can be installed in a base cabinet as narrow as 800 mm. The induction cooktop of the Typhoon Compact features powerful cooking zones with nine-level temperature control and Boost function. The cooking zones on both sides can be combined into one large cooking area, allowing cooking with large pots and pans. The range hood motor is a DC motor, making it highly energy efficient, and the entire product has an energy class of A+. The range hood's grease capture efficiency reaches up to 96.3% when operated at speed three. The grease collection tray is easy to remove, and the grease filter can be easily accessed from underneath. The grease filter can be washed in a dishwasher. If you install the Typhoon in recirculation mode, you can purchase the installation kit (535.21.1200.9), which includes an activated carbon filter. The exhaust outlet on the device is located beneath the right rear cooking plate, making ducting conveniently possible to the rear of the unit. Thermex Typhoon II Flex Zone revolutionizes cooking convenience and allows you to design your kitchen exactly as you desire.
Features:
Installation: Integrated into the surface
Color: Black
Control: Touch controls
Range hood speeds: 3 operating speeds
Range hood air flow min: 225 m³/h
Range hood air flow max: 623 m³/h
Noise level: 52-73 dB(A)
Grease filter: Metal grease filter
Exhaust outlet size: 220x90 mm
Number of cooking zones: 4
Cooking zone dimensions and power: Left upper: 190x210 mm 1800 W
Left lower: 190x210 mm 1800 W
Right upper: 190x210 mm 1800 W
Right lower: 190x210 mm 1800 W
Bridge function on both sides: 2800 W
Energy class A+
Optional accessory: Activated carbon filter 535.21.8700.9
Optional accessory: 535.21.1200.9 Installation kit 1 for room recirculation (includes activated carbon filter)
Optional accessory: 535.21.1280.9 Installation kit 4 for room recirculation (includes Long life filter)
Optional accessory: 535.21.1285.9 Installation kit 5 for room recirculation (includes activated carbon filter) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cooker hood (EC000655)
ConstructionIntegrated
Primary colour housingBlack
Housing materialSteel
Type of air conductionAir extraction
Voltage230 - 400 V
Total height205 - 205 mm
Width805 mm
Depth520 mm
With intensive power stepyes
Type of switchTouch control button
Type of lightingOther
Energy efficiency classA+
Lighting efficiency classA
Grease filtering efficiency classF
Product codes
SAPDLH251
HPAC7913694
PLC7913694
GTIN/EAN5703347532252
Manufacturer part number525.21.1482.2
Vendor material number525.21.1482.2
Basic information
Package measurements (L x W x H)575 x 870 x 275 mm
Package volume137.569 l
Package weight22 kg
Base uniteach
Package units1
Package contents–
UNSPSC76111605
BrandTHERMEX
VendorTHERMEX SCANDINAVIA A/S
