EMERGENCY LUMINAIRE NINA EM UNIT AUTO TEST 3H BATT

Nina 30M is an emergency escape route sign light with an independent battery and both manual and automatic (SelfTest) test functions. The light provides 3 hours of emergency illumination during a power outage and is suitable for use in both continuous (maintained) and emergency-only (non-maintained) modes. The viewing distance is up to 30 meters, and the product meets the requirements of DIN EN 1838 and DIN 4844-1 standards. Easy to install: a comprehensive mounting kit for ceiling, wall, and 90° mounting is included, along with four interchangeable pictograms (up, down, left, right). The device status is clearly indicated by an LED indicator light. The housing contains an efficient 3.2 V LiFePO4 battery (1.5 Ah) with a charging time of 24 hours and a service life of up to 50,000 hours (L80). Product Specifications

• Viewing distance: 30 m
• Luminous flux (maintained): 70 lm
• Luminous flux (emergency): 16 lm
• Efficiency: 14 lm/W
• Color rendering index: CRI ? 80
• Color temperature: 5700 K
• Chromaticity tolerance (MacAdam): 5 SDCM
• Operating time: 3 h (LiFePO4 battery 3.2 V / 1.5 Ah)
• Charging time: 24 h
• Input power: 5.1 W (PF 0.5)
• Standby power consumption: 0.25 W
• Charging power: 1.1 W
• Dimming: Not dimmable
• Mounting: Ceiling, wall, and 90° mounting, mounting bracket included
• Included: 4 pictograms (? ? ? ?)
• Protection rating: IP40
• Impact resistance: IK03
• Service life: L80 50,000 h (25 °C)

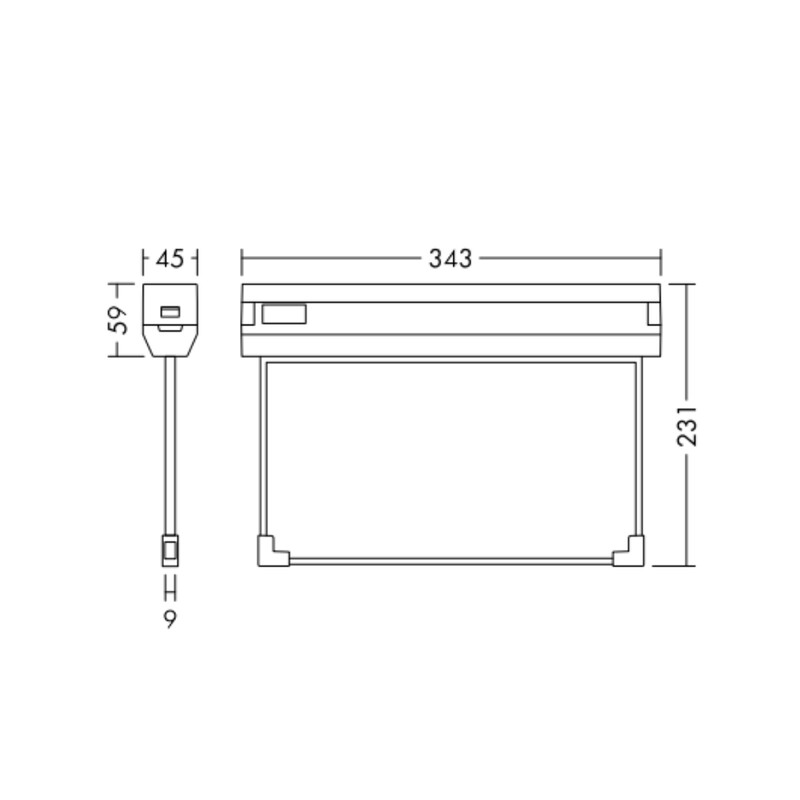

• Dimensions: 343 × 45 × 231 mm
• Weight: 0.98 kg
• Testing: Manual / automatic (SelfTest)
• Operating mode: Maintained / non-maintained.

This product description is an automated translation of the original Finnish description.
