INLET ROFLEX 150. GRUMMET FOR PIPES.

ROFLEX 150 steam barrier penetration sleeve for pipes 120-170 mm, can be moved back and forth, quick to install. Temperature resistance -40°C to +120°C. Pack of 3 pieces.

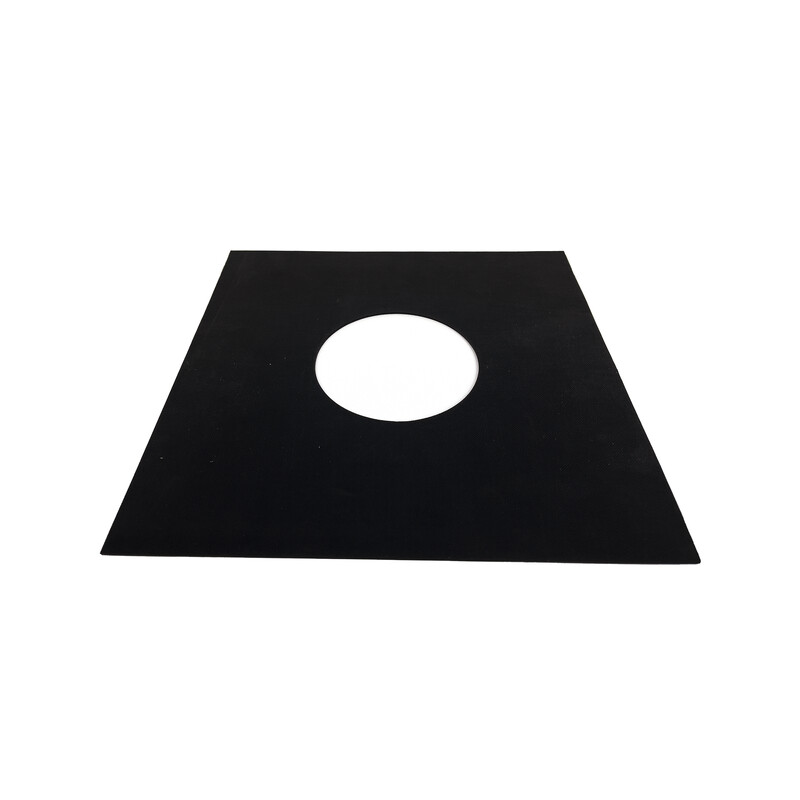

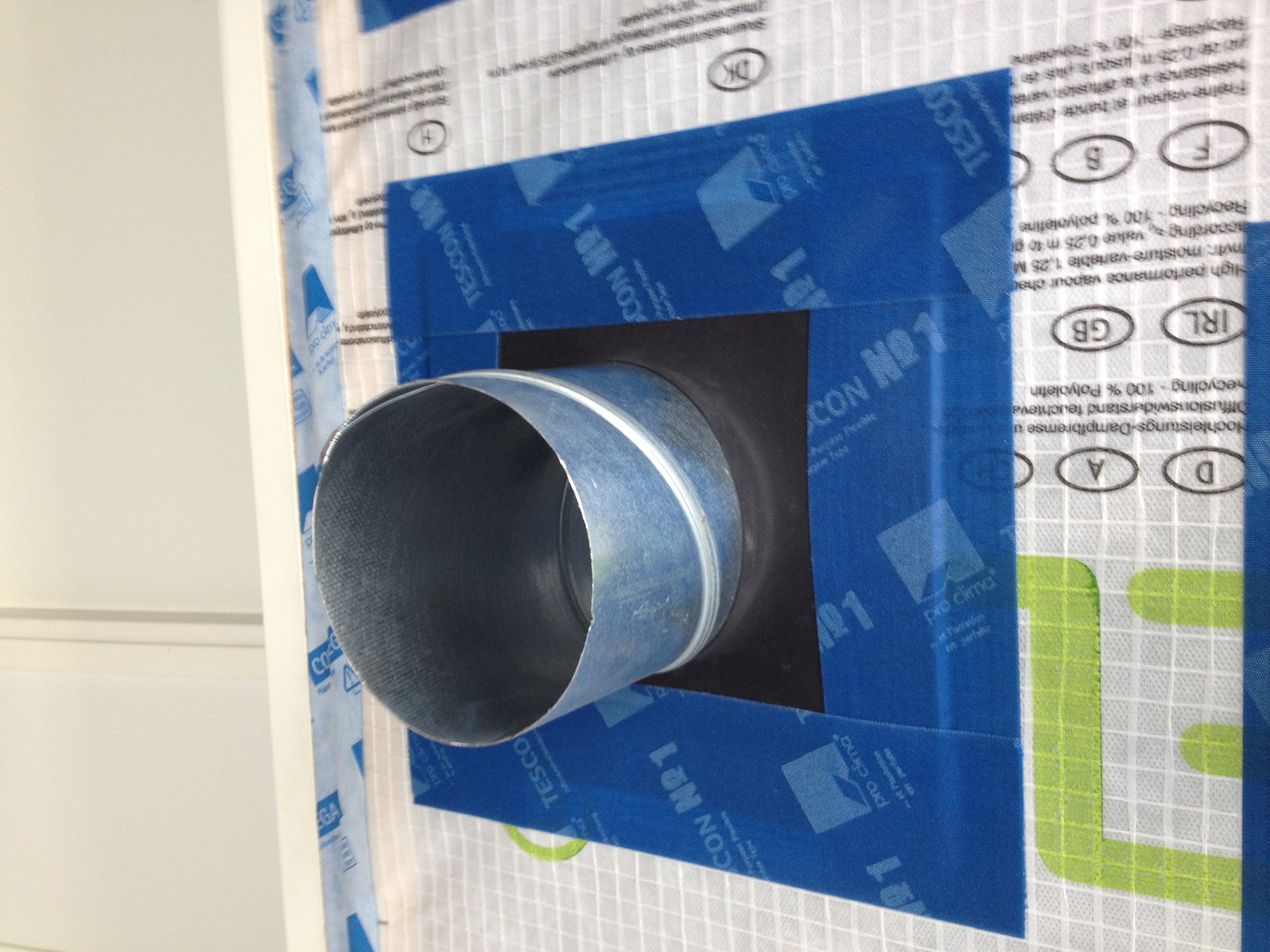

ROFLEX is a diffusion-tight penetration sleeve made of flexible EPDM rubber for sealing penetrations in HVAC pipes. The sleeve is secured to its base with sealing tape.

The smallest ROFLEX sleeve has a diameter of 14 cm and is suitable for pipes 30–50 mm thick. The largest sleeve has a diameter of 50 cm and can accommodate pipes 270–320 mm thick.

KAFLEX and ROFLEX sleeves are available for all pipes and cables with diameters from 6 to 320 mm. The system provides complete protection for structures against moisture load through penetrations in exterior walls and ceilings.

Applications

• Pro Clima INTELLO and SOLITEX fabrics
• PE films (vapor barrier films)
• Wood surfaces
• Wind barriers
• Coated PU insulation boards

Benefits

• Permanently air-tight seal
• Stretchable EPDM rubber sleeve
• Easy and quick to install
• Waterproof
• Suitable for outdoor use

Technical specifications

• Material: EPDM rubber
• Color: black
• Installation temperature: from -10 °C (recommended +10 °C)
• Heat resistance: long-term -40 °C to +150 °C

This product description is an automated translation of the original Finnish description.
