FOLDING SCAFFOLD TIKLI JUMBO 178X2 75X185 CM 2,5 m

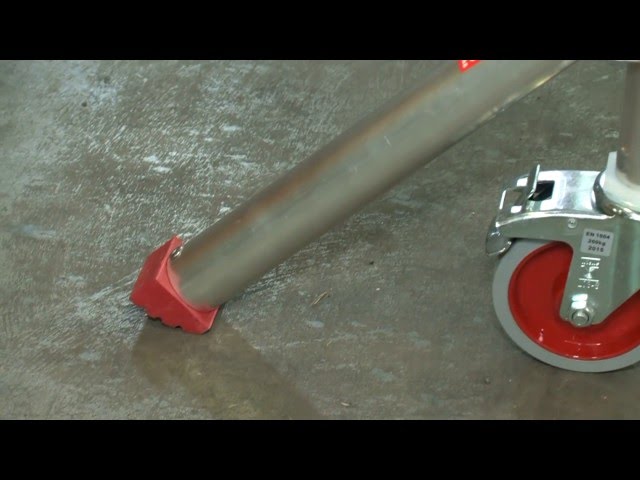

Tikli Jumbo 178x2P is a user-friendly professional scaffolding set designed for construction site use. The set includes two scaffold frames stacked on top of each other. When raised to a maximum height of 2.5 meters, accounting for guardrails, the working height is 4.5 meters, or it can be used as two separate base frames at different work positions. Includes 2 Tikli Jumbo 178 assembly frames with lockable 12.5 cm wheels, work platforms (0.6 x 1.8 m), one with a hatch, four support legs of 2 m each, an internal ladder for access, and the SARJA+ connecting set (kick plates, diagonal braces, three horizontal guardrail bars, four connecting clips, and eight sockets). Complies with VNa 205/2009 regulations for construction site use. For platform heights of 1–2.5 m, a minimum of 0.5 meter support legs are required according to stability requirements; for higher platform heights, 2-meter support legs are needed, which are included with the set. The 50 mm aluminum tube profile with a 2 mm wall thickness makes the frame sturdy and durable. Lockable fixed wheels (4 pcs) keep the frame firmly in place, and the frame is very easy and lightweight to move. The height of the work platforms can be easily adjusted to ten different levels, taking guardrail requirements into account. The maximum platform height of the base unit is 1.8 m, maximum working height is 3.8 m, width is 1.85 m, and depth is 0.74 m. The transport dimensions of the 178x2 set are 2.50 x 0.70 x 0.90 m, and the weight is 85 kg. Also consider the same series sets 178L+2+1 and 178L+2+1. Tip: If you wish to expand the set later, you can purchase additional accessories individually. The scaffolding series complies with EN1004 standard, scaffolding class 3: maximum load capacity 200 kg/m². According to VNa 205/2009 regulations, use a safe access solution to the work platform on construction sites: an internal lockable ladder accessed through the hatch. High-quality scaffolding series suitable for professional construction site use. Tip: If you already have the base frame Tikli Jumbo 178, you can upgrade it to the 178x2 set by selecting the Tikli Jumbo 178 Raksaset and SARJA+ connecting set. For demanding applications when raised, we recommend purchasing 2-meter support legs (501394088), which are included with the new 178x2 set. Shorter 0.5-meter support legs (500891929) are well suited when using the set as two separate frames. This product description is an automated translation of the original Finnish description.
