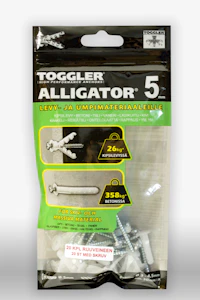

ALLIGATOR AF5-20 5MM AND SCREWS 20PCS
Product code
1314000
ALLIGATOR AF5 fastener is suitable for use in almost all substrate materials, including gypsum board, concrete, brick, and multi-layer constructions such as tiled gypsum board. The 5mm fastener is ideal for common light-duty attachments to sheet and solid materials. The fastener can be used to hang boards, lights, smoke detectors, light shelves, and brackets.
The fastener is easy to install and requires no special tools or screws: Drill a 5mm hole, insert the fastener into the hole, and turn the screw. In solid materials, the screw forms the fastener tightly to fit the hole along its entire length and completely around its 360° circumference. In sheet and hollow structures, the fastener additionally opens up behind the substrate to form a strong wedge.
Various screw sizes can be used with the fastener. When using stainless steel screws, it is also suitable for outdoor use.
Package includes 20 fasteners and zinc-plated 4x35mm pan head screws.
Minimum screw length: 30mm + thickness of the item to be attached.
Suitable screw: 3 - 4.5mm diameter. Recommended screw: 4mm diameter.
Minimum material thickness: 6.4mm.
Drill hole: 5mm diameter. Minimum depth in solid materials: 35mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)All-purpose plug (EC000089)
ModelExpanding plug
Length26 mm
Drill hole diameter5 mm
Drill hole depth35 mm
MaterialPlastic
ColourOther
Product codes
SAPCFP104
STK1314000
PLC1314000
GTIN/EAN6416781003507
Manufacturer part numberAF5-20
Vendor material numberAF5-20
Basic information
Package measurements (L x W x H)190 x 100 x 10 mm
Package volume0.19 l
Package weight0.053 kg
Base unitBag
Package units1 / 10
Package contents20 each
UNSPSC31161526
BrandTOGGLER
VendorOY RENHOLM & CO AB
Documents (4)
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
