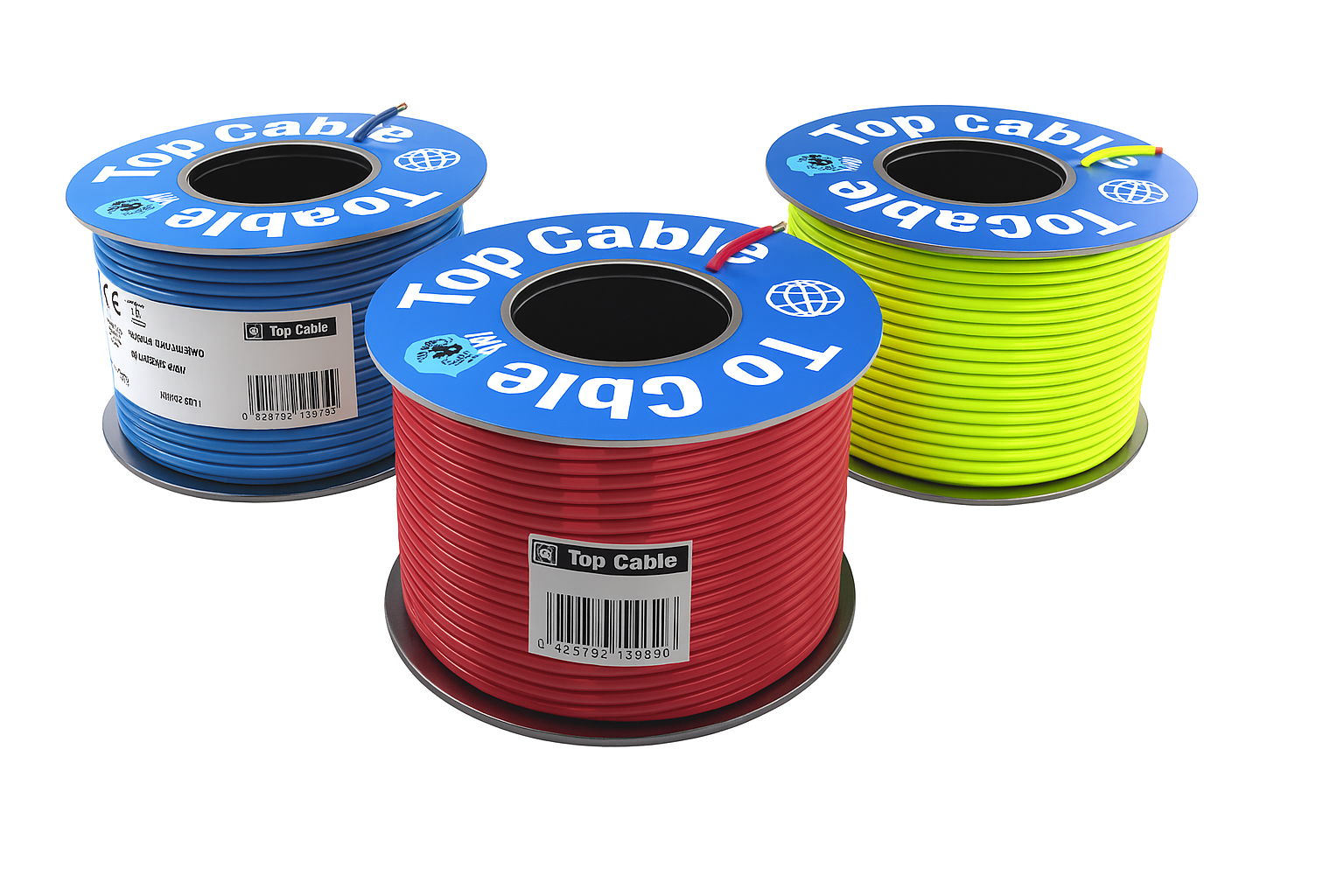

INSTALLATION LEAD H07V2-K 1,5 Y/G D100 Eca
Product code
0415731
MKEM 90°C is a harmonized (H07V2-K) fine-stranded (class 5) conductor intended for fixed installation in conduit and for internal wiring of devices and equipment. The conductor is PVC insulated and manufactured in accordance with standards EN 50525-2-31 / UL 758 / CSA C22.2 / British Standard 6231.
Features- operating temperature: -40 °C...+90 °C (UL/CSA +105 °C)
- rated voltage: U0/U = 450/750V (UL 600V / CSA 600/1000V)
- UL, CSA, and CPR approval
- class: Eca
- DoP no.: CPR TC010
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Nominal cross section conductor1.5 mm²
Conductor categoryClass 5 = flexible
Number of cores1
Core colourGreen/yellow
Screenno
Material outer sheathPolyvinyl chloride (PVC)
Colour outer sheathOther
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Outer diameter approximate3 mm
Nominal voltage U0450 V
Nominal voltage U750 V
Product codes
SAPCJT315
STK0415731
PLC0415731
GTIN/EAN8428722131864
Manufacturer part number171V001MRL100
Vendor material number171V001MRL100
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume0.024 l
Package weight0.022 kg
Base unitMeter
Package units100 / 500 / 19200
Package contents–
UNSPSC26121524
BrandTOP CABLE
VendorTOP CABLE S.A
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1408
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
